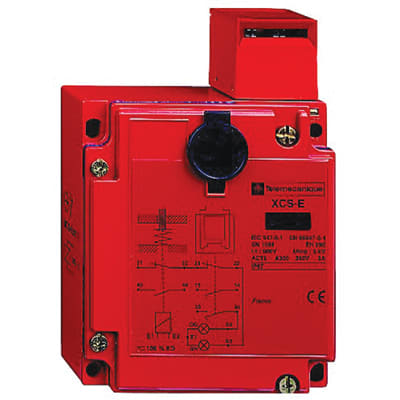

XCSE7313 | Schneider Electric Telemecanique Preventa Safety Interlock Switch Metal, 24/48 VDC, 3-Pole
- Regular price
- $602.00
- Sale price
- $602.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XCSE7313
Description
The Schneider Electric XCSE7313 is a heavy-duty safety interlock switch engineered for guard door monitoring in demanding industrial environments. This model provides secure solenoid-based locking and durable metal construction to support high-reliability machine safety functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Sensors & Switches |
| Part Number | XCSE7313 |
| Subcategory | Limit Switch |
| Voltage Rating | 24/48 VDC |
| Amperage Rating | 6 A |
| Power Rating | 10 VA |
| Number of Poles | 3 |
| Hub Size | 1/2 in NPT |
| Mounting Type | Threaded |
| Enclosure Type | NEMA 4/4X/12 / IP67 |
| Material | Metal housing |
| Type | Safety Detection / Interlock |
| Dimensions | 3.86 in W × 5.75 in H × 1.73 in D |
| Series | XCSE |
| IP Rating | IP67 |
| Min Operating Temperature | –25 °C |
| Max Operating Temperature | +40 °C |
| Contact Configuration | Key-actuated and solenoid-actuated contact sets |
| Application | Guard door safety and machine access control |
Information About XCSE7313
The XCSE7313 is part of Schneider Electric’s Telemecanique Preventa XCSE safety interlock family, designed for secure guard-door monitoring in industrial machinery. The device incorporates a rugged metal enclosure, a solenoid-locking mechanism, and threaded NPT entry points to ensure long-term durability in harsh operating conditions. Its design provides compatibility with a wide range of safety relays and control units, enabling flexible integration in both new and retrofit safety architectures. The switch is commonly used in applications requiring tamper-resistant access control, machine safeguarding, and compliance with stringent industrial safety standards.
Key Features:
- Solenoid-controlled locking design: provides guard-door retention through an energized or de-energized unlock mechanism depending on system requirements.
- Heavy-duty metal enclosure: ensures long service life and withstands washdown, dust exposure, and corrosive industrial environments.
- 24/48 VDC operating range: supports standardized control voltages for integration into diverse safety circuits.
- Multi-contact architecture: includes key-triggered NO/NC contacts and solenoid-triggered auxiliary contacts for layered safety feedback.
- Threaded 1/2 in NPT hubs: allow secure conduit attachment and strain-relieved wiring in industrial installations.
- IP67 and NEMA 4/4X/12 protection: offers complete resistance against water ingress, particulate contamination, and outdoor environmental exposure.
- Compact rectangular form factor: fits efficiently on machine frames, guards, and access points with limited mounting space.
- Compliance with major safety standards: supports use in systems requiring Category 4, PL e, and SIL 3 performance levels.
The XCSE7313 delivers the reliability and precision required for high-integrity guard-door safety interlocking in demanding industrial environments.
