XENPAK-10GB-SR | Cisco Short Haul Transceiver Module
- Regular price
- $174.00
- Sale price
- $174.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

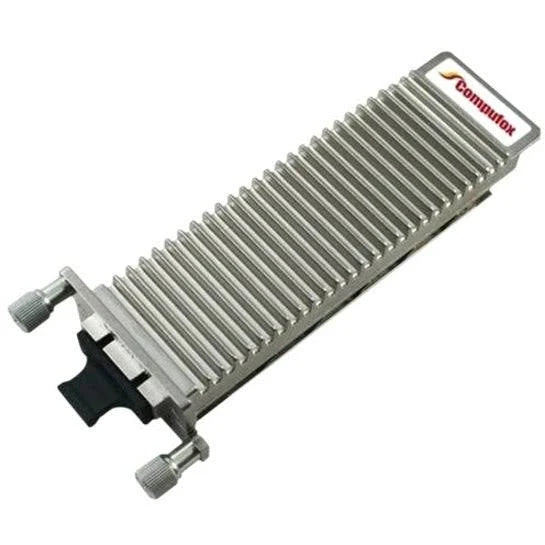

Product Description P/N: XENPAK-10GB-SR
Description
The Cisco XENPAK-10GB-SR is a high-performance, hot-swappable optical transceiver designed for 10 Gigabit Ethernet applications over multimode fiber.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | Optical Transceivers |
| Part Number | XENPAK-10GB-SR |
| Subcatecory |
10 Gigabit Ethernet, Short Reach (SR)
|
|
Device Type
|
XENPAK transceiver module |
| Form Factor |
Plug-in module
|
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SR |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 984 ft |
| Compliant Standards | IEEE 802.3ae |
| Interfaces | 1 x Ethernet 10GBase-SR - SC multi-mode x 2 |
| Compatible Slots | 1 x XENPAK |
| Width | 1.4 in |
| Depth | 4.8 in |
| Height | 0.7 in |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Weight | 0.77 lbs |
Information About XENPAK-10GB-SR
The XENPAK-10GB-SR is a high-speed optical transceiver module from Cisco, designed for short-reach 10 Gigabit Ethernet deployments over multimode fiber. It supports data transmission over distances up to 300 meters using OM3 fiber and operates on an 850 nm wavelength, making it ideal for data centers, enterprise wiring closets, and short-distance aggregation layers. Built to plug into standard XENPAK slots, it enables scalable, hot-swappable connectivity on Cisco switching and routing platforms.
Key Features:
- Type: 10GBASE-SR Optical Transceiver Module
- Series: Cisco XENPAK Transceivers
- Category: 10 Gigabit Ethernet Module
- Subcategory: Short Reach (SR) Multimode Fiber Optics
- Functionality: Provides 10-Gigabit Ethernet connectivity over multimode fiber for short-haul applications
- Port Count: 1 x 10 Gigabit Ethernet port (SC duplex connector)
- Interface Type: Pluggable optical module with 850 nm laser
- Platform Compatibility: Compatible with Cisco Catalyst 6500 Series, 7600 Series, and select routing platforms
- Transmission Distance: Up to 300 meters over OM3 fiber
- Wavelength: 850 nm (short wavelength)
- Fiber Type: Multimode fiber (MMF)
- Standards Compliance: IEEE 802.3ae 10GBASE-SR, RoHS
- Hot-Swappable: Yes
- Form Factor: XENPAK (modular, hot-pluggable)
- Operating Temperature Range: 0 °C to +70 °C
- Construction: Durable optical module for short-range, high-speed Ethernet links
The XENPAK-10GB-SR delivers cost-effective, high-bandwidth connectivity for short-distance 10GE links in enterprise and data center environments. Its robust design and wide compatibility with Cisco networking gear make it a practical solution for modern fiber-based infrastructures.
Description
The Cisco XENPAK-10GB-SR is a high-performance, hot-swappable optical transceiver designed for 10 Gigabit Ethernet applications over multimode fiber.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | Optical Transceivers |
| Part Number | XENPAK-10GB-SR |
| Subcatecory |
10 Gigabit Ethernet, Short Reach (SR)
|
|
Device Type
|
XENPAK transceiver module |
| Form Factor |
Plug-in module
|
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SR |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 984 ft |
| Compliant Standards | IEEE 802.3ae |
| Interfaces | 1 x Ethernet 10GBase-SR - SC multi-mode x 2 |
| Compatible Slots | 1 x XENPAK |
| Width | 1.4 in |
| Depth | 4.8 in |
| Height | 0.7 in |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Weight | 0.77 lbs |
Information About XENPAK-10GB-SR
The XENPAK-10GB-SR is a high-speed optical transceiver module from Cisco, designed for short-reach 10 Gigabit Ethernet deployments over multimode fiber. It supports data transmission over distances up to 300 meters using OM3 fiber and operates on an 850 nm wavelength, making it ideal for data centers, enterprise wiring closets, and short-distance aggregation layers. Built to plug into standard XENPAK slots, it enables scalable, hot-swappable connectivity on Cisco switching and routing platforms.
Key Features:
- Type: 10GBASE-SR Optical Transceiver Module
- Series: Cisco XENPAK Transceivers
- Category: 10 Gigabit Ethernet Module
- Subcategory: Short Reach (SR) Multimode Fiber Optics
- Functionality: Provides 10-Gigabit Ethernet connectivity over multimode fiber for short-haul applications
- Port Count: 1 x 10 Gigabit Ethernet port (SC duplex connector)
- Interface Type: Pluggable optical module with 850 nm laser
- Platform Compatibility: Compatible with Cisco Catalyst 6500 Series, 7600 Series, and select routing platforms
- Transmission Distance: Up to 300 meters over OM3 fiber
- Wavelength: 850 nm (short wavelength)
- Fiber Type: Multimode fiber (MMF)
- Standards Compliance: IEEE 802.3ae 10GBASE-SR, RoHS
- Hot-Swappable: Yes
- Form Factor: XENPAK (modular, hot-pluggable)
- Operating Temperature Range: 0 °C to +70 °C
- Construction: Durable optical module for short-range, high-speed Ethernet links
The XENPAK-10GB-SR delivers cost-effective, high-bandwidth connectivity for short-distance 10GE links in enterprise and data center environments. Its robust design and wide compatibility with Cisco networking gear make it a practical solution for modern fiber-based infrastructures.
