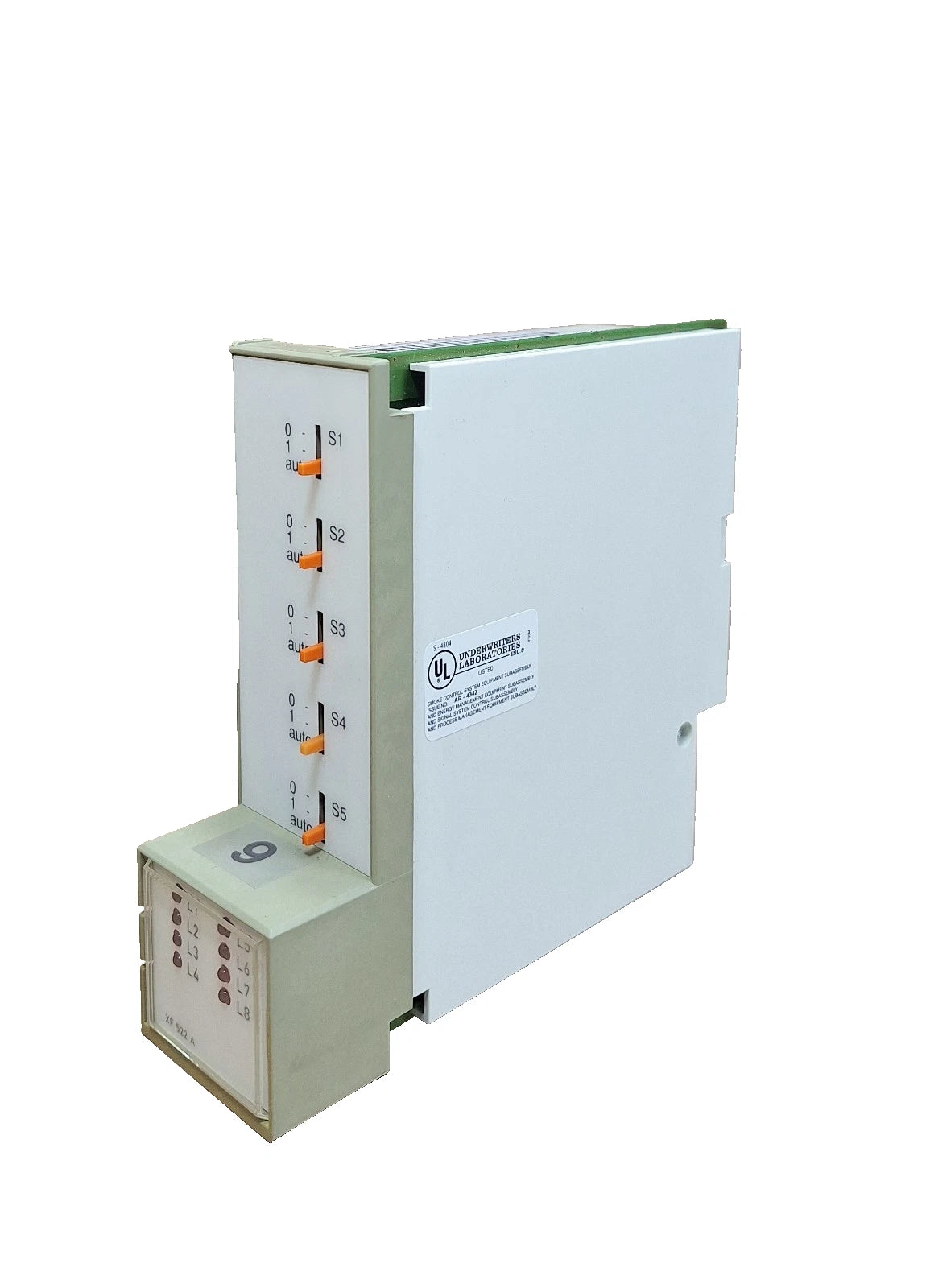

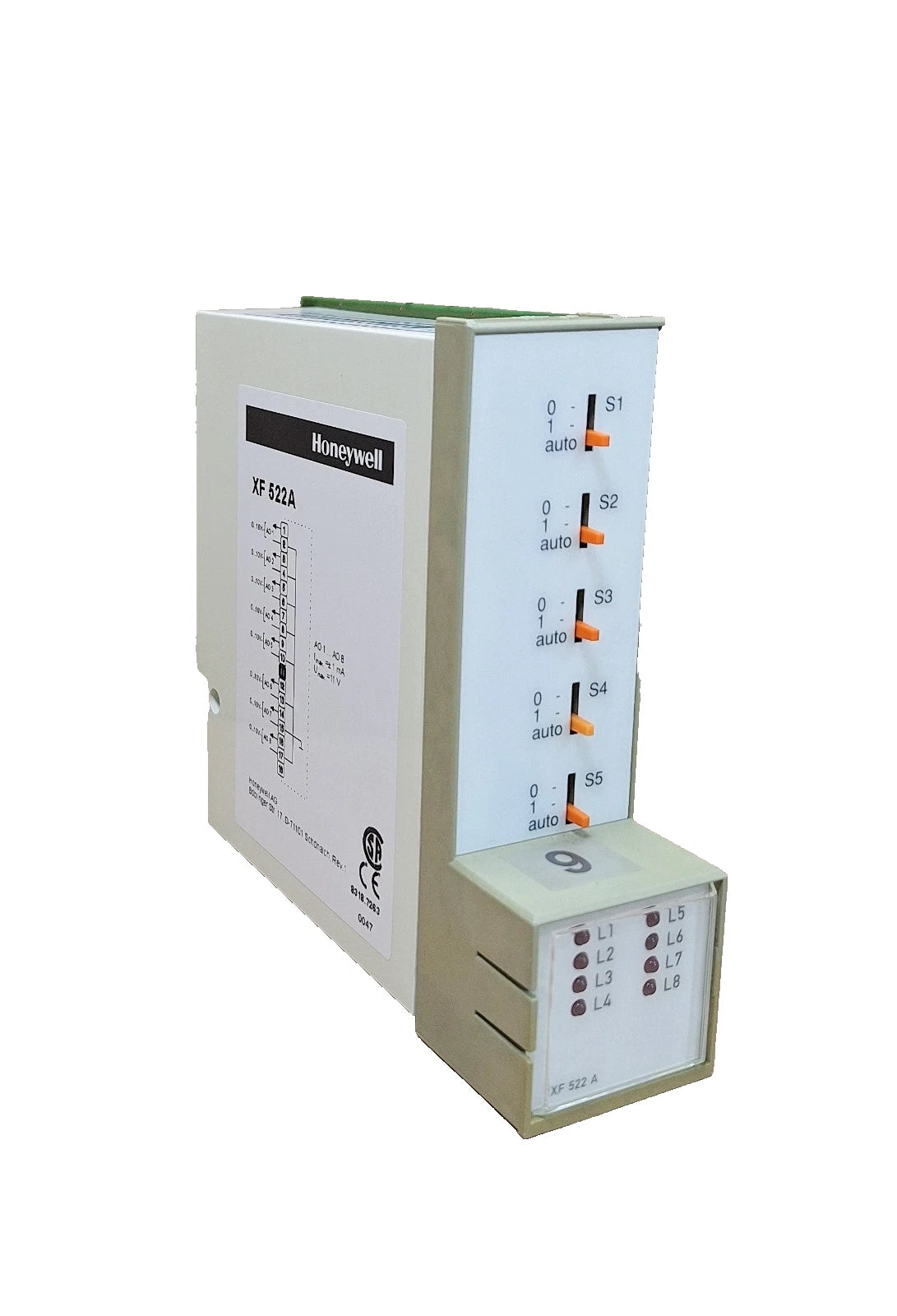

XF522A | Honeywell 11VDC Analog Output Module for HVAC Control Systems
- Regular price
- $567.15
- Sale price
- $567.15
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XF522A
Description
The Honeywell XF522A is an analog output module designed for HVAC control and monitoring systems. It provides a controlled 11 VDC output with a 1 mA signal capacity for interfacing with compatible control boards and field devices. This module is typically used in heating and cooling control panels requiring stable low-current analog signal transmission.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls and Monitoring |
| Part Number | XF522A |
| Subcategory | HVAC Control System Boards |
| Module Type | Analog Output Module |
| Output Voltage | 11 VDC |
| Output Current | 1 mA |
| Manufacturer Status | Discontinued by Manufacturer |
| Application | Heating and Cooling Control Systems |
| Installation Type | Panel-Mounted Control Board |
| System Integration | HVAC Monitoring and Control Panels |
| Top Category | Heating and Cooling Solutions |
| Weight | 0.18 kg |
Information About XF522A
The XF522A is part of Honeywell’s legacy HVAC control system components and functions as a dedicated analog output interface board. It is constructed as a compact electronic module intended for integration within HVAC control cabinets and monitoring assemblies. The module delivers a regulated 11 VDC output with a 1 mA signal level to support precise communication between system controllers and connected devices. As a discontinued manufacturer part, it is primarily used for maintenance and service of existing Honeywell heating and cooling installations.
Key Features:
- Analog Output Function: Provides controlled low-current signal output for HVAC system interfacing.
- 11 VDC Output Rating: Supplies regulated DC voltage for compatible control circuits.
- 1 mA Signal Capacity: Designed for precise low-level signal transmission.
- Control Board Integration: Installs within HVAC system panels and monitoring assemblies.
- Discontinued OEM Component: Supports servicing of legacy Honeywell systems.
- Compact Module Design: Allows straightforward replacement within existing hardware layouts.
- Stable Signal Performance: Maintains consistent voltage output for reliable system operation.
The XF522A delivers the reliability and precision required for analog signal output in HVAC control system applications.
