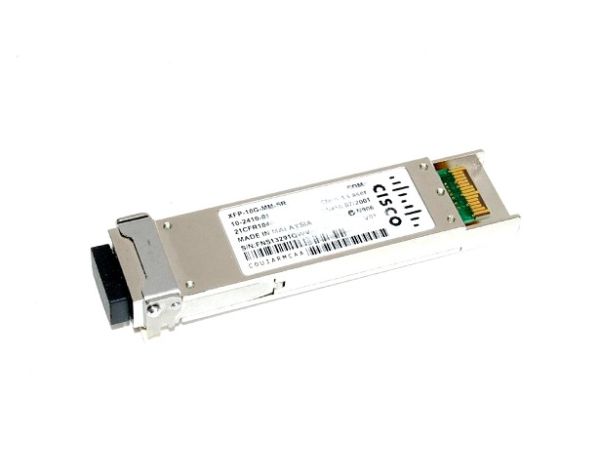

XFP-10G-MM-SR | Cisco Duplex LC MMF Optical Transceiver Module

Description

The Cisco XFP-10G-MM-SR is a 10GBASE-SR XFP optical transceiver module designed for short-range data transmission over multimode fiber (MMF). It features a duplex LC connector, operates at a wavelength of 850 nm, and supports distances up to 300 meters, making it ideal for high-speed data center and enterprise network applications.

Technical Specifications

Information About XFP-10G-MM-SR

The XFP-10G-MM-SR is a high-performance 10-Gigabit optical transceiver module designed for short-range data transmission over multimode fiber (MMF). Compliant with the XFP Multi-Source Agreement (MSA) and IEEE 802.3ae 10GBASE-SR standard, it supports up to 300 meters of reach on OM3 fiber and is widely used in data centers, enterprise core networks, and high-speed backbone connections. This hot-swappable module operates at a nominal wavelength of 850 nm using a VCSEL laser and connects via an LC duplex interface.

Key Features:

• Form Factor: XFP (10 Gigabit Small Form-Factor Pluggable)

• Data Rate: 10 Gbps

• Interface Type: XFI (10 Gigabit Attachment Unit Interface)

• Wavelength: 850 nm (short range)

• Max Distance: Up to 300m over OM3 multimode fiber

• Connector Type: LC duplex

• Fiber Type: Multi-Mode Fiber (MMF)

• Laser Type: VCSEL (Vertical-Cavity Surface-Emitting Laser)

• Hot Swappable: Yes

• Digital Diagnostics: Supports DOM (Digital Optical Monitoring)

• Standards Compliance: IEEE 802.3ae (10GBASE-SR), RoHS, XFP MSA, SFF-8477

This transceiver is ideal for high-speed links in LAN environments where short-distance, cost-effective 10G connectivity is required, offering reliable performance and easy integration into existing network infrastructure.
