XFP-10G-Z-OC192-LR2 | Cisco Compatible XFP
- Regular price
- $524.00
- Sale price
- $524.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XFP-10G-Z-OC192-LR2
Description

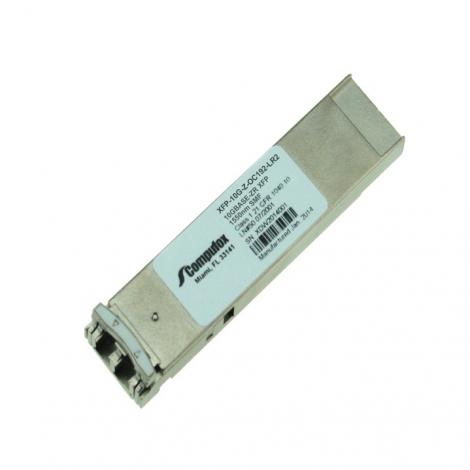

The Cisco XFP-10G-Z-OC192-LR2 is a multirate 10G XFP optical transceiver designed for long-distance transmission over single-mode fiber (SMF).
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Hardware
|
| Part Number | XFP-10G-Z-OC192-LR2 |
| Subcatecory |
Optical Transceivers / XFP Modules
|
| Media Type | Single-Mode Fiber (SMF) |
|
TX Wavelength |
1550 nm. |
| RX Wavelength | 1550 nm. |
| Minimum Optical Budget | 23 dB |
| Maximum Distance | 80km |
| Supported Data Rate | 1.24-11.32Gbps |
| Temperature Range | Standard 0°-70°C |
| Connectors | Double LC |
| Tx Wavelength Bandwidth | 37 nm (1528-1565 nm) |
| Rx Wavelength Bandwidth | 37 nm (1528-1565 nm |
| Minimum Transmitting Power | 0 dB |
| Maximum Transmitting Power | 4 dB |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -7 dBm |
| Dispersion | 1600 ps/nm |
| Transmitter Type | EML Laser |
| Receiver Type | APD Photodiode |
| Power | +3.3V single power supply |
| Transceiver Type | XFP |
| Weight | 0.036 kgs |
Information About XFP-10G-Z-OC192-LR2
The Cisco XFP-10G-Z-OC192-LR2 is a high-performance, multirate 10G XFP optical transceiver module designed for long-distance data transmission over single-mode fiber (SMF). It supports both 10GBASE-ZR Ethernet and OC-192/STM-64 LR-2 protocols, making it suitable for various applications in service provider and enterprise networks. Operating at a 1550 nm wavelength, this module enables data rates up to 10 Gbps over distances up to 80 km. It features digital optical monitoring (DOM) for real-time diagnostics and utilizes an LC duplex connector. The transceiver is hot-swappable, allowing for easy installation and replacement without disrupting network operations.
Key Features:
-
Data Rates: Supports 10G Ethernet and OC-192/STM-64
-
Wavelength: 1550 nm
-
Maximum Distance: 80 km over SMF
-
Connector Type: LC duplex
-
Digital Optical Monitoring (DOM): Supported
-
Operating Temperature Range: 0°C to 70°C
-
Power Consumption: Up to 3.5 W
-
Form Factor: XFP
-
Hot-Swappable: Yes
This transceiver module is ideal for applications such as metropolitan area networks (MANs), data center interconnects, and long-haul network links requiring reliable, high-speed optical communication.
