XFP-10GLR-OC192SR | Cisco 10GB SR-1 SMF XFP Transceiver

Description

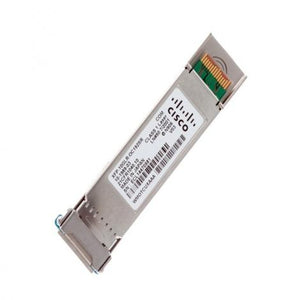

The Cisco XFP-10GLR-OC192SR is a hot-swappable XFP transceiver that supports 10GBASE Ethernet and OC-192/STM-64 data rates over single-mode fiber. Designed for flexible deployment in Cisco networking environments, it features digital optical monitoring and enables reliable, high-speed data transmission.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Cisco
Category	Network Transceivers
Part Number	XFP-10GLR-OC192SR
Subcatecory	XFP Modules
Form Factor	XFP
Data Rates Supported	10GBASE-LR/-LW, OC-192/STM-64 SR-1
Wavelength	1310 nm
Transmit Power (max/min)	+0.5 dBm / -8.2 dBm (10GBASE) -1.0 dBm / -6.0 dBm (OC-192)
Receive Sensitivity	-14.4 dBm (10GBASE) -11.0 dBm (OC-192)
Fiber Type	SMF, G.652
Receive Wavelength Range	1260–1565 nm





Information About XFP-10GLR-OC192SR

The XFP-10GLR-OC192SR is a multirate transceiver module that supports both 10GBASE-LR/-LW and OC-192/STM-64 SR-1 standards, designed for single-mode fiber (SMF) networks. It uses a wavelength of 1310 nm, and is compatible with G.652 core fiber. The module provides seamless operation up to 10 km for 10 GbE and 2 km for OC-192/STM-64 connections.

Key Features:

• Multi-protocol support: Handles both 10G Ethernet and OC-192/STM-64 signals.

• Wavelength: 1310 nm (nominal).

• Cable Compatibility: Single-mode fiber with G.652 core.

• Reach: 10 km (10 GbE) / 2 km (OC-192/STM-64).

• Transmit Wavelength Range: 1260 to 1355 nm (LR), 1290 to 1330 nm (OC)

• Receive Wavelength Range: 1260 to 1565 nm

• Digital Optical Monitoring (DOM): Supported

• Plug-and-play: Hot-swappable I/O for flexible network expansion

The XFP-10GLR-OC192SR is a versatile solution supporting both Ethernet and SONET/SDH applications.
