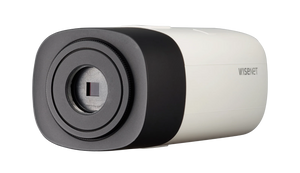

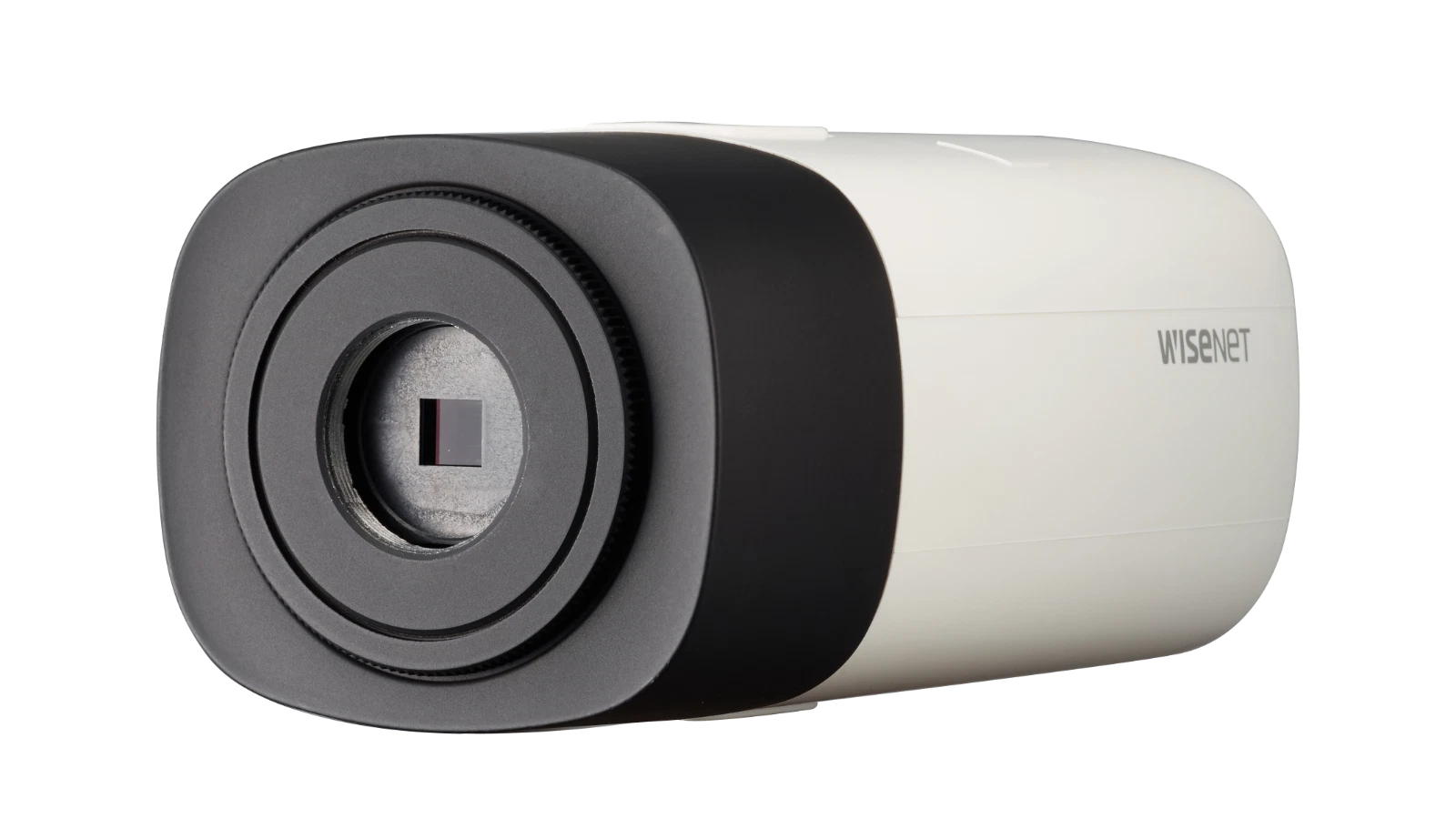

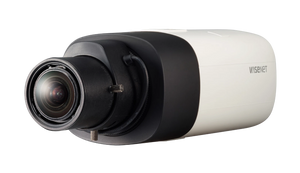

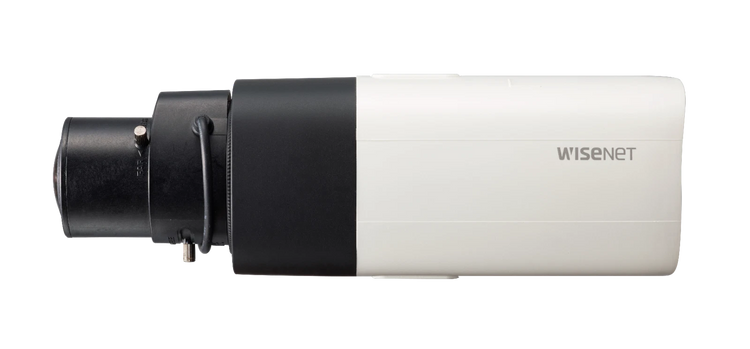

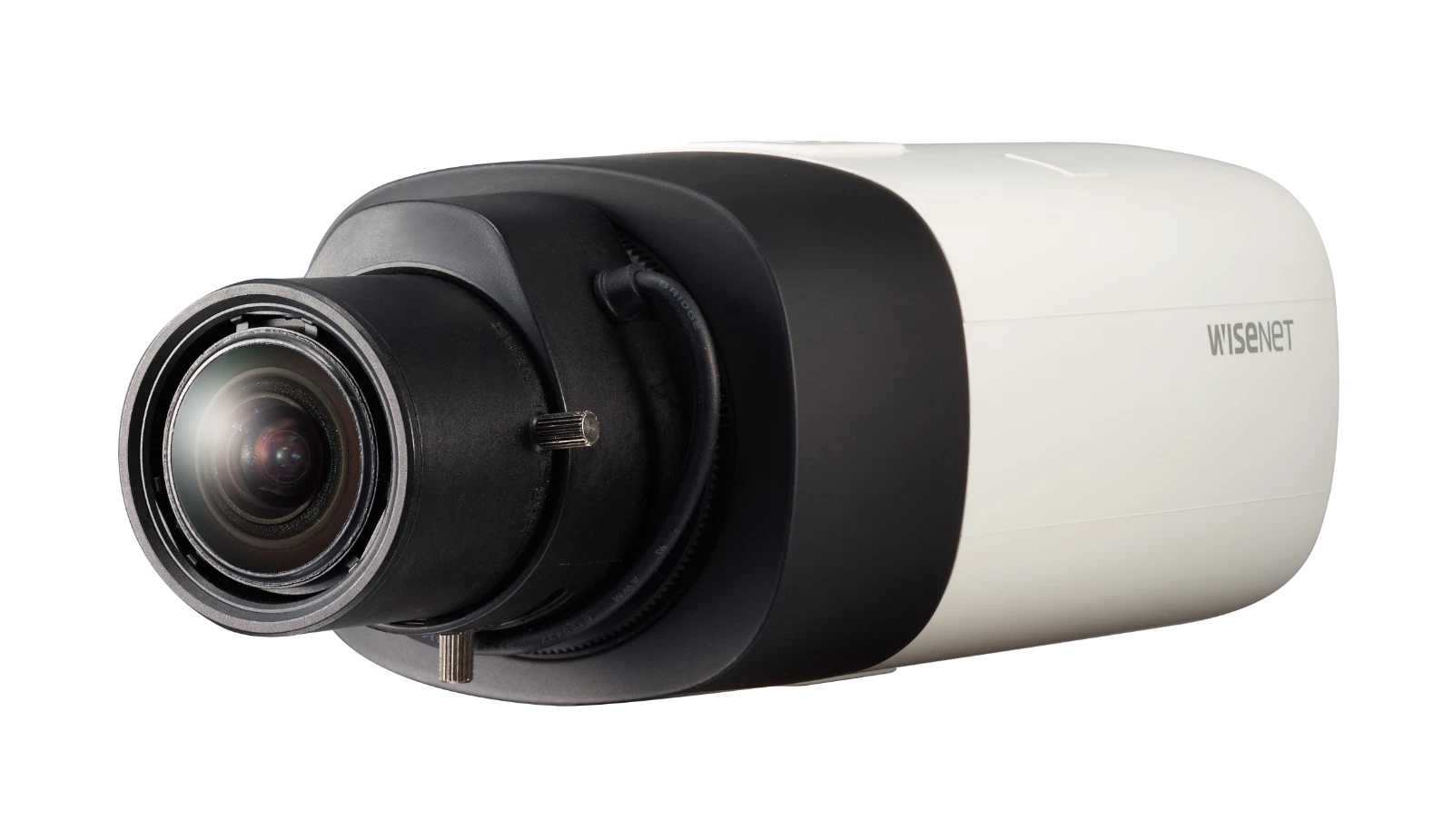

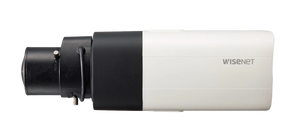

XNB-8000 | Hanwha Vision 5 MP Network Box Camera with WDR and Gyro Stabilization
- Regular price
- $1,349.00
- Sale price
- $1,349.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: XNB-8000
Description
The Hanwha Vision XNB-8000 is a 5-megapixel box network camera delivering up to 2560 × 1920 resolution at 30 fps using H.265, H.264, or MJPEG compression. It offers advanced image features including 120 dB WDR, P-Iris control, Defog, and digital image stabilization. Ideal for high-security and industrial surveillance, the XNB-8000 provides multi-streaming, PoE power, and intelligent analytics for versatile video monitoring applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Hanwha Vision |
| Category | Security & Surveillance |
| Part Number | XNB-8000 |
| Subcategory | Network Box Camera |
| Image Sensor | 1/2.8″ 5 MP CMOS |
| Maximum Resolution | 2560 × 1920 (5 MP) |
| Frame Rate | 30 fps at all resolutions |
| Lens Mount | C/CS-mount (lens not included) |
| Minimum Illumination | 0.07 Lux @ F1.2 (Color), 0.007 Lux @ F1.2 (B/W) |
| Wide Dynamic Range | 120 dB True WDR |
| Day/Night Mode | ICR (Infrared Cut Filter Removable) |
| Video Compression | H.265, H.264 (Main/High/Baseline), MJPEG |
| Audio Compression | G.711 u-law, G.726, AAC-LC |
| Streaming | Unicast (20 users), Multicast, up to 10 profiles |
| Smart Codec | WiseStream II, manual area control (5 zones) |
| Bitrate Control | CBR / VBR |
| Edge Storage | Dual Micro SD/SDHC/SDXC slots (512 GB max) |
| Analytics | Motion, Loitering, Directional, Fog, Tampering, Audio Detection, Auto Tracking |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, HTTP/HTTPS, RTSP, FTP, SNMP, NTP, QoS, UPnP, Bonjour |
| Security | HTTPS, Digest Auth, IP Filtering, 802.1X Auth |
| API Support | ONVIF Profile S/G/T, SUNAPI, Wisenet Open Platform |
| Operating Temperature | –10 °C to +55 °C (14 °F to 131 °F) |
| Storage Temperature | –50 °C to +60 °C (–58 °F to 140 °F) |
| Power Input | PoE (IEEE 802.3af Class 3) / 12 V DC / 24 V AC |
| Power Consumption | PoE/24 V AC: Max 8.5 W; 12 V DC: Max 7.5 W |
| Memory | 1 GB RAM, 256 MB Flash |
| Dimensions | Standard box camera enclosure |
| Weight | Approx. 1.0 lb (without lens) |
Information About XNB-8000
The XNB-8000 belongs to Hanwha Vision’s Wisenet X Series of professional IP cameras designed for high-definition security applications. Equipped with a C/CS-mount for interchangeable lenses, it provides superior flexibility in focal length selection and field of view customization. The camera supports full 5 MP recording at 30 fps with multi-codec streaming and a wide 120 dB dynamic range for optimized imaging in challenging lighting conditions. Featuring gyro-based digital image stabilization, WiseStream II smart compression, and a built-in SDXC slot supporting up to 512 GB, the XNB-8000 ensures stable performance, efficient storage, and detailed video capture for enterprise-level installations.
Key Features:
- High-Resolution Imaging: Captures crisp 5 MP (2560 × 1920) video at 30 fps for detailed surveillance.
- Advanced Codec Support: H.265, H.264, and MJPEG with multiple streaming profiles for flexible bandwidth management.
- 120 dB True WDR: Maintains visibility and color accuracy in scenes with extreme lighting contrast.
- Digital Image Stabilization: Built-in gyro sensor minimizes vibration effects for clear, stable images.
- P-Iris and Defog Functions: Optimize depth of field and enhance visibility in low-contrast or foggy conditions.
- Intelligent Video Analytics: Includes motion, loitering, directional, fog, audio, and tampering detection with auto-tracking.
- Dual SD Card Slots: Supports up to 512 GB SD/SDHC/SDXC for reliable edge storage and redundancy.
- Network Security: HTTPS, IP filtering, user access logs, and 802.1X authentication ensure secure operation.

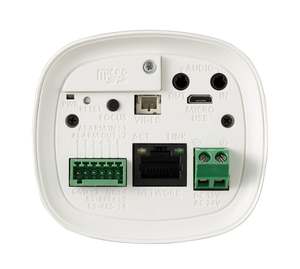

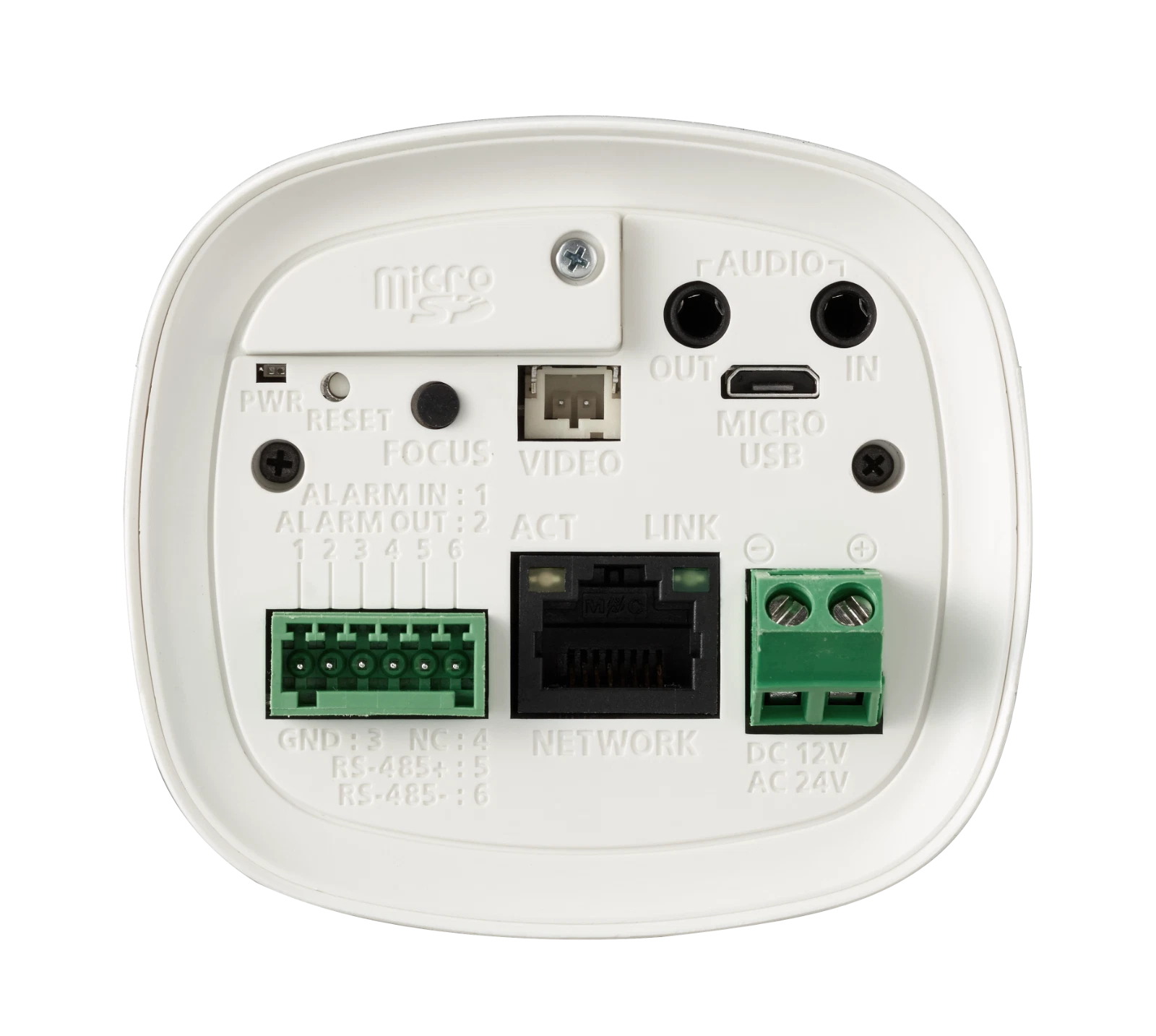

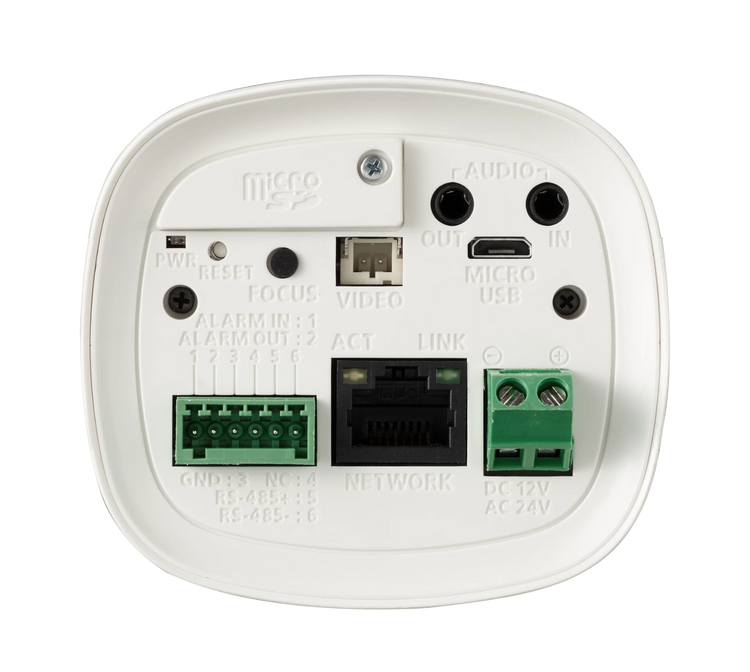

- Multiple Power Options: Supports PoE (IEEE 802.3af Class 3), 12 V DC, or 24 V AC input.
- Rugged and Flexible Design: Operates from –10 °C to +55 °C with multilingual interface and ONVIF S/G/T compliance.
The XNB-8000 delivers the performance, flexibility, and analytics precision required for enterprise-grade surveillance and monitoring systems.
