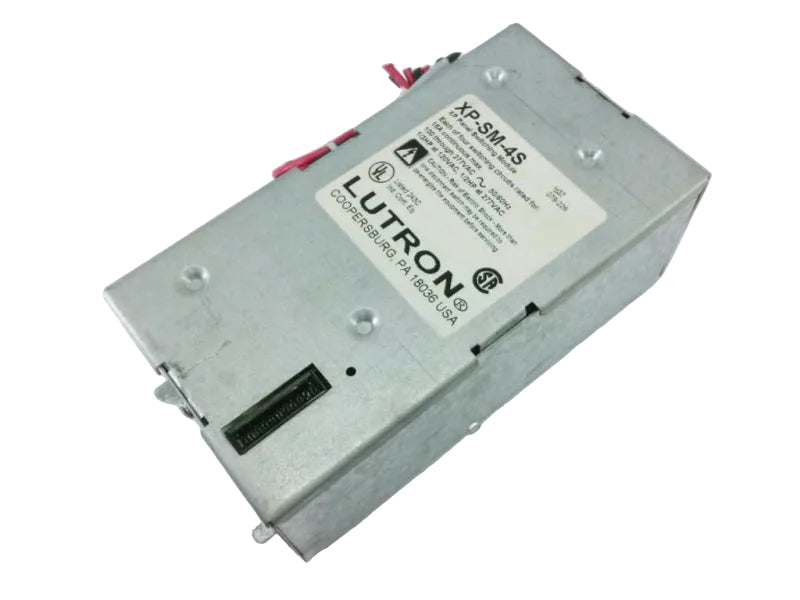

XP-SM-4S | Lutron XP Panel 4-Circuit Dimmer Switching Module 16A 100–347VAC
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XP-SM-4S
Description
The Lutron XP-SM-4S is a panel-mounted dimmer switching module designed to provide reliable multi-circuit load control in professional lighting and electrical systems. This module supports four independent switching circuits and is engineered for high-current applications across a wide input voltage range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | XP-SM-4S |
| Subcategory | Switching Modules |
| Product Type | Dimmer Switching Module |
| Control Style | Switch |
| Current Type | AC |
| Number of Switching Circuits | 4 |
| Maximum Continuous Current | 16 A |
| Voltage Rating | 100–347 VAC |
| Frequency | 50/60 Hz |
| Motor Load Rating | 1/2 HP @ 120 V to 1-1/2 HP @ 277 V |
| Mounting Style | Panel / Wall |
| Orientation | Vertical |
| Housing Shape | Rectangular |
| Color | Silver |
| Application | Interior Lighting and Load Control |
| Weight | Approx. 3 lbs |
Information About XP-SM-4S
The XP-SM-4S is a switching module from Lutron’s XP Panel Switching Module series, designed for integration into centralized lighting control panels. It is built to handle demanding electrical loads with continuous current capacity and compatibility across multiple AC voltage standards. The module is intended for interior, wall-mounted panel installations where multiple circuits must be switched reliably from a centralized control system. Its design supports both lighting and motor loads, making it suitable for commercial, institutional, and industrial control environments.
Key Features
- Four Switching Circuits: Provides independent control of up to four separate electrical loads from a single module.
- High Current Capacity: Supports up to 16 amps continuous per module for demanding applications.
- Wide Voltage Compatibility: Operates across 100–347 VAC systems at 50/60 Hz.
- Motor Load Support: Rated from 1/2 HP at 120 V up to 1-1/2 HP at 277 V for motor-driven equipment.
- XP Panel Integration: Designed specifically for use within Lutron XP panel-based control systems.
- AC Switching Operation: Engineered for alternating current applications in commercial environments.
- Panel-Mounted Form Factor: Rectangular module designed for secure installation within centralized enclosures.
The XP-SM-4S delivers the reliability and precision required for centralized lighting and load switching control systems.
