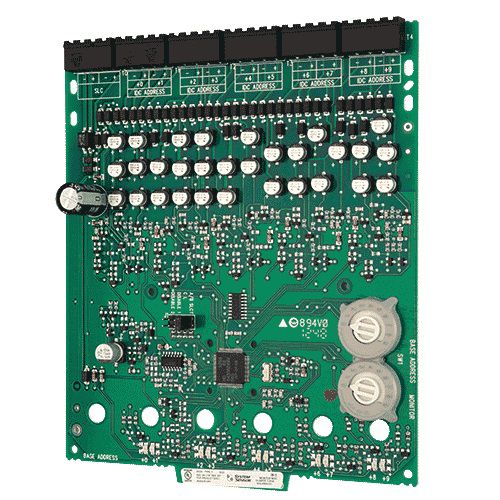

XP10-M | Notifier Ten Input Monitor Module
- Regular price
- $842.00
- Sale price
- $842.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XP10-M
Description
The XP10-M is a ten-input addressable monitor module designed for use with Notifier fire alarm control panels. It monitors multiple initiating devices with high efficiency, minimizing system wiring while maintaining independent supervision for each input.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Notifier |
| Category |
Fire Alarm System Components
|
| Part Number | XP10-M |
| Subcategory | Input Monitor Modules |
| Normal Operating Voltage | 15–32 VDC |
| Standby Current | 3.75 mA at 24V |
| Alarm Current | 55 mA (all LEDs on) |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity | 10–85% RH, non-condensing |
| Dimensions | 6.8″H × 5.8″W × 1.25″D |
| Wire Gauge | 12–18 AWG |
| Max SLC Wiring Resistance | 40 Ohms |
| Max IDC Wiring Resistance |
1500 Ohms |
| Max IDC Voltage | 10.2 VDC |
| Max IDC Current | 240 µA per circuit |
| Compatible Cabinets | CHS-6, BB-25, BB-XP, CAB-3/4 Series |
| Weight | 1.1 lbs |
Information About XP10-M
The XP10-M supports ten supervised input circuits that share a single SLC address for efficient loop usage. The module’s addresses are sequentially assigned, starting from a user-defined point between 01 and 150, with up to two addresses optionally disabled. Each input loop shares common supervisory power and ground but functions independently in terms of signal monitoring and fault detection.
Key Features:
- Ten Independent Inputs: Monitors up to 10 initiating devices through supervised input circuits with common SLC connection.
- Sequential Address Allocation: The first address is user-programmable (01–150), and the module auto-assigns the next nine addresses, ensuring efficient SLC loop management with minimal manual configuration.
- Common Supply Architecture: Uses a shared supervisory supply and ground across all input circuits, simplifying wiring while maintaining signal isolation between inputs.
- Intelligent LED Feedback: Each input features a green LED indicator controlled by the fire panel, with selectable modes (blink, latch on, or off) for visual input status at a glance.
- Low Standby and Alarm Current Draw: Optimized power usage with 3.75 mA standby at 24V and only 55 mA during full alarm state (all LEDs on), minimizing the impact on system capacity.
- Compact and Mountable Design: Fits in multiple enclosure types such as CHS-6, BB-25, BB-XP, and CAB-series cabinets, ideal for centralized and distributed system layouts.
- Robust Environmental Range: Operates reliably between 0°C and 49°C (32°F to 120°F) with up to 85% relative humidity (non-condensing), suitable for most building conditions.
- High Input Resistance Capacity: Supports IDC wiring up to 1500 ohms and IDC current of 240 µA per circuit, enabling long run applications without loss of supervision accuracy.
The XP10-M provides high-density, addressable input monitoring with minimal SLC load, making it ideal for installations where space and efficiency are priorities.
