XP10-MA | Notifier Ten Input Intelligent Monitor Module for Fire Alarm Control Systems
- Regular price
- $1,341.00
- Sale price
- $1,341.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XP10-MA
Description

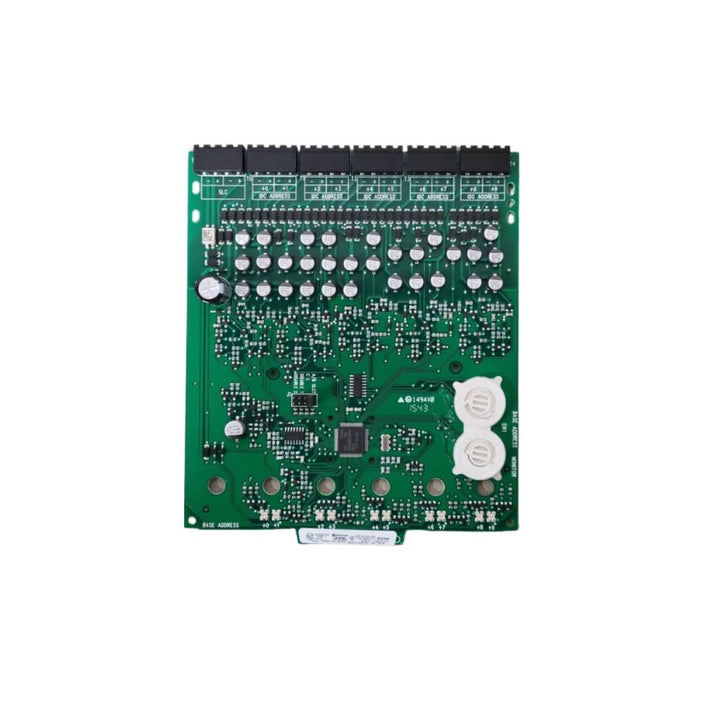

The Notifier XP10-MA Ten Input Monitor Module is an intelligent interface device that enables connection of multiple initiating circuits to a Notifier intelligent fire alarm control panel. It provides ten supervised input channels for monitoring contact devices such as pull stations, waterflow switches, and conventional detectors.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Equipment |
| Part Number | XP10-MA |
| Subcategory | Input Monitor Module |
| Input Channels | 10 supervised initiating device circuits |
| Voltage Range | 15–32 VDC |
| Standby Current | 3.8 mA (average) |
| Alarm Current | 68 mA (maximum) |
| Wiring Configuration | Class A (Style D) or Class B (Style B) |
| Communication Interface | SLC loop – Notifier intelligent protocol |
| Indicators | LED status for communication, alarm, and trouble |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | Up to 93% RH, non-condensing |
| Mounting Type | Cabinet or chassis mount |
| Housing Material | Plastic enclosure |
| Compliance | UL Listed; NFPA 72 compliant |
| Dimensions | 6.8” H × 5.8” W × 1.0” D |
| Weight | 0.6 lb (0.27 kg) |
Information About XP10-MA
The XP10-MA is part of Notifier’s intelligent module line, designed to expand the input capacity of ONYX Series and other compatible fire alarm control panels. It monitors up to ten independent initiating device circuits, each individually addressable through the system’s SLC (Signaling Line Circuit). Supporting both Class A (Style D) and Class B (Style B) wiring, the XP10-MA ensures flexible installation in a variety of system layouts. Compact and easily mountable, this module maintains consistent communication with the panel for real-time status updates, enhancing system reliability and fault tolerance.
Key Features:
- Ten Supervised Inputs: Monitors up to ten independent initiating device circuits.
- Intelligent Addressing: Each input is individually addressable for precise zone identification.
- Class A/B Wiring Support: Compatible with both Style D and Style B circuits.
- Notifier System Integration: Works seamlessly with ONYX Series intelligent control panels.
- LED Indicators: Provides visible feedback for communication, alarm, and fault conditions.
- Low Power Consumption: Operates efficiently with 3.8 mA standby and 68 mA alarm current.
- Compact Design: Fits neatly within standard electrical enclosures for easy installation.
- UL/NFPA Compliant: Meets recognized standards for intelligent fire detection systems.
The XP10-MA delivers the reliability and precision required for advanced input monitoring in addressable fire alarm systems.
