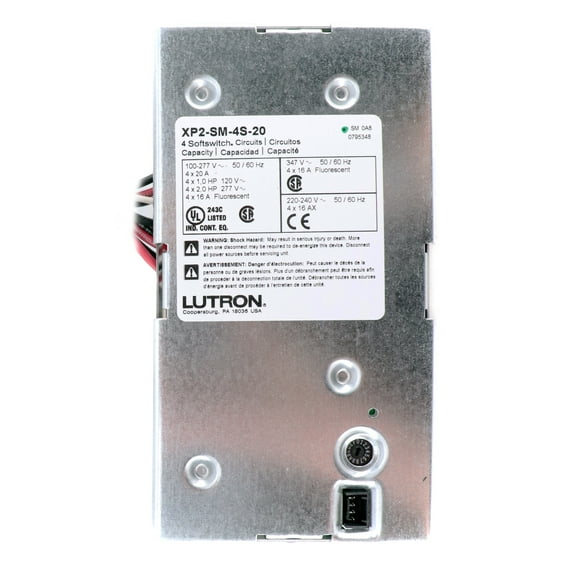

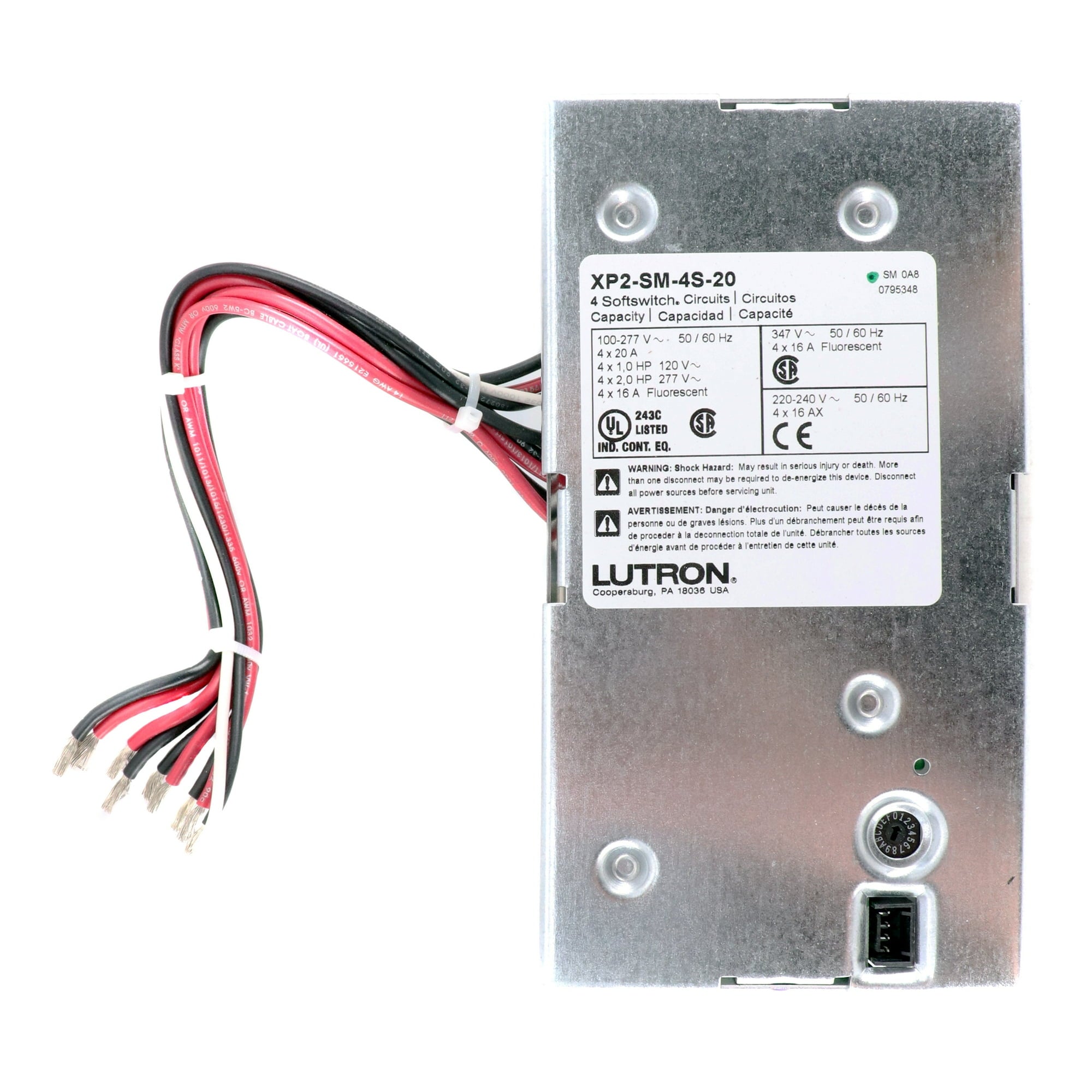

XP2-SM-4S-20 | Lutron SoftSwitch 4-Circuit Control Module 120/277V 16A–20A
- Regular price
- $375.00
- Sale price
- $375.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XP2-SM-4S-20
Description
The Lutron XP2-SM-4S-20 SoftSwitch 4-Circuit Control Module is a four-circuit relay control unit designed for switching high-capacity lighting loads in commercial and architectural lighting systems. Operating on 120/277 VAC, it delivers 16A or 20A per circuit, providing reliable on/off control without mechanical wear or contact arcing through Lutron’s SoftSwitch® technology.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | XP2-SM-4S-20 |
| Subcategory | Relay Control Modules |
| Series | SoftSwitch XP2 |
| Type | 4-Circuit Relay Control Module |
| Voltage Rating | 120/277 VAC, 50/60 Hz |
| Number of Circuits | 4 |
| Load Rating per Circuit | 16A or 20A depending on load type |
| Technology | SoftSwitch® arc-free switching |
| Mounting Type | Panel or enclosure mount |
| Control Interface | Compatible with Lutron lighting control systems |
| Load Compatibility | LED, fluorescent, HID, and resistive loads |
| Switching Type | Electronic relay-based on/off control |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Enclosure Type | Indoor use |
| Application | Commercial, industrial, and architectural lighting control |
| Material | Steel chassis and electronics housing |
| Certifications | UL Listed, NOM Certified |
| Power Frequency | 50/60 Hz |
| Country of Origin | USA |
| Dimensions (H × W × D) | 13.5 in × 9.5 in × 3.5 in (approx.) |
| Weight | 8.2 lb (approx.) |
Information About XP2-SM-4S-20
The XP2-SM-4S-20 is part of the Lutron SoftSwitch XP2 series, engineered to handle heavy-duty switching applications while maintaining longevity and reliability. Using patented SoftSwitch® technology, the module eliminates relay arcing by pre-charging contacts before closing, ensuring silent, durable, and flicker-free operation. It features four independent relay circuits, each capable of managing up to 20 amps of load depending on type, making it ideal for fluorescent, LED, or HID lighting control. Designed for integration with Lutron’s lighting management systems, the XP2-SM-4S-20 supports centralized relay control, energy management, and flexible configuration for multi-zone applications.
Key Features:
- Four Independent Circuits: Controls up to four lighting loads with separate relay channels.
- High Load Capacity: Rated for 16A or 20A per circuit depending on load type.
- SoftSwitch® Technology: Eliminates relay arcing for extended relay life and silent operation.
- Versatile Voltage Support: Operates on 120/277 VAC, suitable for commercial and industrial systems.
- Low Maintenance: Solid-state control reduces mechanical wear common to traditional relays.
- Flexible Integration: Designed for use in centralized or distributed Lutron lighting control panels.
- Energy Efficiency: Provides reliable control for energy-saving lighting schedules and occupancy-based systems.
- Durable Construction: Built for continuous-duty commercial applications.
The XP2-SM-4S-20 delivers the reliability and precision required for high-performance lighting control in demanding commercial and architectural environments.
