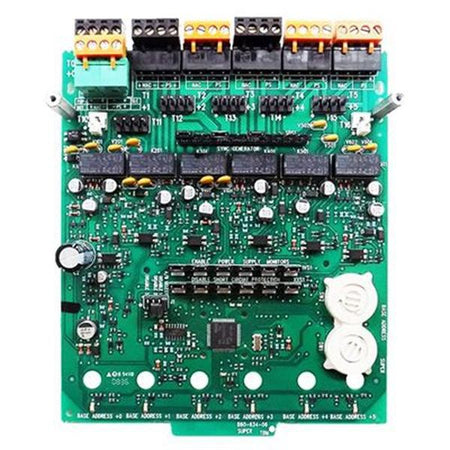

XP6-C | Notifier Six Circuit Supervised Control Module
- Regular price
- $985.00
- Sale price
- $985.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XP6-C
Description
The Notifier XP6-C is a six-circuit supervised control module designed to provide intelligent fire alarm systems with supervised monitoring of notification appliance circuits (NACs). It supports load devices requiring external power such as horns, strobes, or bells, ensuring reliable activation and wiring supervision.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Systems |
| Part Number | XP6-C |
| Subcategory | Control Modules |
| Operating Voltage | 15–32 VDC |
| Standby Current | 2.65 mA @ 24V |
| Alarm Current | 35 mA (all relays switched and LEDs active) |
| Temperature Range | 32°F to 120°F (0°C to 49°C); -10°C to 55°C (EN54 only) |
| Humidity | 10–93% non-condensing |
| Dimensions | 6.8" H x 5.8" W x 1.25" D |
| Wire Gauge | 12–18 AWG |
| Max. NAC Circuit Line Loss | 4 VDC |
| Power Rating per Circuit | 50 W @ 70.7 VAC; 50 W @ 25 VAC |
| Max. NAC Current Ratings | Class B wiring: 3A; Class A wiring: 2A |
| Addressing Range | 01–154 (remaining five assigned automatically) |
| Status Indicators | LEDs for each circuit status |
| Operation Modes | FlashScan® or CLIP |
| Accessory Options | SYNC-1 card for SpectrAlert and SpectrAlert Advance synchronization |
| Mounting Options | One or two modules in BB-XP; up to six on CHS-6 chassis (CAB-3, CAB-4, EQ, or BB-25 cabinet) |
| Accessories Supported | CHS-6 chassis, BB-25, BB-XP, CAB-3, CAB-4 Series cabinets |
| Weight | 0.37 lbs (0.17 kg) |
Information About XP6-C
The XP6-C is a Notifier intelligent supervised control module engineered to handle six independent notification appliance circuits (NACs). It provides supervised monitoring of wiring and external power supply loads, disconnecting supervision and applying external power to activate connected devices upon command from the fire alarm control panel. The module supports addressing from 01 to 154, with automatic assignment of the next five higher addresses. Designed for flexibility, it accommodates one or two modules in a BB-XP cabinet or up to six on a CHS-6 chassis in larger enclosures, making it ideal for scalable fire alarm system installations.
Key Features:
- Six Supervised Circuits: Provides six independent NAC outputs for horns, strobes, bells, or other load devices.
- Intelligent Addressing: First circuit addressed manually; remaining five assigned automatically for efficiency.
- External Power Integration: Switches supervision to external power supply for reliable device activation.
- LED Indicators: Status LEDs for each point provide quick diagnostics of circuit conditions.
- Flexible Operation: Supports FlashScan® or CLIP communication protocols.
- Optional Synchronization: Works with SYNC-1 card for SpectrAlert and SpectrAlert Advance device syncing.
- Versatile Mounting: Fits into BB-XP, BB-25, CAB-3, CAB-4, EQ Series cabinets, or CHS-6 chassis for modular installations.
- Compact and Lightweight: Space-saving 6.8" x 5.8" design with a weight of only 0.37 lbs.
- Rugged Construction: Includes removable plug-in terminal blocks for reliable wiring connections.
- Code Compliant: UL listed and NFPA 72 compliant for life safety system applications.
The XP6-C delivers the reliability and precision required for supervised notification appliance circuit control in modern fire alarm systems.
