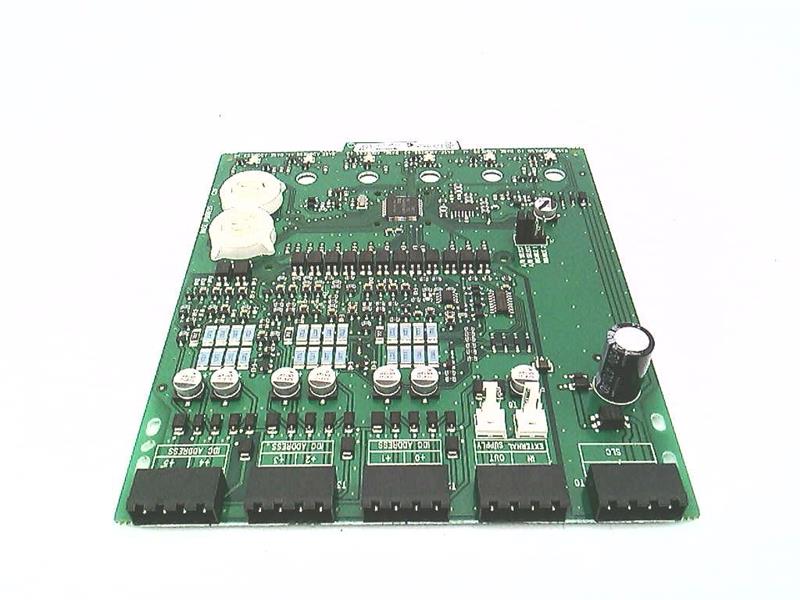

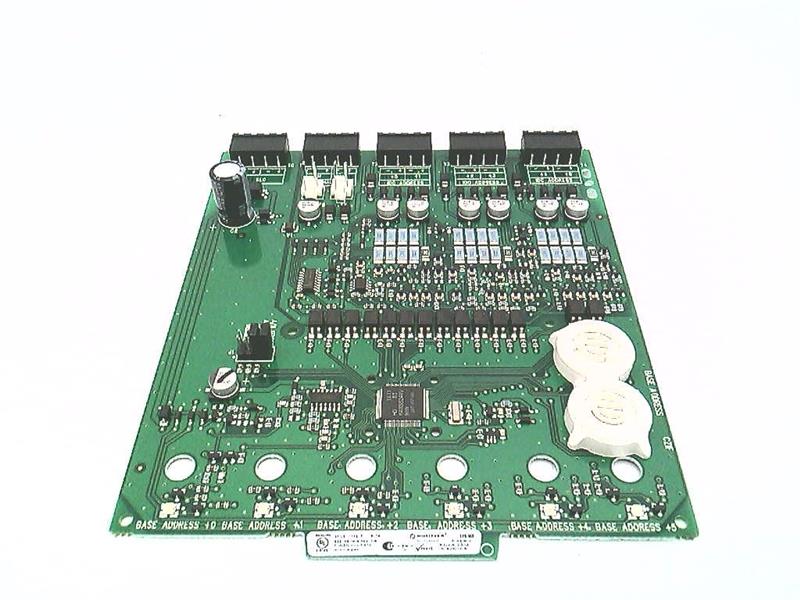

XP6-MA | Notifier Six-Zone Interface Module
- Regular price
- $810.00
- Sale price
- $810.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XP6-MA
Description
The Notifier XP6-MA is a six-zone interface module designed to monitor conventional two-wire detection circuits within addressable fire alarm systems. It supports Class A or Class B wiring and integrates with FlashScan® or CLIP communication protocols.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Notifier |
| Category |
Safety Systems
|
| Part Number | XP6-MA |
| Subcategory | Safety Relay |
| Input Circuits | 6 Class B or 3 Class A initiating device circuits |
| Compatible Detectors | Only listed two-wire detectors |
| Communication Protocol | FlashScan® or CLIP |
| Addressing Method | Rotary decimal switches |
| Status Indication | Panel-controlled bicolor LEDs per circuit |
| Power Supply | External, shared among circuits (supervised) |
| Unused Circuits | Up to 2 may be disabled |
| Wiring Terminals | Plug-in type, accepts 12–18 AWG (3.1–0.78 mm²) |
| Mounting Options |
BB-XP, CHS-6 in CAB-3/4/BB-25/EQ cabinet series |
| Operation Modes | CLIP or FlashScan-compatible panels |
| Dimensions | 6.80 × 5.80 × 1.25 in |
| Weight | 0.2 lbs |
Information About XP6-MA
The XP6-MA enables seamless integration of conventional two-wire detection zones into Notifier’s intelligent fire alarm systems. Each module supports six Class B (or three Class A) initiating device circuits, making it suitable for retrofits or hybrid systems where existing conventional devices are retained. All circuits operate via a common signaling line circuit (SLC) and share a supervised external power supply and ground, ensuring unified status reporting and reliable supervision.
The XP6-MA reports three status conditions—normal, open, and alarm—for each detection zone, and features panel-controlled bicolor LEDs for visual indication per point. Up to two unused circuits can be selectively disabled, and addressing is done via rotary switches for easy configuration. Installation is flexible, supporting mounting in BB-XP, CHS-6 chassis, or CAB/EQ cabinet series. All terminal blocks are removable for quick wiring, and the unit is compatible with FlashScan or CLIP operation modes.
Key Features:
- Six Supervised Input Zones: Supports six Class B or three Class A initiating circuits for conventional detectors.
- Common SLC Bus Integration: Shares a single SLC address bus for streamlined wiring and communication.
- Status Reporting: Monitors and reports normal, alarm, or open conditions per circuit to the FACP.
- Rotary Addressing: Simplifies configuration with panel-compatible address switches.
- FlashScan®/CLIP Operation: Fully compatible with intelligent panels using either communication protocol.
- Panel-Controlled LEDs: Provides per-zone visual status via dual-color panel-controlled indicators.
- Unused Circuit Disable Option: Allows deactivation of up to two unused circuits for streamlined addressing.
- Modular Mounting Options: Fits in BB-XP cabinet or up to six modules on CHS-6 chassis in CAB-3, CAB-4, BB-25, or EQ cabinets.
- Plug-in Terminal Blocks: Accepts 12–18 AWG wiring for fast installation and service.
- UL-Listed Compatibility: Works only with two-wire detectors specifically listed for use with XP6 modules.
The XP6-MA provides a reliable and flexible bridge between conventional detection zones and modern addressable fire alarm systems with full supervision and streamlined installation.
