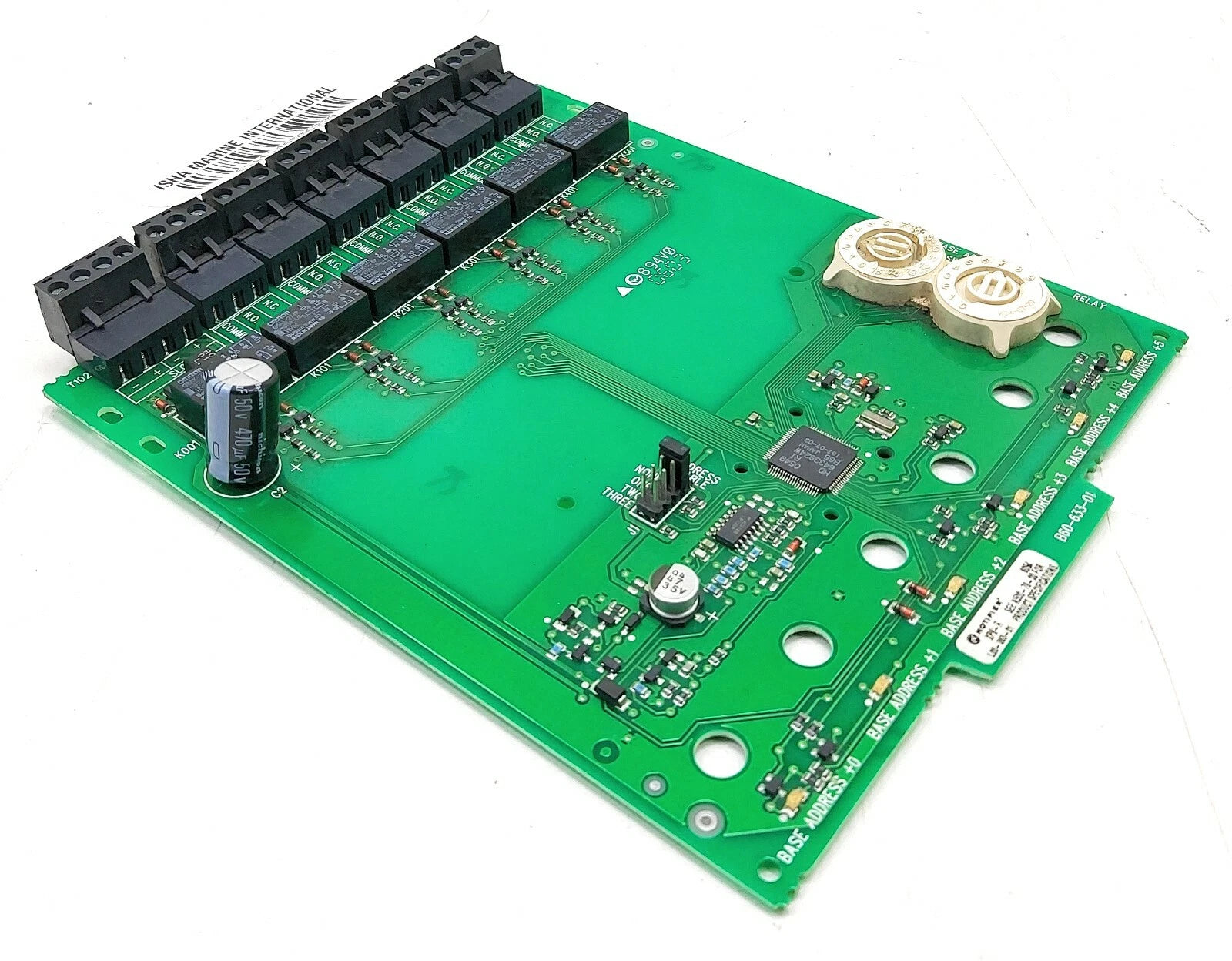

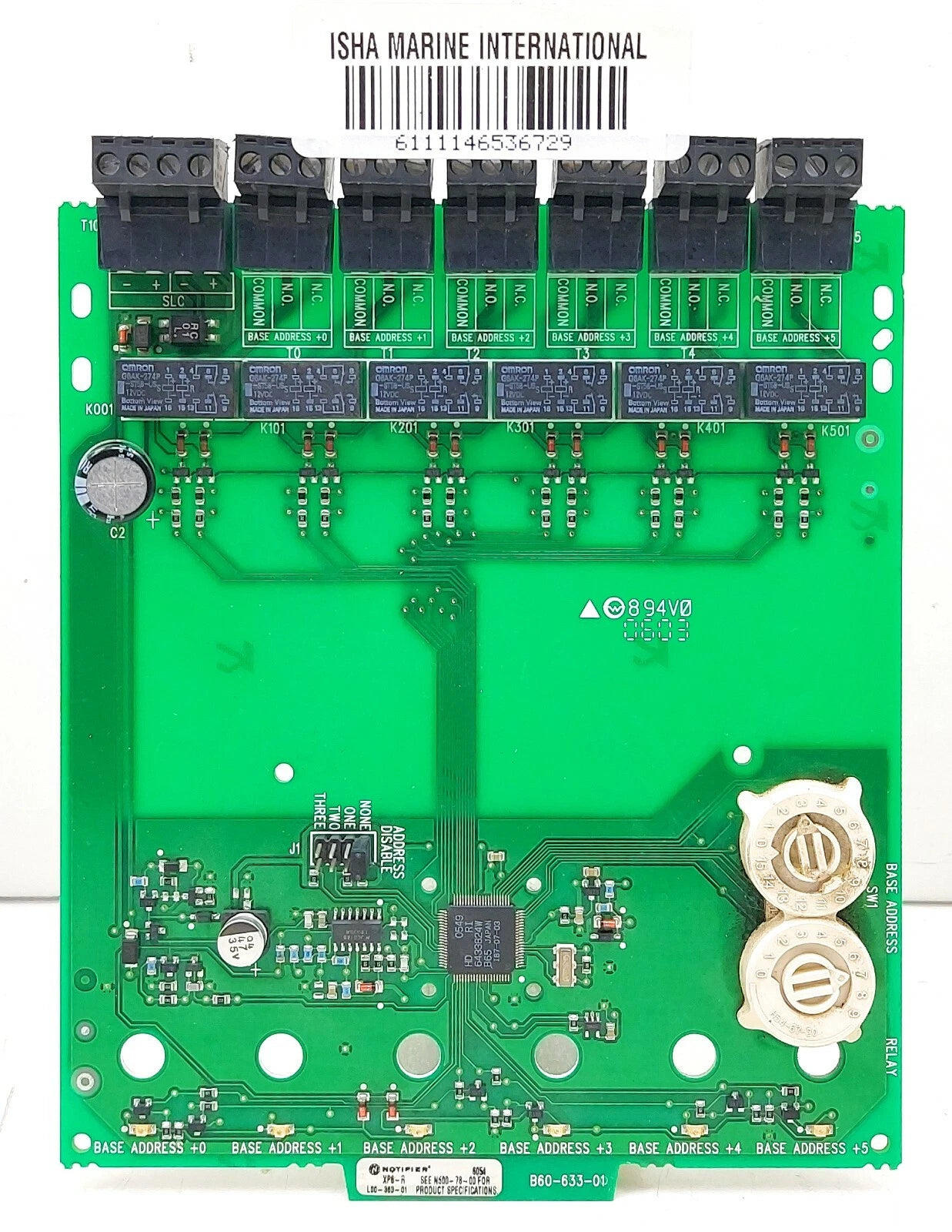

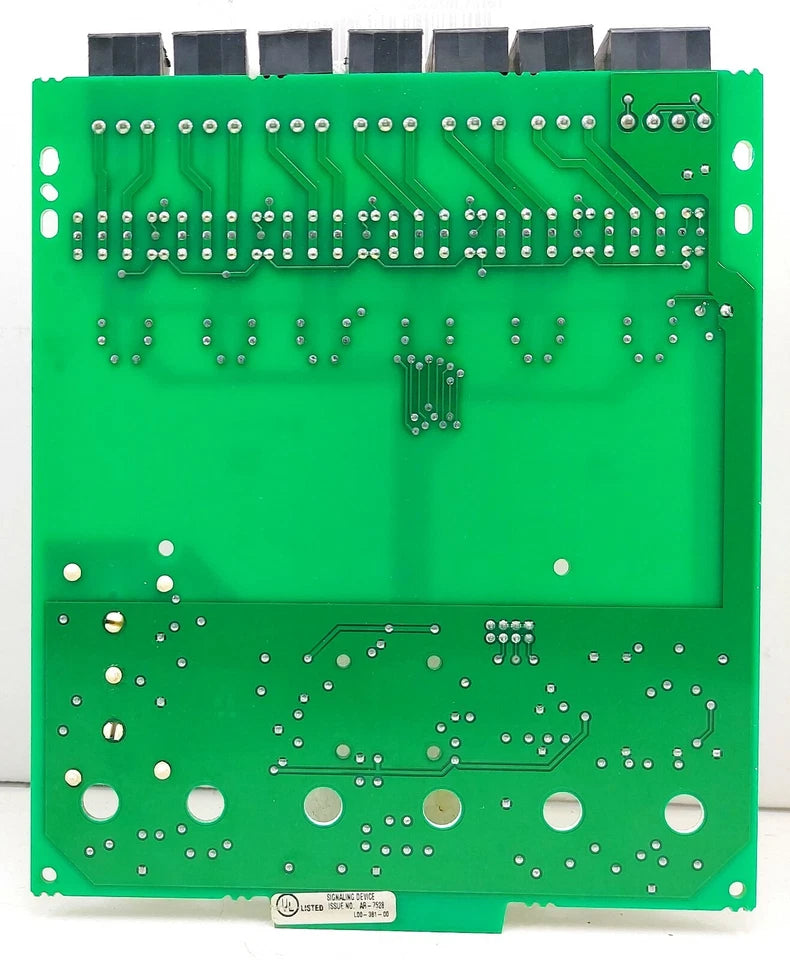

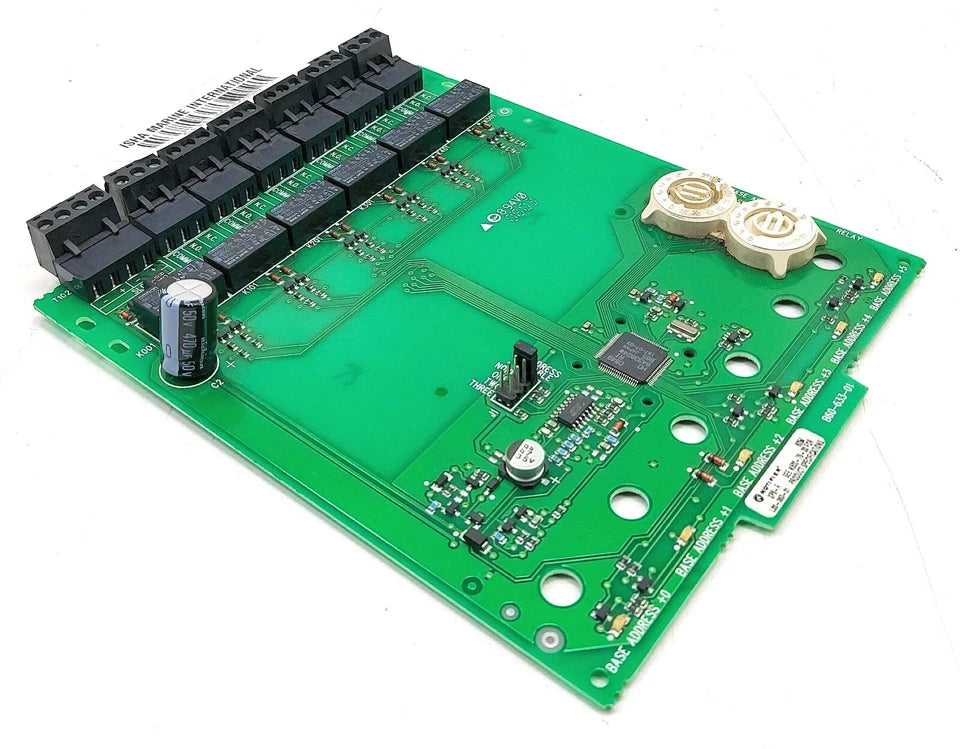

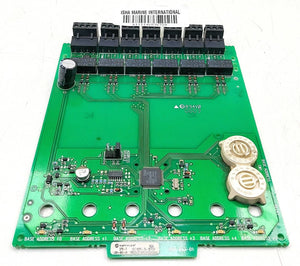

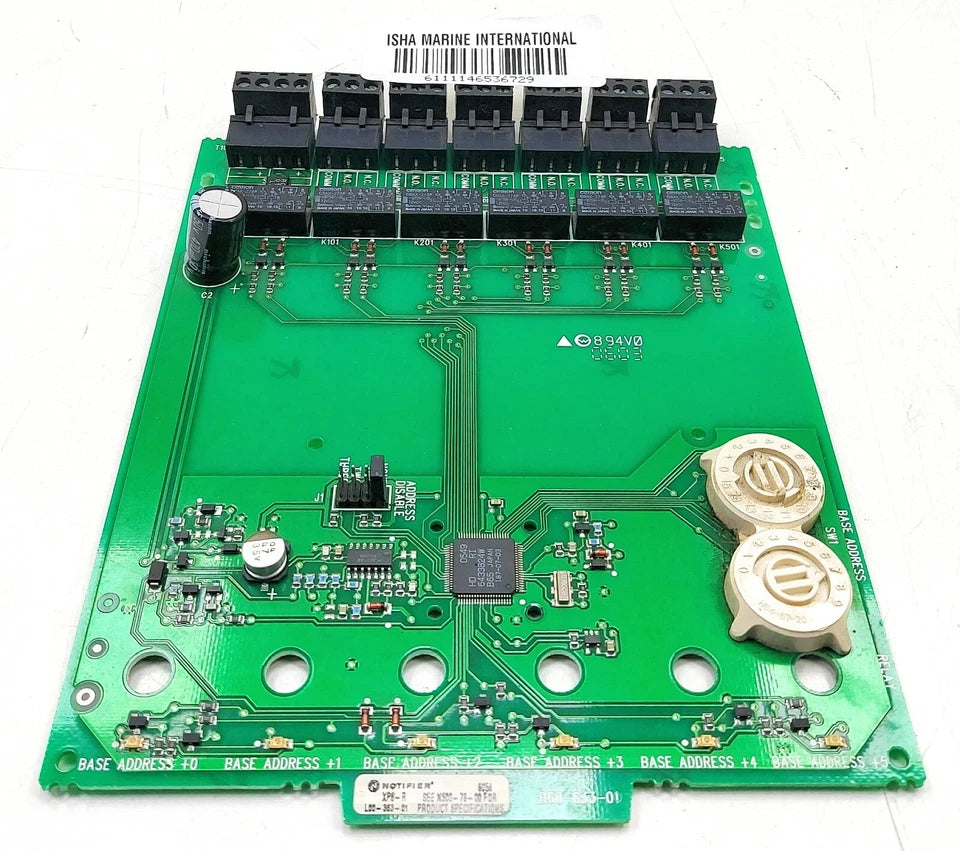

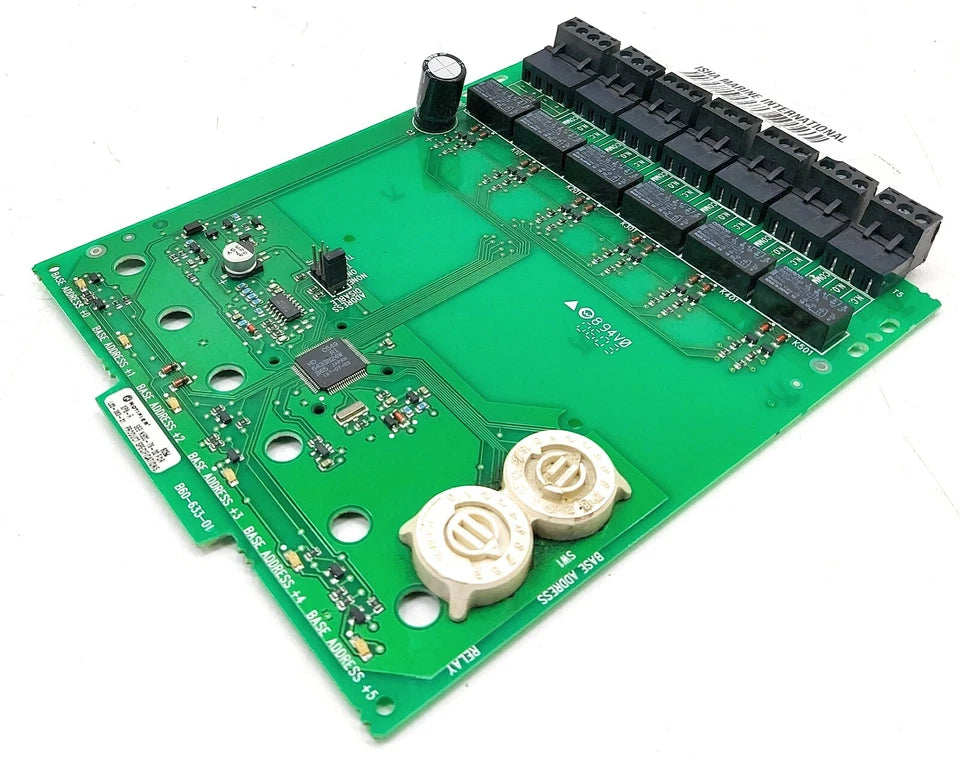

XP6-R | Notifier Six Relay Control Module
- Regular price
- $944.00
- Sale price
- $944.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XP6-R
Description
The Notifier XP6-R is a six-relay intelligent control module designed for Form-C switching in addressable fire alarm systems. It enables control panels to activate or deactivate dry-contact relays for external systems such as HVAC, door holders, or auxiliary devices.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Notifier |
| Category |
PLCs/Machine Control
|
| Part Number | XP6-R |
| Subcategory | PC Board PLC/Add-On Board |
| Normal Operating Voltage | 15–32 VDC |
| Standby Current | 1.90 mA at 24V |
| Alarm Current | 32 mA (all six relays switched and LEDs active) |
| Relay Current (Pulse) | 30 mA per relay (15.6 ms duration) |
| Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10 to 93% RH, non-condensing |
| Wire Gauge Supported | 12–18 AWG |
| Mounting Options | BB-XP cabinet, CHS-6 chassis, CAB-3/CAB-4/BB-25 Series cabinets |
| Panel Compatibility |
AM2020, AFP-1010, AFP-200, AFP-300/400, AFC-600, NFS-640, NFS-3030 |
| Address Range | First relay: 01–154; next 5 relays assigned automatically |
| Dimensions | 6.8" x 5.8" x 1.0" (172.7 x 147.3 x 25.4 mm) |
| Weight | 1.10 lbs |
Information About XP6-R
The XP6-R interfaces with Notifier intelligent fire alarm systems to provide six independently controlled Form-C dry-contact relays. Each relay can be programmed for either normally open or normally closed operation, with no need for end-of-line supervision. The module is ideal for controlling doors, fans, elevators, or other building systems in response to alarm or supervisory signals. It uses a single SLC address for the first relay and automatically assigns the next five sequential addresses to the remaining relays. Up to three unused relays may be disabled when not needed.
The XP6-R integrates green, panel-controlled LED indicators per relay to show real-time activation status. Rotary switches are used to assign the base address. Installation is flexible: the module can be mounted in BB-XP cabinets or on CHS-6 chassis in CAB-3, CAB-4, or BB-25 enclosures. Terminal blocks support 12 to 18 AWG wiring and are removable for ease of maintenance.
Key Features:
- Six Independent Relay Circuits: Each circuit provides a Form-C dry contact that can be wired normally open or closed.
- Automatic Address Assignment: One base address controls six relays with automatic offset addressing.
- Relay Disable Function: Up to three unused relay circuits can be disabled during configuration.
- Panel-Controlled LEDs: Each relay has a green LED that blinks, latches on, or turns off based on panel signals.
- Modular Mounting Options: Can be installed in BB-XP cabinets or on CHS-6 chassis in CAB-3, CAB-4, or BB-25.
- Rotary Switch Addressing: Allows manual base address setting from 01 to 154.
- Removable Terminal Blocks: Accepts 12–18 AWG wiring for quick, secure connections.
- No Supervision Required: Designed for dry-contact switching only; no circuit end-of-line devices needed.
- UL Listed and Agency Approved: Certified for use with a variety of Notifier control panels and enclosures.
- Wide System Compatibility: Operates with AM2020, AFP-1010, AFP-200, AFP-300/400, AFC-600, NFS-640, NFS-3030, and System 5000 with AIM-200.
The XP6-R offers multi-point dry contact control for fire alarm systems, delivering flexible, programmable switching for critical building operations.
