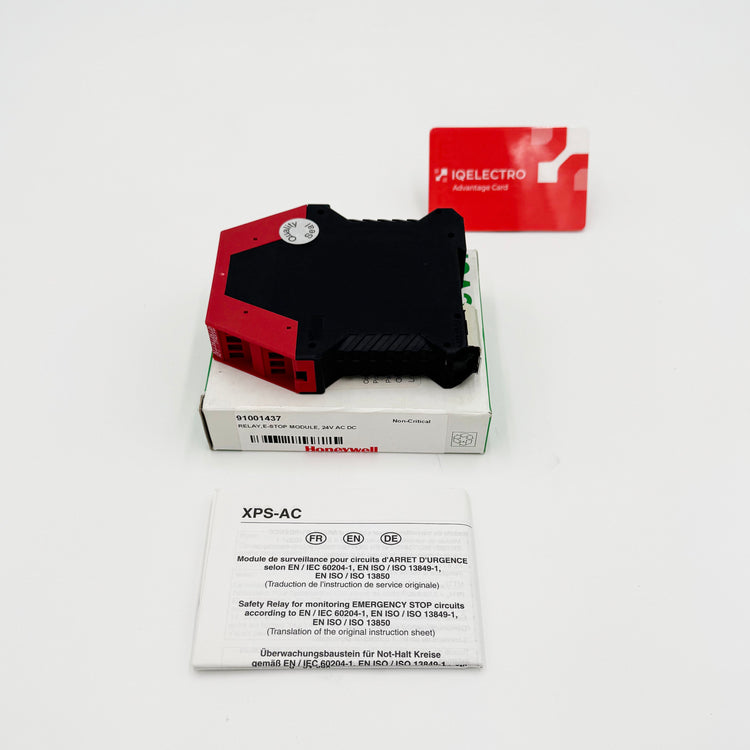

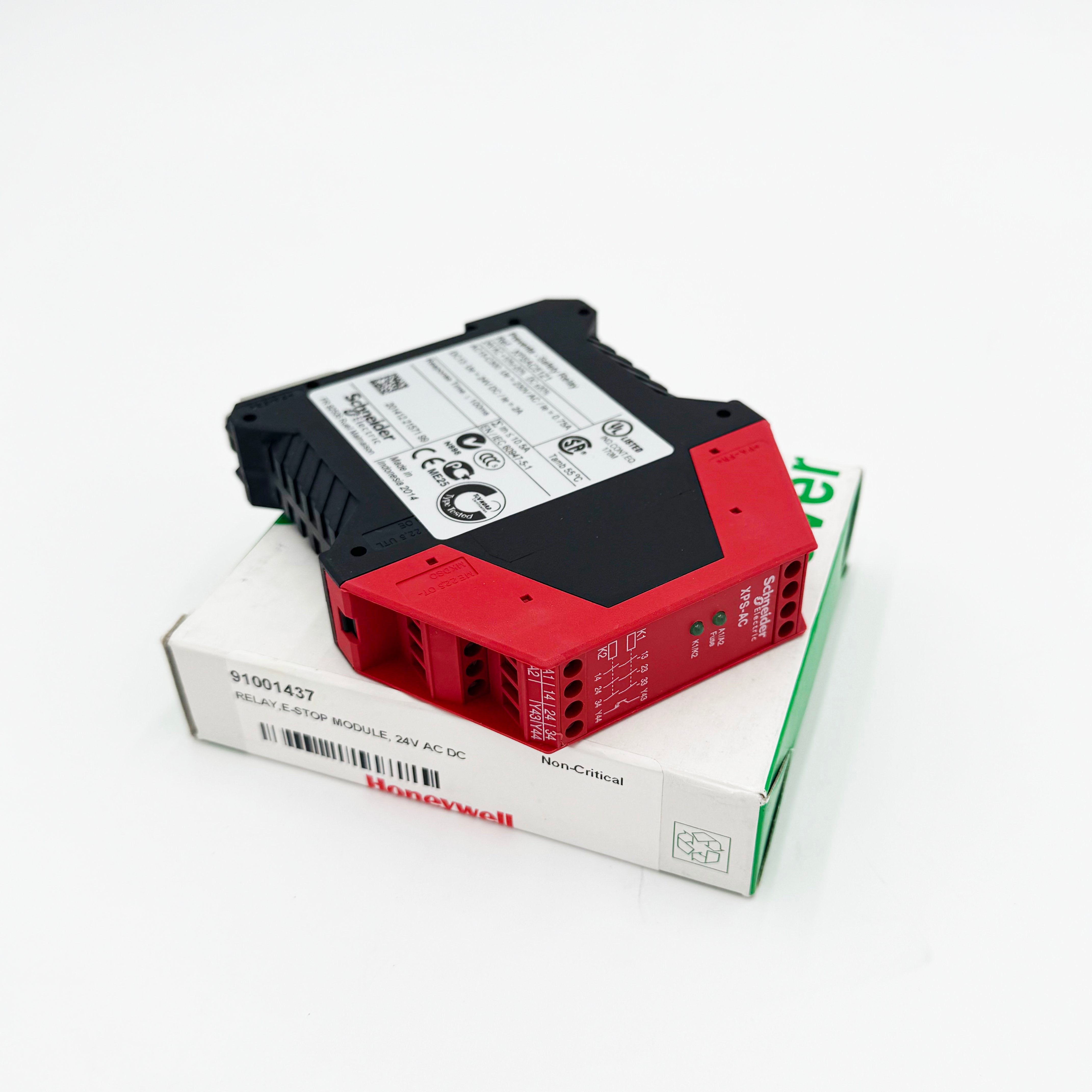

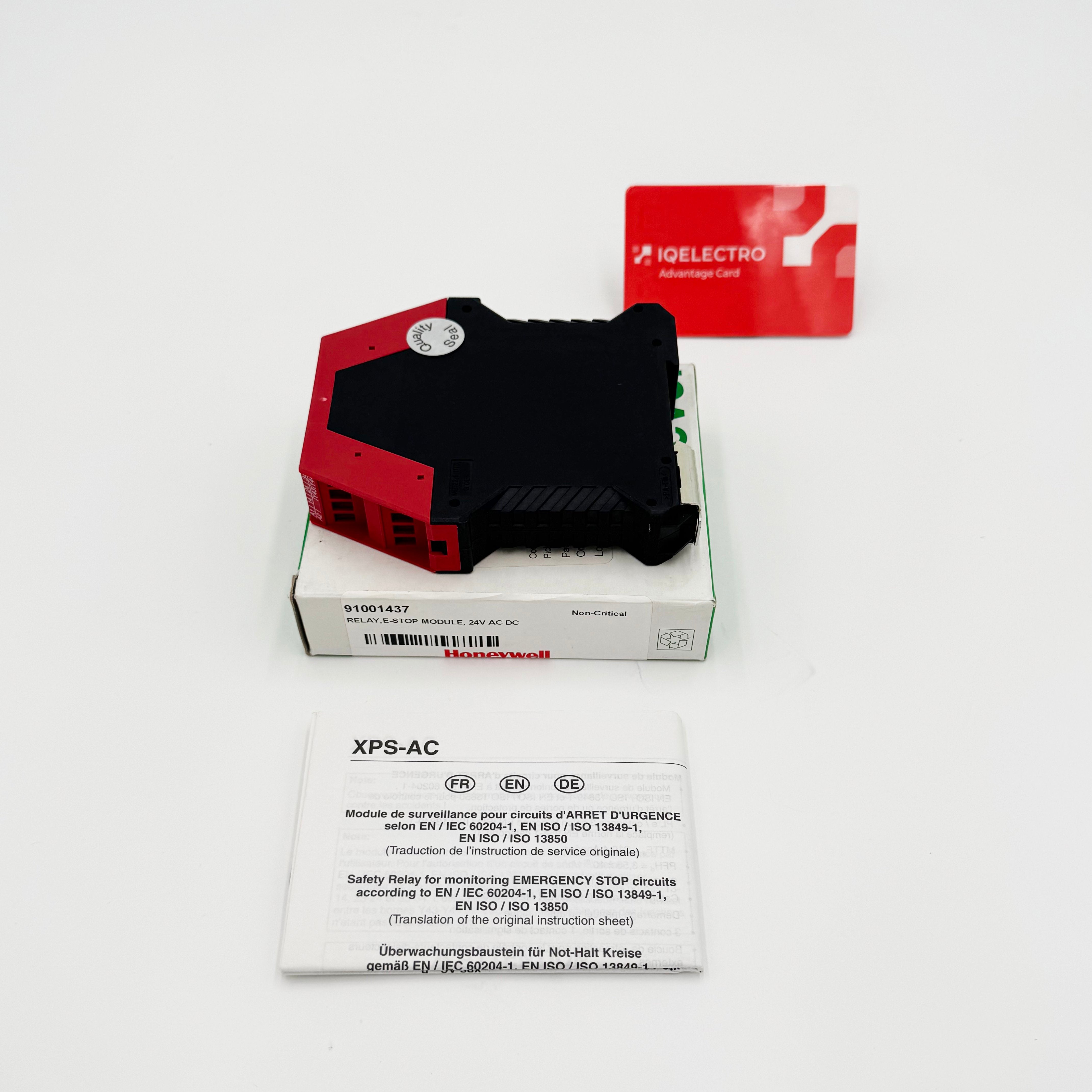

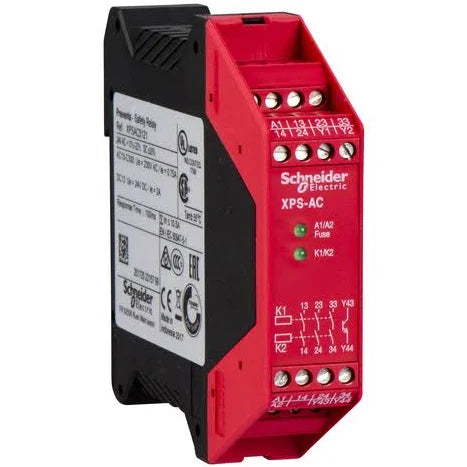

XPSAC5121 | Schneider Electric | Emergency Stop Relay
- Regular price
- $187.00
- Sale price
- $187.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XPSAC5121
Description
The Telemecanique Sensors XPSAC5121 Emergency Stop Relay is part of the Schneider Electric Harmony XPS-AC Series, designed for safety modules used in emergency stop and switch monitoring applications. Compliant with standards EN/ISO 13850, EN/IEC 60204-1, and EN/ISO 14119, these modules ensure safety requirements are met for both machine operators and machines.
Technical Specifications
|
Part # |
XPSAC5121 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
Safety Systems |
|
Subcategory |
Safety Relay |
|
Range of product |
Preventa Safety automation |
|
Product or component type |
Preventa safety module |
|
Safety module name |
XPSAC |
|
Safety module application |
For emergency stop and switch monitoring |
|
Function of module |
Emergency stop, Switch monitoring |
|
Output type |
Relay instantaneous opening, 3 NO circuit(s), volt-free |
|
Number of additional circuits |
1 solid state output |
|
[Us] rated supply voltage |
24 V AC - 20...10 % |
|
Supply frequency |
50/60 Hz |
|
Maximum power consumption in W |
1.2 W DC |
|
Maximum power consumption in VA |
2.5 VA AC |
|
[Uc] control circuit voltage |
24 V |
|
Breaking capacity |
180 VA holding AC-15 C300 relay output |
|
Breaking capacity |
1.5 A at 24 V (DC-13) time constant: 50 ms for relay output |
|
Output thermal current |
6 A per relay for relay output |
|
[Ith] conventional free air thermal current |
10.5 A |
|
Associated fuse rating |
4 A gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
|
Minimum output current |
10 mA for relay output |
|
Minimum output voltage |
16 V for relay output |
|
Maximum response time on input open |
100 ms |
|
[Ui] rated insulation voltage |
300 V (pollution degree 2) conforming to IEC 60947-5-1 |
|
Local signalling |
2 LEDs |
|
Current consumption |
40 mA at 24 V DC on power supply, 90 mA at 24 V AC on power supply |
|
Mounting support |
35 mm symmetrical DIN rail |
|
Net weight |
0.16 kg |
|
Ambient air temperature for operation |
-10…55 °C |
|
Ambient air temperature for storage |
-25…85 °C |
Information About XPSAC5121
The Telemecanique Sensors XPSAC5121 Emergency Stop Relay is a component of the Schneider Electric Harmony XPS-AC Series, designed specifically for safety modules used in emergency stop and switch monitoring systems. These safety modules are essential for conforming to standards EN/ISO 13850, EN/IEC 60204-1, and EN/ISO 14119, ensuring compliance with safety requirements in industrial environments.
The XPSAC5121 features include immediate cessation of hazardous movements upon receipt of a stop instruction from the operator or upon detecting a fault within the safety circuit itself. To facilitate diagnostics, the module is equipped with LEDs that provide real-time information on the monitoring circuit status.
This relay module boasts 3 safety outputs along with a solid-state output for signaling to the PLC (Programmable Logic Controller). With a maximum achievable safety level of PL e/Category 4 as per EN/ISO 13849-1 standards, and SILCL3 conformity as per EN/IEC 61508 and EN/IEC 62061, the XPSAC5121 ensures robust safety measures are in place.
Technical specifications of the XPSAC5121 include a supply voltage of 24 VAC/DC and a current rating of 2.5A. The module features 3 Normally Open (NO) contacts and is designed for DIN Rail mounting with screw clamp terminals, providing ease of installation and secure connections.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
