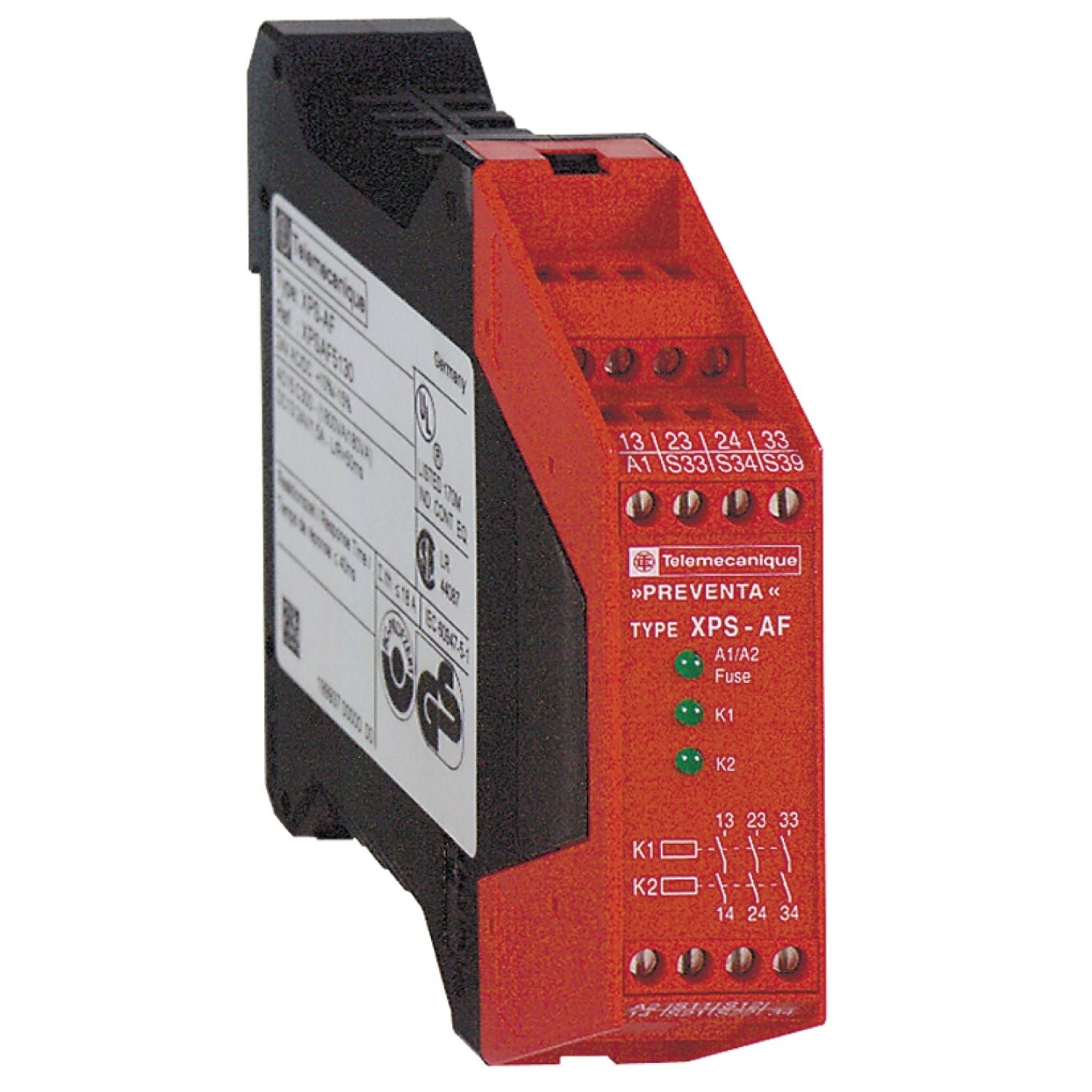

XPSAF5130 | Schneider Electric Emergency Stop
- Regular price
- $179.00
- Sale price
- $179.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: XPSAF5130
Description
The XPSAF5130, part of the XPSAF module series, functions as an emergency stop safety module compatible with both 24 V AC and DC power supplies. It is designed to monitor emergency shutdown pushbuttons and limit switches, ensuring compliance with Performance Level PL e/Category 4 according to EN/ISO 13849-1 standards and SILCL3 as per EN/IEC 61508 and EN/IEC 62061 regulations. This module is suitable for monitoring emergency stop circuits (EN/ISO 13850, EN/IEC 60204-1) and electrical switches activated by protective devices (EN/ISO 14119). The 24V AC supply capability allows direct connection via auxiliary transformers such as ABT7 or ABL6, facilitating simplified installation procedures.
Technical Specifications
|
Part # |
XPSAF5130 |
|
Category |
Safety Systems |
|
Subcategory |
Safety Relay Range of product |
|
Product or component type |
Preventa safety module |
|
Safety module name |
XPSAF |
|
Safety module application |
For emergency stop and switch monitoring |
|
Safety level |
- Can reach PL e/category 4 conforming to EN/ISO 13849-1 |
|
|
- Can reach category 3 conforming to EN/IEC 62061 |
|
Safety reliability data |
- DC > 99 % conforming to EN/ISO 13849-1 |
|
|
- MTTFd = 243 years conforming to EN/ISO 13849-1 |
|
|
- PFHd = 4.62E-9 1/h conforming to EN/IEC 62061 |
|
Type of start |
Configurable |
|
Output type |
Relay instantaneous opening, 3 NO circuit(s), volt-free |
|
Number of additional circuits |
0 |
|
[Us] rated supply voltage |
24 V AC - 15...10 % |
|
|
24 V DC - 15...10 % |
|
Synchronisation time between inputs |
Unlimited |
|
Supply frequency |
50/60 Hz |
|
Maximum power consumption in VA |
5 VA AC |
|
Input protection type |
Internal, electronic |
|
[Uc] control circuit voltage |
24 V |
|
Maximum line resistance |
90 Ohm |
|
Breaking capacity |
- 180 VA holding AC-15 C300 relay output |
|
|
- 1800 VA inrush AC-15 C300 relay output |
|
Breaking capacity |
1.5 A at 24 V (DC-13) time constant: 50 ms for relay output |
|
Output thermal current |
6 A per relay for relay output |
|
[Ith] conventional free air thermal current |
18 A |
|
Minimum output current |
10 mA for relay output |
|
Minimum output voltage |
17 V for relay output |
|
Maximum response time on input open |
40 ms |
|
Local signalling |
3 LEDs |
|
Current consumption |
30 mA at 24 V AC on power supply |
|
Mounting support |
35 mm symmetrical DIN rail |
|
Net weight |
0.25 kg |
|
Ambient air temperature for operation |
-25…60 °C |
|
Ambient air temperature for storage |
-40…85 °C |
Information About XPSAF5130
The XPSAF5130, part of the XPSAF safety module series, is designed for monitoring emergency shutdown pushbuttons and limit switches in industrial safety applications. It operates with both 24V AC and DC power supplies, offering flexibility in installation and compatibility with various system configurations.
Certified to meet Performance Level PL e/Category 4 according to EN/ISO 13849-1 and SILCL3 standards as per EN/IEC 61508 and EN/IEC 62061, the module ensures high reliability in safety-critical environments. This certification underscores its capability to provide robust safety measures, crucial for compliance with stringent industrial safety norms.
The module is specifically suited for monitoring emergency stop circuits compliant with EN/ISO 13850 and EN/IEC 60204-1 standards. It also facilitates electrical monitoring of switches activated by protection devices conforming to EN/ISO 14119, enhancing overall system safety and operational integrity.
