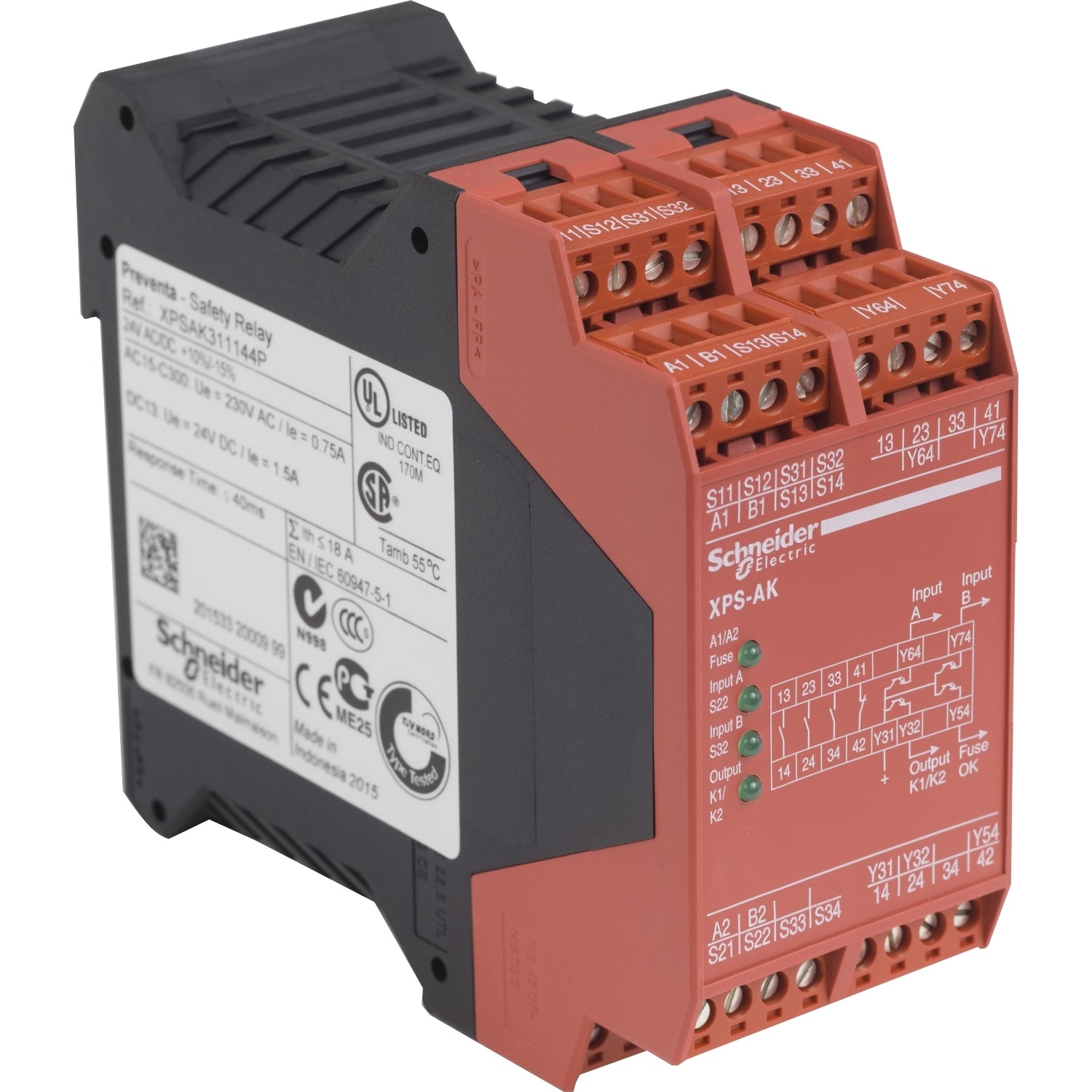

XPSAK311144P | Schneider Electric Module XPSAK - Emergency stop - 24 V AC DC
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Do you need help?
Product Description P/N: XPSAK311144P
Description
The XPSAK311144P by Schneider Electric is an essential module ensuring safety in industrial environments. Designed for emergency stop applications, it operates seamlessly within 24V AC/DC systems, providing reliable and immediate response to critical situations, safeguarding both equipment and personnel.
Technical Specifications
Brand | Schneider Electric |
Part Number | XPSAK311144P |
Category | Safety Systems |
Subcategory | Safety Relay |
Coil Voltage | 24 VAC, 24 VDC |
Relay Contact Form | 3 Form A (3PST-NO) |
Contact Termination | Plug In |
Contact Rating | 6 A |
Contact Form | 3PST (3 Form A) |
Current Rating - Max | 6 A |
Product Type | Safety Relays |
Series | XPS |
Maximum Operating Temperature | 55 °C |
Minimum Operating Temperature | -10 °C |
Information About XPSAK311144P
This XPSAK safety module monitors emergency shutdown pushbuttons, limit switches, light curtains and safety mats/edges. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. It can also be used for electrical monitoring of switches activated by protection devices, with optional selection of synchronisation time between signals, monitoring of 4-wire sensing mats or edges. And monitoring of type 4 light curtains conforming to EN/IEC 61496-1 which have solid-state safety outputs with test function (light curtains XUSL). 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It is compatible with emergency push buttons, limit switches, safety light curtains and safety mats/edges, the 4 most common safety sensors in the industry. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.
The XPSAK311144P by Schneider Electric is a safety relay module crucial for emergency stop applications in industrial settings. Compatible with both 24V AC and DC systems, it ensures universal compatibility and reliability. With a coil voltage rating of 24V AC/DC, this module offers three Form A (3PST-NO) relay contact forms terminated via plug-in connectors, enabling easy installation and maintenance.
The module's contact rating of 6A and current rating of 6A max make it suitable for controlling various safety circuits. Operating within a wide temperature range from -10°C to 55°C, it remains functional in diverse environmental conditions. As part of the XPS series, it guarantees high-quality performance and adherence to safety standards, providing peace of mind in critical situations.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
