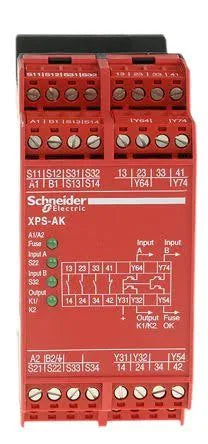

XPSAK351144P | Schneider Electric Display Safety Relay Module
XPSAK351144P | Schneider Electric Display Safety Relay Module

XPSAK351144P | Schneider Electric Display Safety Relay Module

Part #: XPSAK351144P Manufactured by: Schneider Electric
Regular price
$759.00
Sale price
$759.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
module XPSAK - Emergency stop - 120 V AC
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: XPSAK351144P
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
XPSAK351144P | Schneider Electric Display Safety Relay Module
    XPSAK351144P | Schneider Electric Display Safety Relay Module
XPSAK351144P | Schneider Electric Display Safety Relay Module

Product Description P/N: XPSAK351144P

Description / Specifications

Description

The Schneider XPSAK351144P is a Preventa safety module suitable for emergency stop, switch, sensing mat/edges or safety light curtain monitoring. This product includes functions, such as: monitoring of electro-sensitive protection equipment, multiple emergency stop monitoring 2-channel wiring, monitoring of a movable guard, monitoring of a movable guard associated with 2 switches and automatic start, emergency stop monitoring 1-channel wiring, emergency stop with 2 NC contacts monitoring 2-channel wiring, sensing mat and edges monitoring and proximity sensor monitoring. This module has a relay instantaneous opening output type, 3 NO circuits, 1 NC + 4 solid state outputs and a rated supply voltage of 120V.



Technical Specifications



Brand Schneider Electric
Part Number XPSAK351144P
Category Safety Systems
Subcategory Safety Relay
Series Preventa XPS
Breaking Capacity In Ac 15 C300: inrush 1800, maintained 180
Breaking Capacity In Dc 13 24V / 1.5A L / R = 50 ms
Consumption < 6
Control Unit Voltage 24 VDC
Led Display 4
Machine Safety Type Emergency stop, switch, sensing mat/edges or safety light curtain monitoring
Max Thermal Current 6
Max Total Thermal Current 18
Minimum Output Current 10
Minimum Output Voltage 17
Operating Temperature -10 to 55°C
Output Fuse Protection 4A
Rated Insulation Voltage 300
Safety Contacts 3 N/O
Storage Temperature -25 to 85C
Supply Frequency 50/60





Information About XPSAK351144P

This XPSAK safety module monitors emergency shutdown pushbuttons, limit switches, light curtains and safety mats/edges. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. It can also be used for electrical monitoring of switches activated by protection devices, with optional selection of synchronisation time between signals, monitoring of 4-wire sensing mats or edges. And monitoring of type 4 light curtains conforming to EN/IEC 61496-1 which have solid-state safety outputs with test function (light curtains XUSL). It is compatible with emergency push buttons, limit switches, safety light curtains and safety mats/edges, the 4 most common safety sensors in the industry. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.

Features:
Monitoring Emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1
Electrical monitoring of switches activated by protection devices, with optional selection of synchronisation time between signals
Monitoring 4-wire sensing mats or edges
Monitoring type 4 light curtains conforming to EN/IEC 61496-1 which have solid-state safety outputs with test function (light curtains XUSL)
Housed in a compact enclosure, the modules have 3 safety outputs, a relay signalling output and 4 solid-state signalling outputs for signalling to the process PLC
Harmony safety modules XPSAKppppP incorporate removable terminal blocks, thus optimising machine maintenance
To aid diagnostics, the modules have 4 LEDs on the front face which provide information on the monitoring circuit status
The Start button monitoring function is configurable depending on the wiring




Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Schneider XPSAK351144P is a Preventa safety module suitable for emergency stop, switch, sensing mat/edges or safety light curtain monitoring. This product includes functions, such as: monitoring of electro-sensitive protection equipment, multiple emergency stop monitoring 2-channel wiring, monitoring of a movable guard, monitoring of a movable guard associated with 2 switches and automatic start, emergency stop monitoring 1-channel wiring, emergency stop with 2 NC contacts monitoring 2-channel wiring, sensing mat and edges monitoring and proximity sensor monitoring. This module has a relay instantaneous opening output type, 3 NO circuits, 1 NC + 4 solid state outputs and a rated supply voltage of 120V.



Technical Specifications



Brand Schneider Electric
Part Number XPSAK351144P
Category Safety Systems
Subcategory Safety Relay
Series Preventa XPS
Breaking Capacity In Ac 15 C300: inrush 1800, maintained 180
Breaking Capacity In Dc 13 24V / 1.5A L / R = 50 ms
Consumption < 6
Control Unit Voltage 24 VDC
Led Display 4
Machine Safety Type Emergency stop, switch, sensing mat/edges or safety light curtain monitoring
Max Thermal Current 6
Max Total Thermal Current 18
Minimum Output Current 10
Minimum Output Voltage 17
Operating Temperature -10 to 55°C
Output Fuse Protection 4A
Rated Insulation Voltage 300
Safety Contacts 3 N/O
Storage Temperature -25 to 85C
Supply Frequency 50/60





Information About XPSAK351144P

This XPSAK safety module monitors emergency shutdown pushbuttons, limit switches, light curtains and safety mats/edges. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. It can also be used for electrical monitoring of switches activated by protection devices, with optional selection of synchronisation time between signals, monitoring of 4-wire sensing mats or edges. And monitoring of type 4 light curtains conforming to EN/IEC 61496-1 which have solid-state safety outputs with test function (light curtains XUSL). It is compatible with emergency push buttons, limit switches, safety light curtains and safety mats/edges, the 4 most common safety sensors in the industry. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.

Features:
Monitoring Emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1
Electrical monitoring of switches activated by protection devices, with optional selection of synchronisation time between signals
Monitoring 4-wire sensing mats or edges
Monitoring type 4 light curtains conforming to EN/IEC 61496-1 which have solid-state safety outputs with test function (light curtains XUSL)
Housed in a compact enclosure, the modules have 3 safety outputs, a relay signalling output and 4 solid-state signalling outputs for signalling to the process PLC
Harmony safety modules XPSAKppppP incorporate removable terminal blocks, thus optimising machine maintenance
To aid diagnostics, the modules have 4 LEDs on the front face which provide information on the monitoring circuit status
The Start button monitoring function is configurable depending on the wiring




Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
