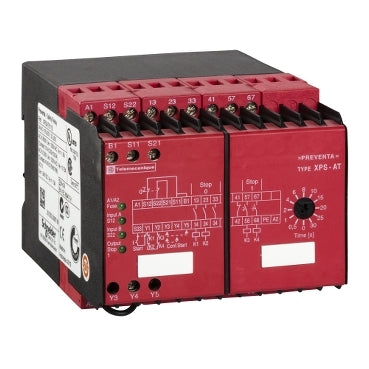

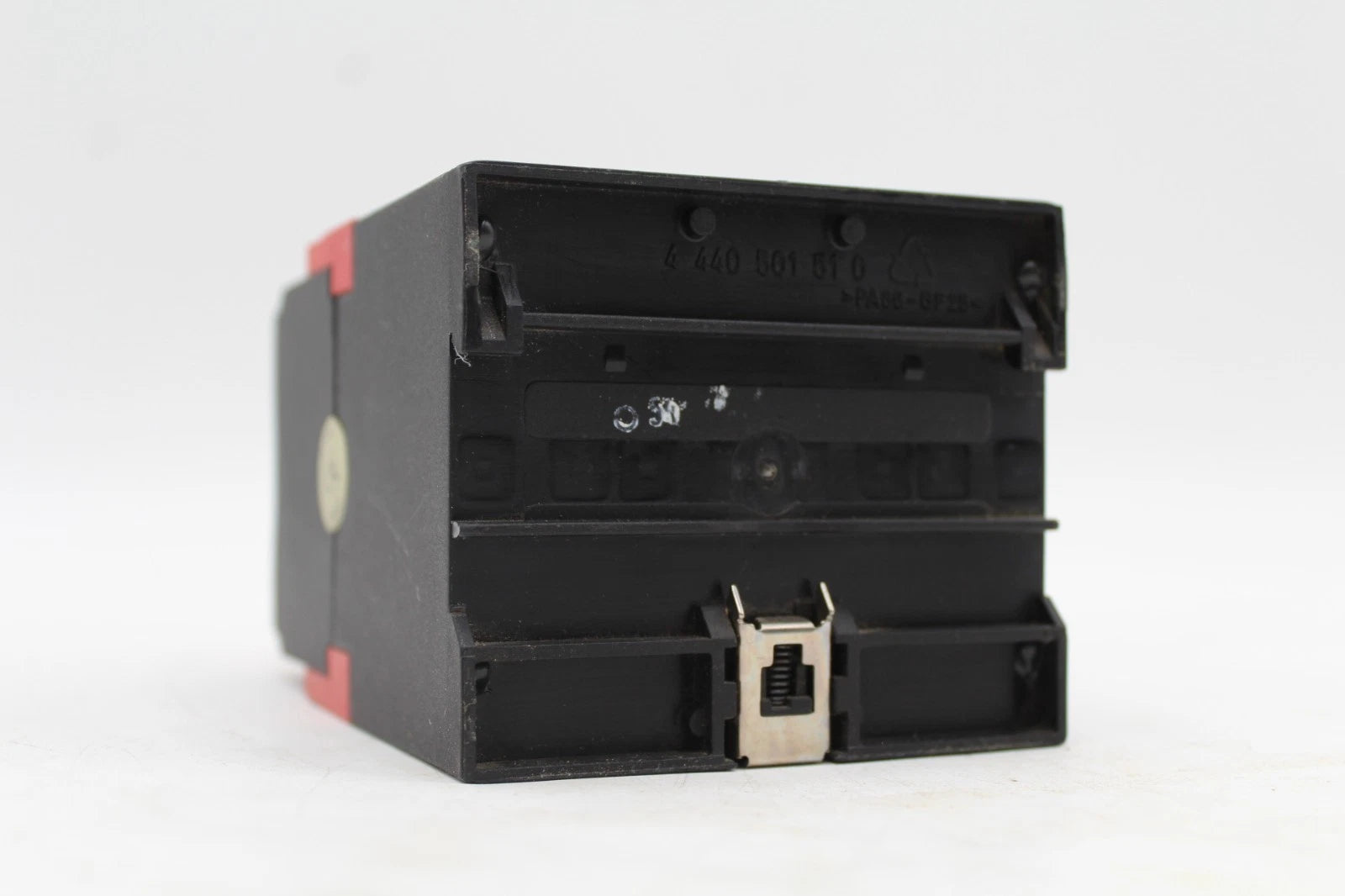

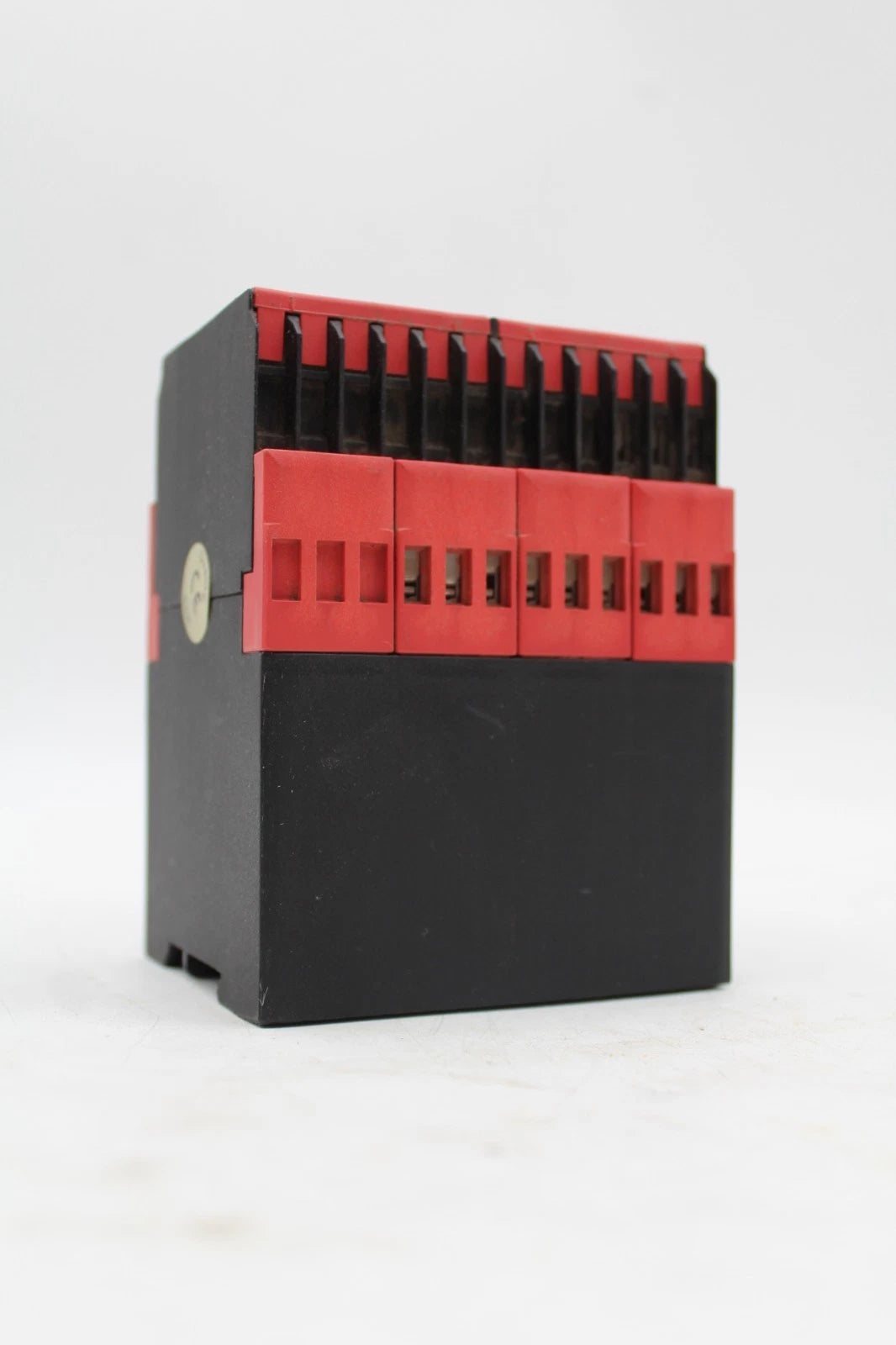

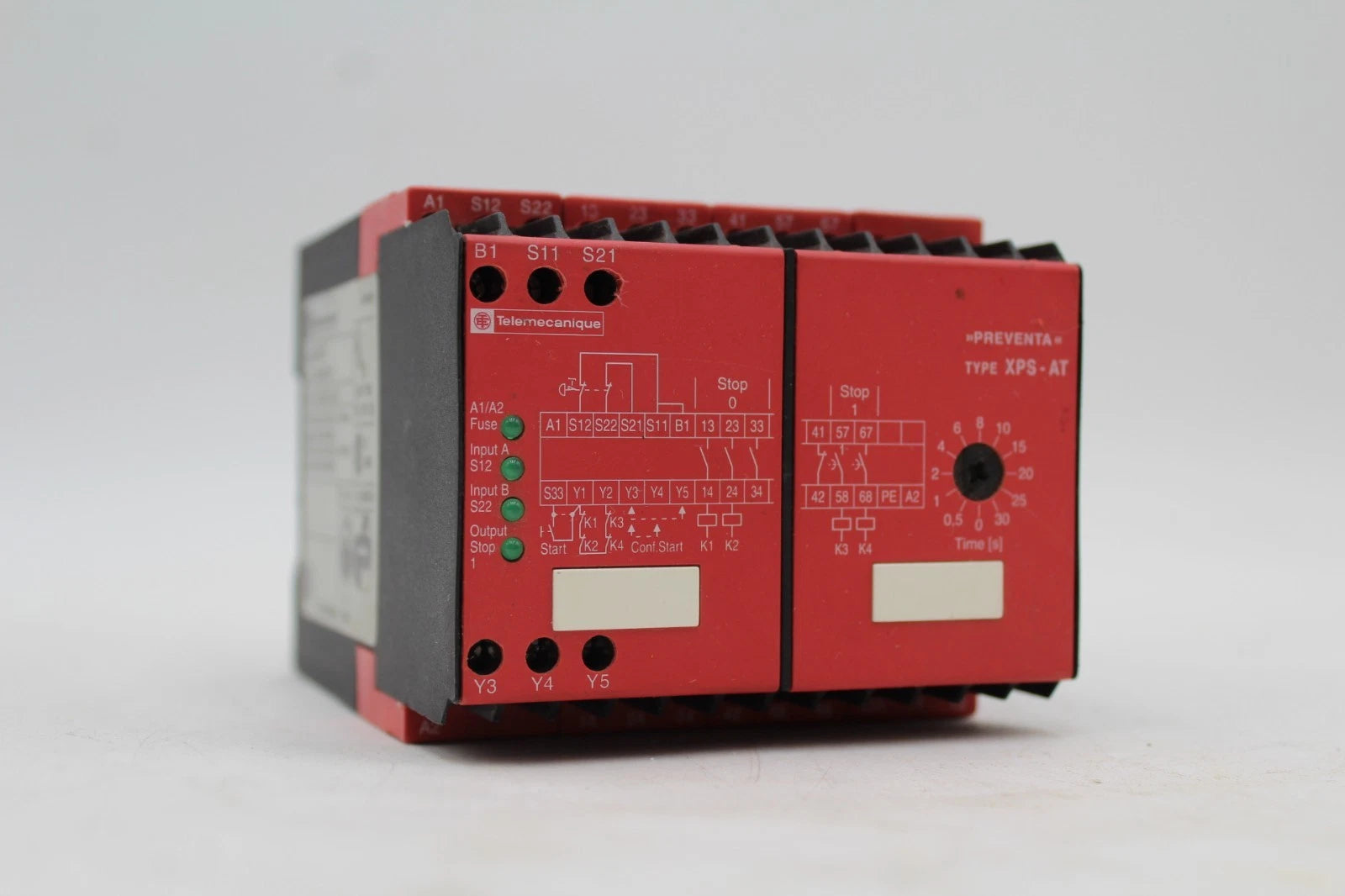

XPSAT5110 | Schneider Electric Preventa Safety Relay, Dual-Channel, 24V DC, 2NO/1NC
- Regular price
- $1,039.00
- Sale price
- $1,039.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XPSAT5110
Description
The Schneider Electric XPSAT5110 is a Preventa safety relay designed for monitoring emergency stop devices and safety interlock switches. It features dual-channel input capability and redundant safety outputs to ensure reliable machine shutdown in hazardous conditions. Operating on a 24V DC supply, the module is suited for integration into safety-rated automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Safety Relay |
| Part Number | XPSAT5110 |
| Subcategory | Preventa Safety Relay |
| Control Voltage | 24V DC |
| Operating Supply Voltage | 24V |
| Number of Channels | 2 |
| Contact Current Rating | 1.5 A |
| Output Configuration | SP (Relay Outputs: 2 NO safety + 1 NC auxiliary) |
| Termination | Screw terminals |
| Reset Modes | Manual or automatic (via wiring) |
| Safety Rating | SIL 3, PL e |
| Indicators | LED status indicators |
| Width | 77.5 mm |
| Length | 90 mm |
| Depth | 120 mm |
| Mounting | DIN rail |
Information About XPSAT5110
The XPSAT5110 is part of the Schneider Electric Preventa XPS safety relay family, developed to provide reliable safety monitoring and control functions in industrial environments. It supports dual-channel input circuits for emergency stop pushbuttons or safety interlock switches, ensuring fault detection and redundancy. The module offers 2 safety NO (normally open) relay outputs and 1 auxiliary NC (normally closed) output to control machine contactors and signal system status. It operates on 24V DC control supply and includes automatic or manual reset functionality selectable by wiring. Built-in LED indicators provide real-time status of power, input channels, and output states, simplifying commissioning and troubleshooting.
Key Features:
- Design: Dual-channel safety relay module for emergency stop and gate monitoring.
- Inputs: Dual-channel safety inputs with cross-fault detection.
- Outputs: 2 safety NO relay outputs + 1 auxiliary NC signaling output.
- Supply Voltage: Operates on 24V DC.
- Reset Modes: Supports automatic or manual reset operation.
- Diagnostics: LED indicators for power, input, and output status.
- Safety Rating: Certified up to SIL 3 (IEC 61508) and PL e (ISO 13849-1).
- Application Range: Suitable for machinery, conveyors, and automated production systems.
The XPSAT5110 delivers the safety integrity, fault detection, and reliability required for protecting operators and equipment in industrial automation systems.
