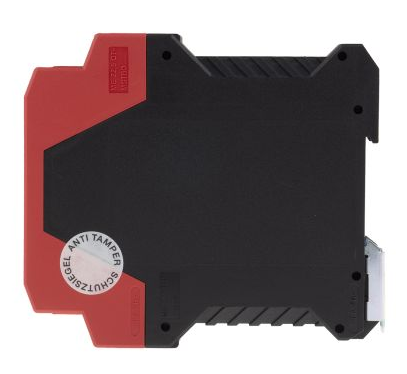

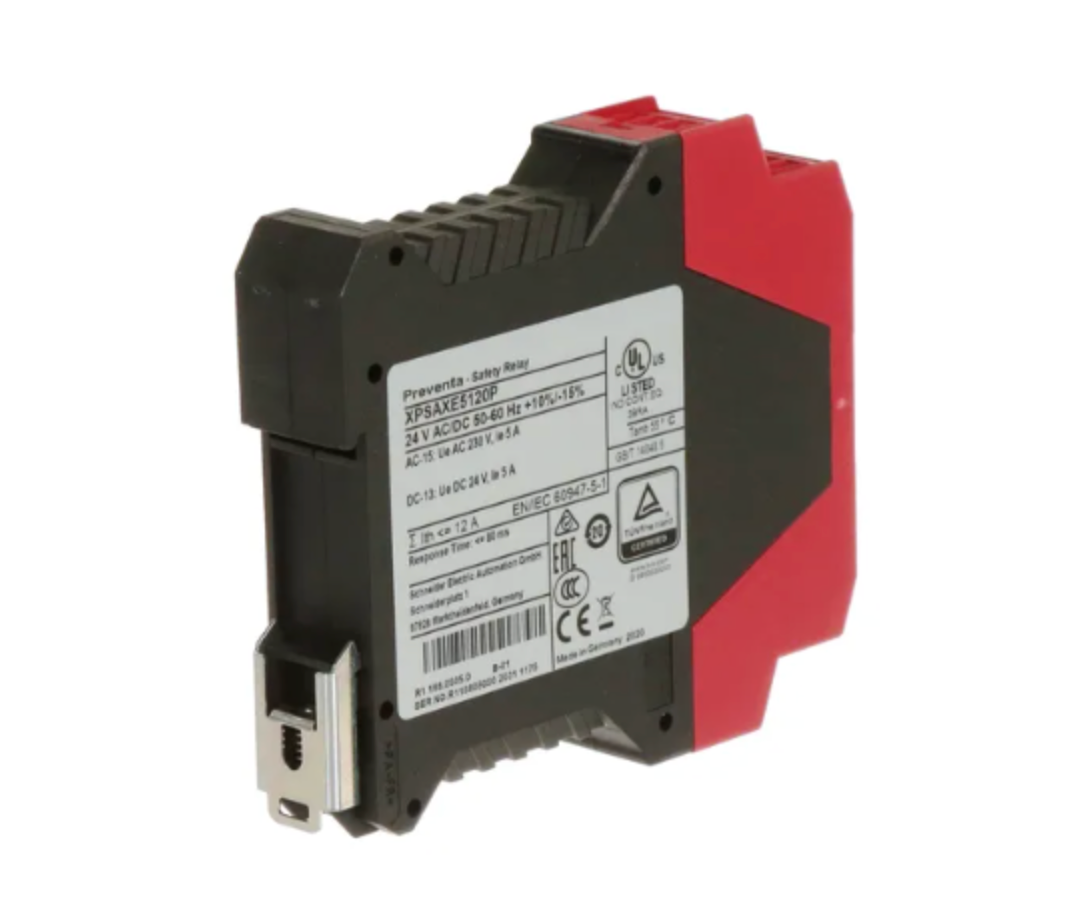

XPSAXE5120P | Schneider Electric Preventa Safety Relay for Emergency Stop Circuits
- Regular price
- $356.00
- Sale price
- $356.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XPSAXE5120P
Description
The Schneider Electric XPSAXE5120P is a configurable safety relay designed to monitor emergency stop circuits and safety interlocks in industrial machinery. It provides reliable safety outputs for machine stop functions and is commonly used in applications requiring compliance with international functional safety standards. This module supports dual-channel inputs to ensure controlled shutdown and operator protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Safety Relays |
| Part Number | XPSAXE5120P |
| Subcategory | Emergency Stop Safety Relays |
| Series | Preventa XPS |
| Supply Voltage | 24 V DC |
| Input Type | Dual-channel safety inputs |
| Safety Outputs | 3 NO safety contacts |
| Auxiliary Output | 1 NC signaling contact |
| Reset Type | Monitored manual reset |
| Mounting Method | DIN rail |
| Safety Level | Category 4 / PL e / SIL 3 |
| Standards Compliance | EN ISO 13849-1, IEC 62061, IEC 61508 |
| Operating Temperature | –25 °C to +55 °C |
| Weight | Approx. 0.25 kg |
Information About XPSAXE5120P
The XPSAXE5120P is part of Schneider Electric’s Preventa XPS safety relay series, engineered for safeguarding machinery and industrial processes. It features a compact DIN-rail mount design with reinforced isolation and robust internal diagnostics for continuous safety monitoring. The relay is compatible with emergency stop buttons, safety switches, and other electromechanical safety devices used in control panels. Utilizing forced-guided contacts and monitored reset logic, it supports safety architectures up to SIL 3 and Category 4, making it suitable for demanding automation environments.
Key Features:
- Preventa XPS Series Module: Designed specifically for machine safety and emergency stop monitoring.
- Dual-Channel Safety Inputs: Ensures redundancy and fault detection for safety circuits.
- Monitored Manual Reset: Prevents unintended restart after safety events.
- Forced-Guided Relay Contacts: Provides reliable detection of contact welding or failure.
- Multiple Safety Outputs: Supports control of safety contactors and machine stop circuits.
- DIN-Rail Mounting: Allows straightforward installation in standard control cabinets.
- High Safety Compliance: Supports Category 4, SIL 3, and PL e safety requirements.
The XPSAXE5120P delivers the reliability and precision required for critical machine safety and emergency stop control in industrial automation systems.
