XPSUAF13AP | Schneider Electric | Safety module
- Regular price
- $359.00
- Sale price
- $359.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XPSUAF13AP
Description

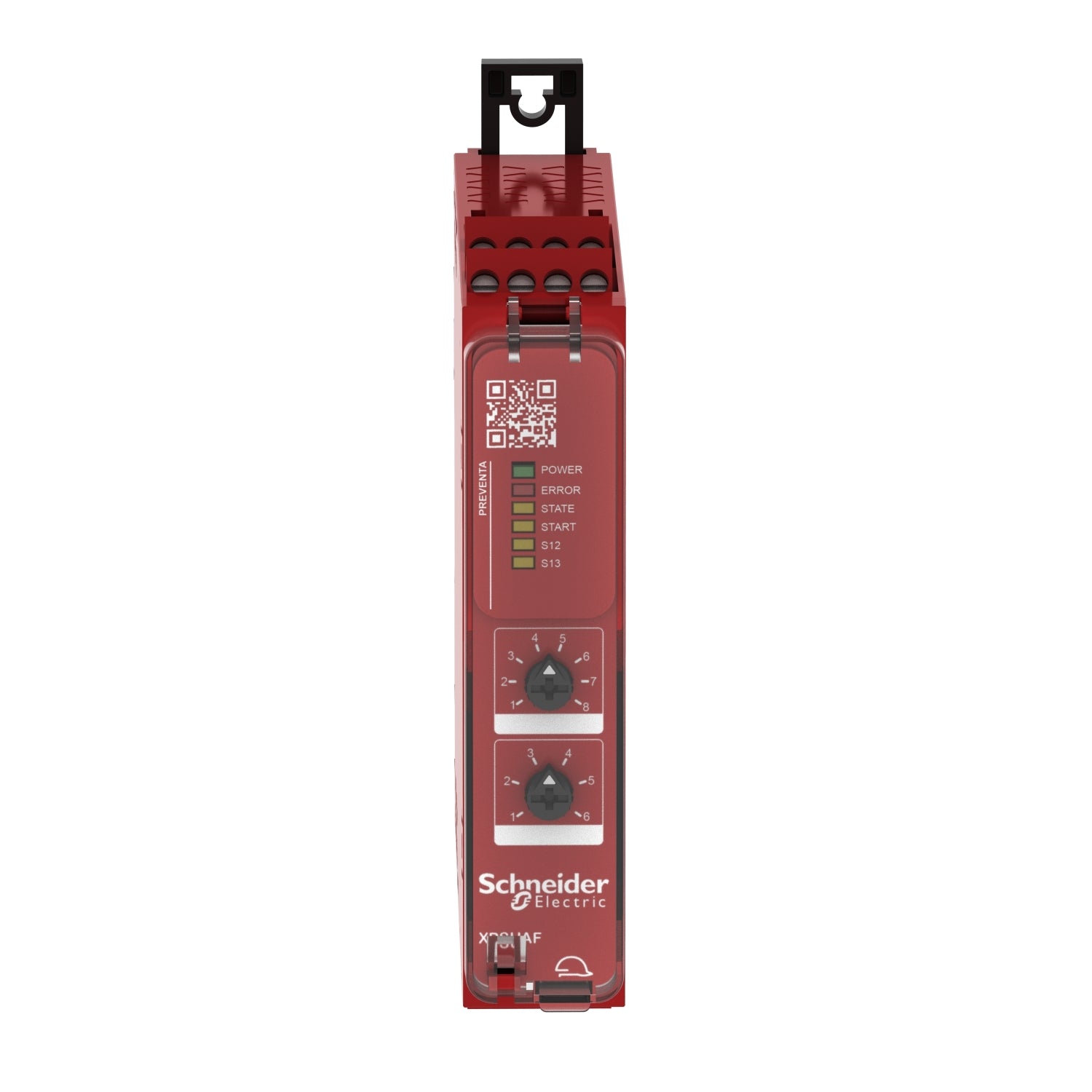

The XPSUAF13AP is a safety module belonging to the Harmony XPSU series. It is designed for Cat 4 applications and features potential-free 2 NC, NO NC, and 2 PNP configurations. Operating at 24V AC or DC, it utilizes screw-type removable terminal blocks for connectivity.
This safety relay is intended for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch, or Safety light curtain. It offers pre-defined safety functions and selectable safety functions via rotary selectors. The module incorporates 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 3 NO safety outputs, and 1 solid-state diagnostic output with complete status information.
Technical Specifications
|
Part # |
XPSUAF13AP |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Category |
Safety Systems |
|
Subcategory |
Safety Relay |
|
[Us] rated supply voltage |
24 V AC - 15...10 % |
|
Type of start |
Automatic/manual/monitored |
|
Power consumption in W |
2.0 W 24 V DC |
|
Power consumption in VA |
5.0 VA 24 V AC 50/60 Hz |
|
Input protection type |
Internal, electronic |
|
Safety outputs |
3 NO |
|
Safety inputs |
2 safety input 24 V DC 5 mA |
|
Maximum wire resistance |
500 Ohm |
|
Control outputs |
3 on/off configurable pulsed output |
|
Input/output type |
Semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related |
|
[Ith] conventional free air thermal current |
8 A |
|
Associated fuse rating |
10 A gG for NO relay output circuit conforming to IEC 60947-1 |
|
Minimum output current |
10 mA for relay output |
|
Minimum output voltage |
15 V for relay output |
|
Maximum response time on input open |
20 ms |
|
[Ui] rated insulation voltage |
250 V (pollution degree 2) conforming to IEC 60947-1 |
|
[Uimp] rated impulse withstand voltage |
4 kV overvoltage category II conforming to IEC 60947-1 |
|
Ambient air temperature for storage |
-25…85 °C |
|
Relative humidity |
5…95 % non-condensing |
Information About XPSUAF13AP
The XPSUAF13AP, part of the Harmony XPSU safety module series, is a safety relay designed for monitoring various safety devices including Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch, or Safety light curtain. It operates with a power supply of 24V AC/DC and features a screw removable terminal block for ease of installation.
This universal safety module incorporates pre-defined safety functions or selectable safety functions via rotary selectors. It includes 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 3 NO safety outputs, and 1 solid-state diagnostic output providing complete status information.
The XPSUAF13AP achieves a maximum safety level of PLe/Category 4 in compliance with ISO 13849-1, SILC L 3 conforming to IEC 62061, and SIL 3 conforming to IEC 61508 standards. Weighing 0.200 kg, its dimensions are 22.5mm (Width) x 120mm (Depth) x 100mm (Height).
This safety relay finds applications across various industries such as Food and Beverage, Hoisting, Material Handling, Material Working, and Packaging. It conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, and IEC62061 functional safety standards, and holds certifications from cULus, TÜV, EAC, CCC, and KC marking.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
