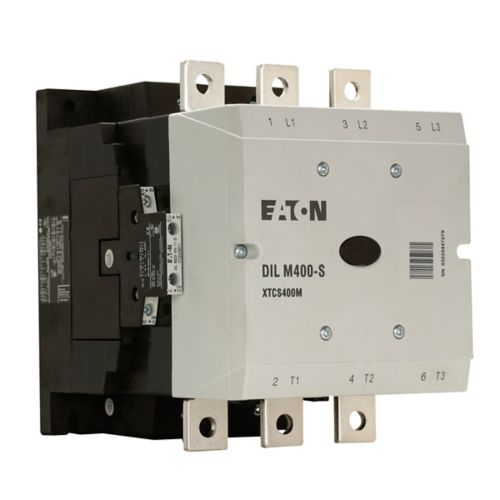

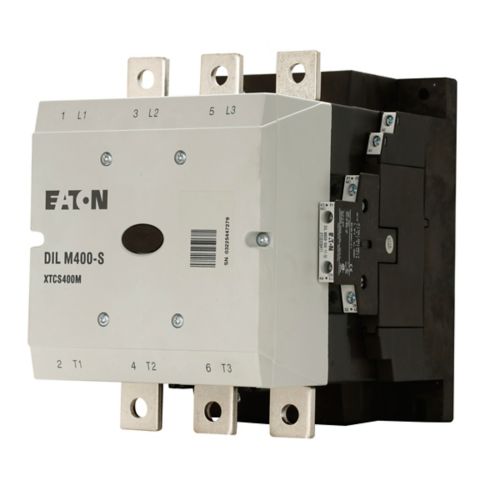

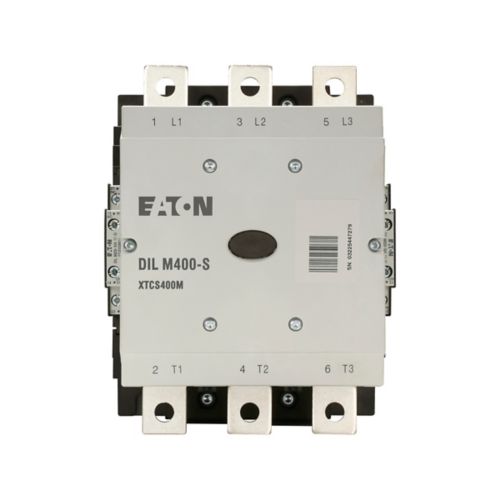

XTCS400M22A | Eaton 400A 3-Pole XT IEC S-Series FVNR Contactor
- Regular price
- $2,087.00
- Sale price
- $2,087.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XTCS400M22A
Description
The Eaton XTCS400M22A is an IEC-rated full-voltage non-reversing contactor designed for controlling high-capacity motors and power circuits in industrial applications. Manufactured by Eaton, the XTCS400M22A features a 400A current rating with a three-pole configuration and operates with a 110–120V AC control coil. Built within the XT IEC S-series platform, it provides reliable switching performance and long service life in demanding motor control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Motor Control |
| Part Number | XTCS400M22A |
| Subcategory | Contactor |
| Series | XT IEC S-Series |
| Frame Size | M Frame |
| Contactor Type | Full Voltage Non-Reversing (FVNR) |
| Number of Poles | 3 |
| Continuous Current Rating | 400 A |
| Coil Voltage | 110 VAC 50 Hz / 120 VAC 60 Hz |
| Frequency Rating | 50/60 Hz |
| Auxiliary Contacts | 2 NO, 2 NC |
| Terminal Type | Screw Terminals |
| Horsepower Rating (200V 3Ø) | 125 HP |
| Horsepower Rating (230V 3Ø) | 150 HP |
| Horsepower Rating (460V 3Ø) | 300 HP |
| Horsepower Rating (575V 3Ø) | 400 HP |
| Mounting Type | Panel Mount |
| Standards / Certifications | UL Listed, CSA Certified, IEC 60947 |
| Operating Temperature Range | -25°C to 50°C (-13°F to 122°F) |
| Width | 7.5 in |
| Height | 10 in |
| Depth | 10 in |
| Weight | 19.4 lb |
Information About XTCS400M22A
The XTCS400M22A is part of Eaton’s XT IEC S-series contactor lineup engineered for heavy-duty motor control and power switching applications. Designed as a full-voltage non-reversing contactor, it is commonly used for starting and controlling three-phase motors in industrial automation and machinery systems. The contactor incorporates robust mechanical and electrical components to ensure consistent switching performance and durability over extended operating cycles. Compatible with Eaton motor control systems and panel installations, the device includes screw terminal connections and auxiliary contacts for flexible control circuit integration.
Key Features:
- 400 Amp Current Rating: Supports high-capacity motor loads and industrial power control circuits.
- Three-Pole Configuration: Designed for switching three-phase electrical systems.
- Full Voltage Non-Reversing Operation: Provides reliable direct-on-line motor starting control.
- 110–120V AC Coil Voltage: Compatible with standard industrial control voltage systems.
- Auxiliary Contact Configuration: Includes 2 normally open and 2 normally closed auxiliary contacts for control circuits.
- XT IEC S-Series Design: Engineered for long service life and dependable switching performance.
- Screw Terminal Connections: Simplifies installation and ensures secure electrical connections.
- High Horsepower Ratings: Supports motors up to 400 HP depending on system voltage.
The XTCS400M22A delivers the reliability and precision required for industrial motor control and high-power switching applications.
