XTOB040DC1 | Eaton XT IEC Bimetallic Overload Relay
- Regular price
- $289.00
- Sale price
- $289.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XTOB040DC1
Description

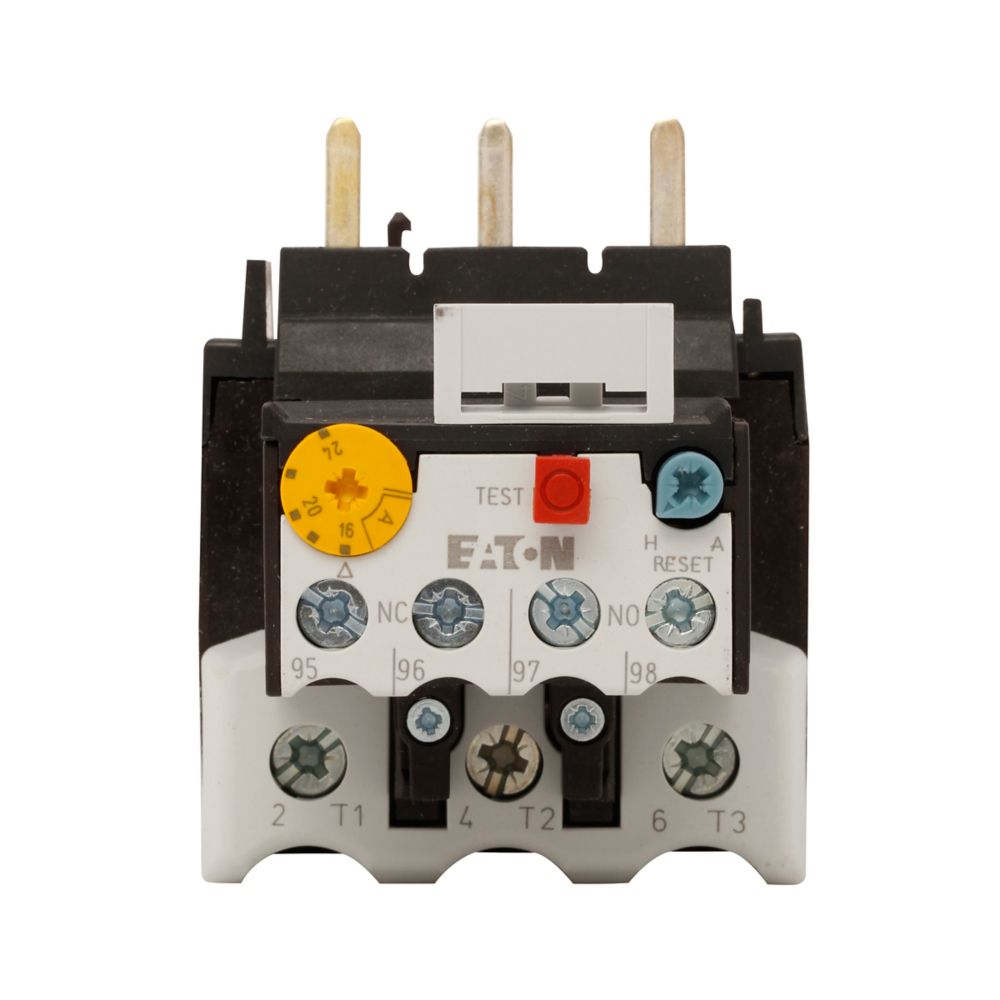

The XTOB040DC1 is an Eaton XT IEC bimetallic overload relay. It has an overload range of 24-40 amperes and features a 55 mm frame size. The contact configuration is 1 normally open (NO) and 1 normally closed (NC). This relay is designed for direct mounting to a contactor and is used with 40-72A contactors. The trip type is rated at 10A.
Technical Specifications
|
Product Name |
Eaton XT IEC bimetallic overload relay |
|
Catalog Number |
XTOB040DC1 |
|
EAN |
4015082784584 |
|
Dimensions |
|
|
* Length/Depth |
3 in (7.62 cm) |
|
* Height |
2 in (5.08 cm) |
|
* Width |
4 in (10.16 cm) |
|
Weight |
0.4 lb (0.18 kg) |
|
* Overload Range |
24-40 A |
|
* Used With |
40-72A contactor |
|
* Trip Type |
10 A |
|
* Frame Size |
55 mm |
|
* Contact Configuration |
1 Normally Open (NO), 1 Normally Closed (NC) |
Information About XTOB040DC1
The Eaton XTOB040DC1 is an XT IEC bimetallic overload relay, designed for industrial applications requiring protection of electrical motors and equipment from overload conditions. The relay features a current overload range of 24 to 40 amperes, suitable for a wide range of motor ratings and operational requirements. The frame size of this overload relay is 55 mm, which ensures compatibility with standardized mounting configurations and space constraints within control panels and motor control centers.
The contact configuration of the XTOB040DC1 includes one normally open (1NO) and one normally closed (1NC) contact. This configuration allows for integration into control circuits, providing both indication and interlocking functionalities as part of motor control schemes. The relay is designed for direct mounting to contactors, streamlining installation and reducing wiring complexity. This direct mounting capability is intended for use with 40-72A contactors, aligning with typical motor ratings encountered in industrial settings.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
