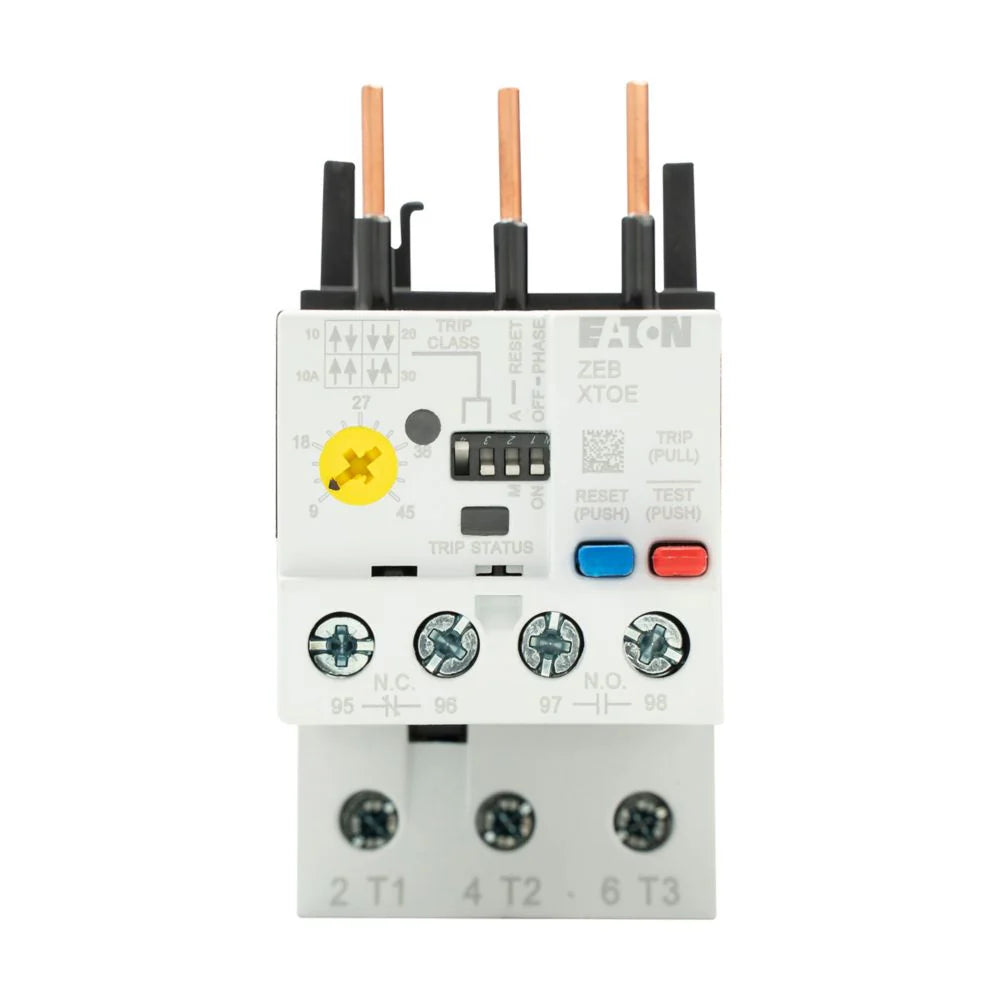

XTOE100DCS | Eaton Overload Relay
- Regular price
- $477.00
- Sale price
- $477.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XTOE100DCS
Description
The XTOE100DCS is an Eaton C440 electronic overload relay, specifically categorized as an XT IEC Electronic Overload Relay. It operates within an overload range of 20-100A and is designed with a 55 mm frame size. The contact configuration features both normally open (NO) and normally closed (NC) contacts. This overload relay is intended for direct mounting to a contactor. It offers selectable trip types, including 10A, 10, 20, and 30.
Technical Specifications
|
Part # |
XTOE100DCS |
|
Category |
Contactors & Starters |
|
Subcategory |
Solid State Overload/Relay |
|
Overload Current Min |
20A |
|
Overload Current Max |
100A |
|
Coil Voltage DC Max |
690V |
Information About XTOE100DCS
The XTOE100DCS is an Eaton C440 electronic overload relay, specifically categorized as an XT IEC Electronic Overload Relay. It is engineered to manage overload conditions within a range of 20 to 100A. With a frame size of 55 mm, it is suitable for various industrial applications where precise overload protection is required.
Featuring a NO-NC (normally open-normally closed) contact configuration, the XTOE100DCS offers flexibility in its operation. This configuration allows it to control the electrical circuit by either opening or closing the contacts in response to overload conditions, ensuring efficient management of electrical currents.
The overload relay is designed for direct mounting to a contactor, simplifying installation and minimizing wiring complexity. This direct mounting feature enhances the reliability and efficiency of the electrical system by reducing the number of connection points and potential failure points.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
