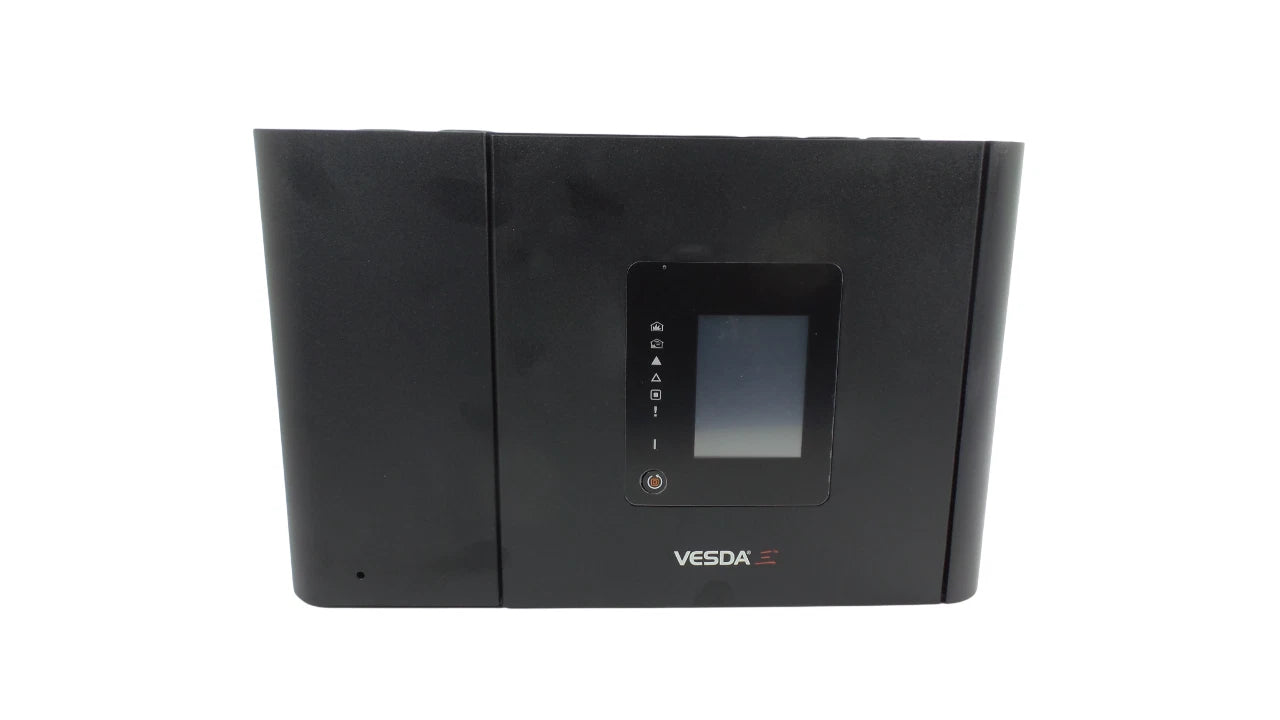

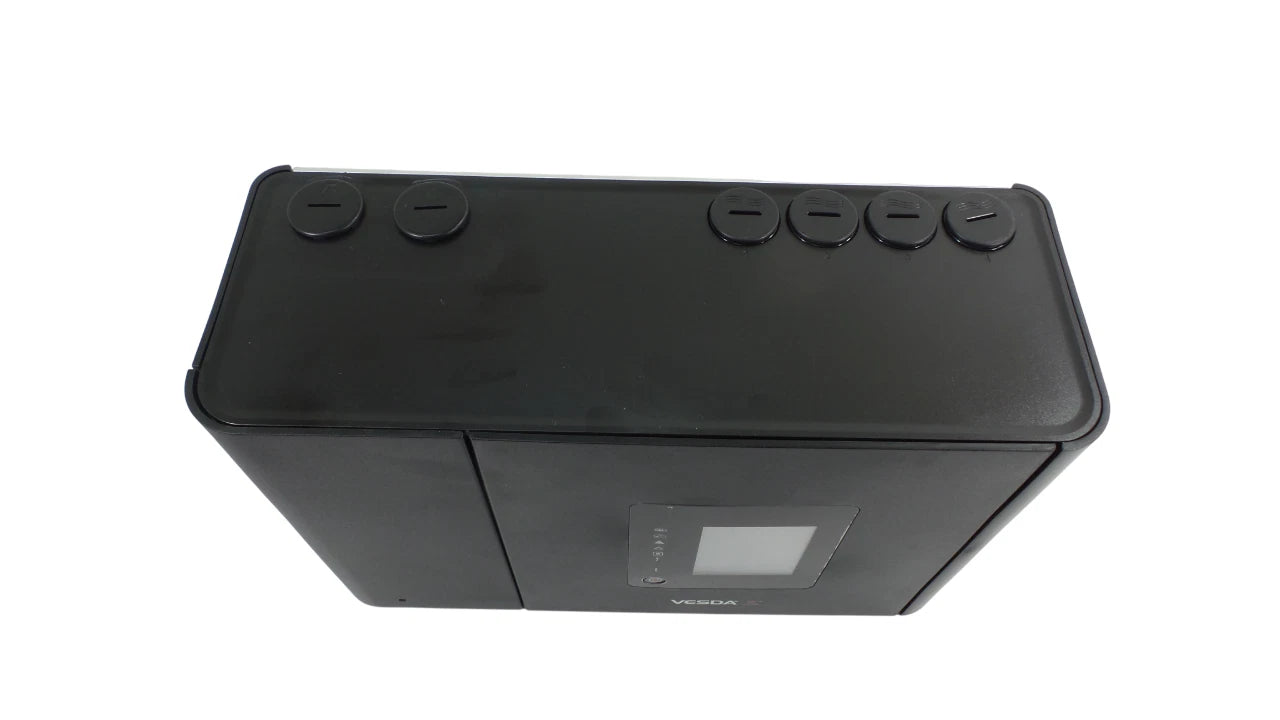

Xtralis VES-A10-P-UL VESDA-E Aspirating Smoke Detector 4-Sector 2000 m² Coverage
- Regular price
- $7,187.00
- Sale price
- $7,187.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VES-A10-P
Description
The Xtralis VES-A10-P-UL is an advanced aspirating smoke detector designed to provide very early warning fire detection in mission-critical commercial and industrial facilities. Utilizing high-sensitivity air sampling technology with up to four configurable sampling sectors, it continuously monitors protected areas up to 2,000 m² for the earliest signs of smoke.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xtralis |
| Category | Fire Alarm Systems |
| Part Number | VES-A10-P-UL |
| Subcategory | Aspirating Smoke Detectors |
| Product Type | Aspirating Smoke Detector |
| Detection Method | Air Sampling (Aspirating) |
| Coverage Area | Up to 2,000 m² (21,500 sq ft) |
| Configurable Sectors | Up to 4 |
| Supply Voltage | 18–30 VDC (24 VDC Nominal) |
| Power Consumption | Approx. 10 W (Standby), 11.6 W (Alarm) |
| Sensitivity Range | 0.005%–20% obs/m |
| Pipe Network Capacity | 560 m Branched, 280 m Linear |
| Relay Outputs | 12 Programmable, 2 A @ 30 VDC |
| Display | 3.5 in. LCD |
| Event Log Capacity | 20,000 Events |
| Communication Interfaces | VESDAnet, Ethernet, USB |
| Protection Rating | IP40 |
| Operating Temperature | 0°C to 39°C (32°F to 102°F) |
| Sampled Air Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5–95% RH, Non-Condensing |
| Dimensions (W × H × D) | 350 × 225 × 135 mm (13.8 × 8.9 × 5.3 in.) |
| Weight | Approx. 4.4 kg (9.7 lb) |
Information About VES-A10-P
The VES-A10-P-UL is part of the Xtralis VESDA-E VEA Series of aspirating smoke detection systems developed for high-value assets and critical infrastructure. It continuously draws air through a pipe network and analyzes airborne particles to detect incipient fires long before conventional spot detectors respond. The detector supports up to four configurable sampling sectors, communicates through VESDAnet, Ethernet, and USB interfaces, and stores up to 20,000 events for comprehensive diagnostics and system management. Designed with an IP40 enclosure and a 3.5-inch LCD display, it offers reliable operation in data centers, healthcare facilities, industrial plants, clean rooms, and other demanding environments.
Key Features:
- Aspirating Smoke Detection: Continuously samples air for very early fire detection.
- Four Configurable Sectors: Supports monitoring of up to four independent sampling zones.
- Large Coverage Area: Protects areas up to 2,000 m² (21,500 sq ft).
- High Sensitivity Detection: Adjustable sensitivity from 0.005% to 20% obscuration per meter.
- Integrated LCD Display: Features a 3.5-inch display for smoke levels, alarms, and system status.
- Extensive Connectivity: Supports VESDAnet, Ethernet, and USB communication.
- Programmable Relays: Includes 12 configurable relay outputs rated at 2 A at 30 VDC.
- Comprehensive Event Logging: Stores up to 20,000 events for diagnostics and maintenance.
The VES-A10-P-UL delivers the reliability and precision required for very early smoke detection in mission-critical fire protection applications.
