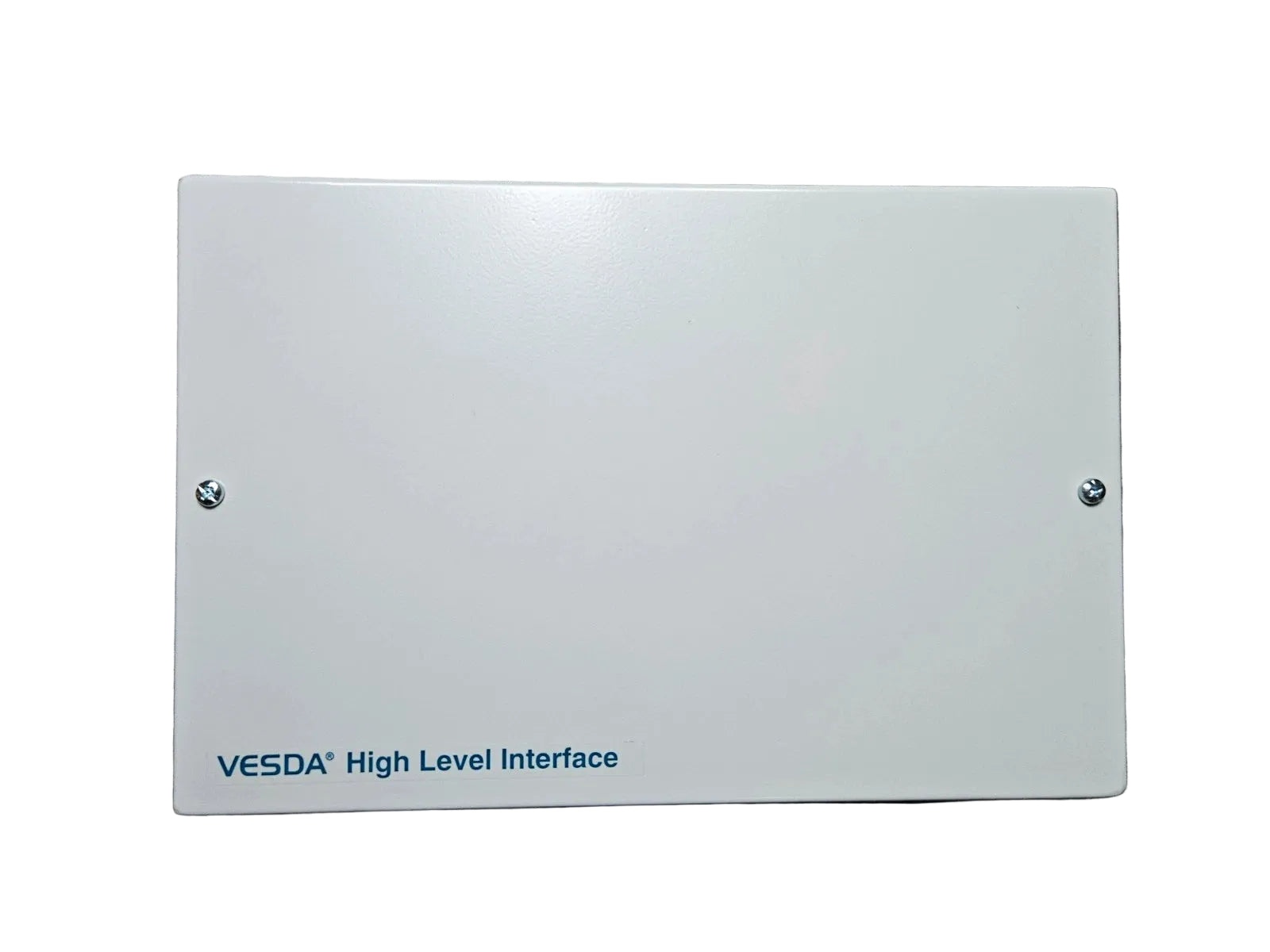

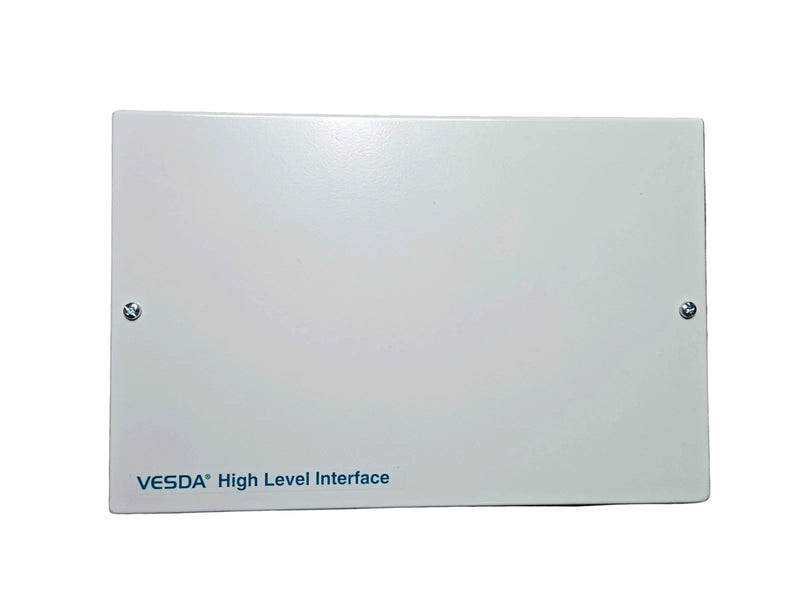

Xtralis VHX-1200 VESDA Sliding Windows High Level Interface Wall Mounted
- Regular price
- $1,342.00
- Sale price
- $1,342.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VHX-1200
Description
The Xtralis VHX-1200 is a wall-mounted Sliding Windows High Level Interface (HLI) designed to provide direct communication between VESDAnet fire detection networks and Xtralis configuration and monitoring software. It enables seamless data transfer, centralized system monitoring, and efficient management of VESDA aspirating smoke detection installations of various sizes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xtralis |
| Category | Fire Alarm Systems |
| Part Number | VHX-1200 |
| Subcategory | Fire Alarm Communication Interfaces |
| Product Type | VESDA Sliding Windows High Level Interface (HLI) |
| Installation Type | Wall-Mounted |
| Compatible Network | VESDAnet |
| Supported Devices | Up to 200 VESDAnet Devices |
| Software Compatibility | Xtralis VSC, Xtralis VSM4 |
| Supply Voltage | 24 VDC |
| Current Consumption | 70 mA |
| Power Consumption | 1.68 W (Typical) |
| Communication Interface | RS-232 Serial (PC Connection), VESDAnet |
| Dimensions | 280 × 185 × 55 mm (11 × 7.3 × 2.2 in.) |
| Weight | Approx. 2 kg (4.4 lb) |
| Included Accessories | RS-232 9-Pin Serial Cable |
| Application | VESDA Configuration, Monitoring, and Diagnostics |
Information About VHX-1200
The VHX-1200 is part of the Xtralis VESDA High Level Interface (HLI) product family developed to provide connectivity between VESDAnet networks and Xtralis software platforms such as VSC and VSM4. It supports direct access to VESDAnet devices, allowing operators to configure detectors, monitor system status, and retrieve event information from a centralized workstation. Designed for permanent wall-mounted installation, the interface supports networks of up to 200 connected VESDA devices and provides seamless communication without interrupting detector operation. The VHX-1200 is recommended for system monitoring and configuration rather than serving as a primary fire alarm reporting interface.
Key Features:
- Direct VESDAnet Access: Provides communication with VESDA detection networks.
- Sliding Windows HLI: Supports Xtralis VSC and VSM4 configuration and monitoring software.
- Wall-Mounted Design: Offers a permanent interface for continuous system access.
- Large Network Support: Connects to VESDAnet systems with up to 200 devices.
- Seamless Data Transfer: Enables efficient exchange of configuration and monitoring data.
- Simple Configuration: Easily configured using Xtralis software packages.
- Low Power Consumption: Consumes approximately 1.68 W during normal operation.
- Centralized Monitoring: Simplifies diagnostics, commissioning, and maintenance of VESDA systems.
The VHX-1200 delivers the reliability and connectivity required for centralized monitoring and management of VESDA aspirating smoke detection networks.
