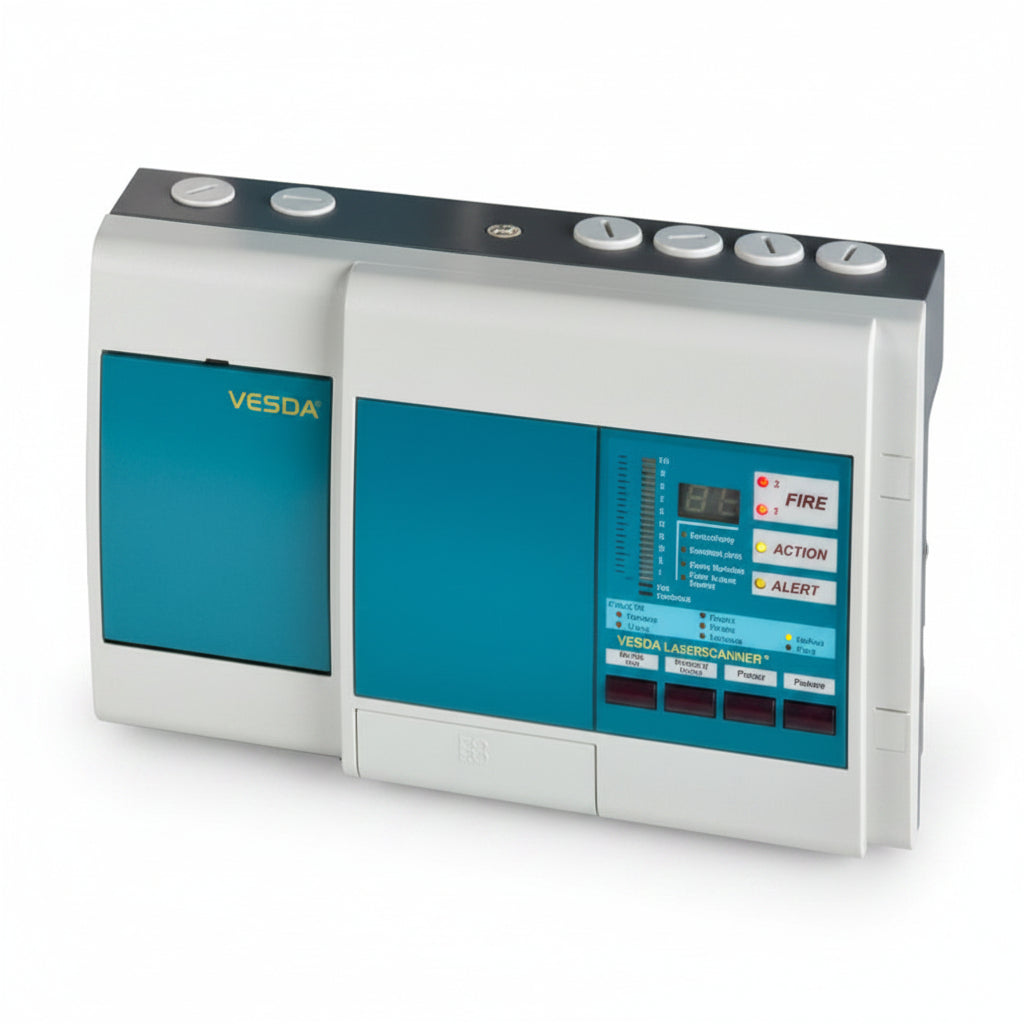

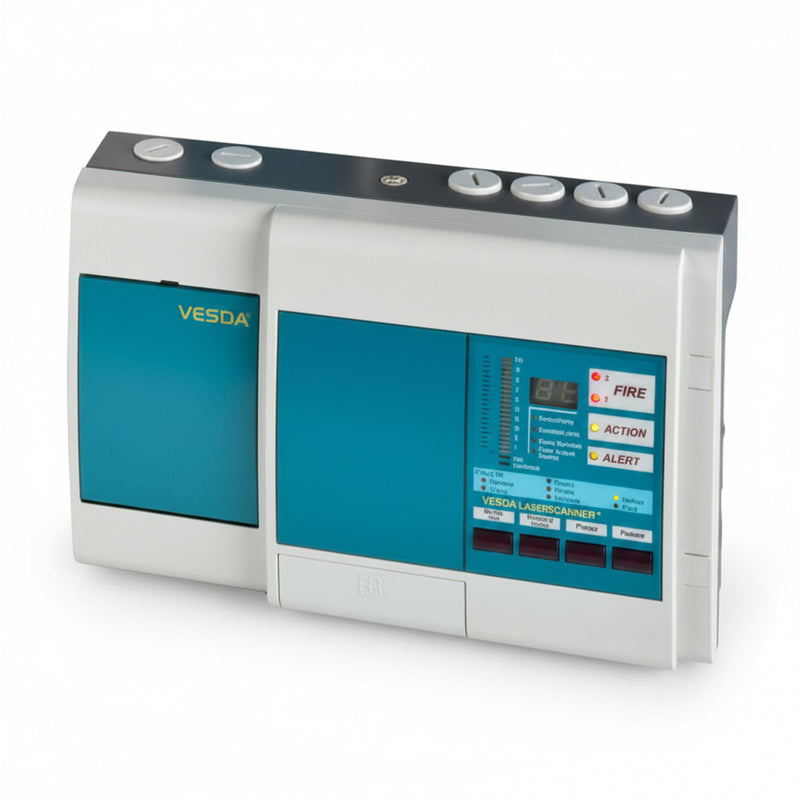

Xtralis VLS-204 VESDA LaserSCANNER Smoke Detector with 7 Relays and Display
- Regular price
- $8,199.00
- Sale price
- $8,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VLS-204
Description
The Xtralis VLS-204 is a VESDA LaserSCANNER aspirating smoke detector designed to identify the sampling pipe associated with detected smoke and provide early fire detection across protected areas. This configuration includes a Scanner Display module and seven programmable relays for status, alarm, fault, and control signaling.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xtralis |
| Category | Fire Alarm Systems |
| Part Number | VLS-204 |
| Subcategory | Aspirating Smoke Detectors |
| Product Series | VESDA VLS |
| Detector Type | LaserSCANNER Aspirating Smoke Detector |
| Display | Scanner Display Module |
| Relay Configuration | 7 Programmable Relays |
| Relay Contact Rating | 2 A at 30 VDC |
| Supply Voltage | 18–30 VDC |
| Sensitivity Range | 0.005%–20% obs/m |
| Sampling Pipes | Up to 4 |
| Maximum Length per Pipe | 100 m (328 ft) |
| Aggregate Pipe Length | 200 m (656 ft) |
| Area Coverage | Up to 2,000 m² (21,520 sq ft), subject to applicable codes |
| IP Rating | IP30 |
| Dimensions | 350 × 225 × 125 mm (13.8 × 8.9 × 4.9 in) |
| Weight | 4.0 kg (9 lb) |
Information About VLS-204
The VLS-204 is a VESDA VLS series aspirating smoke detector built around laser-based smoke detection and a four-pipe scanning architecture. The unit is configured with two blank plates, a Scanner Display module in the far-right position, and a seven-relay termination configuration. It supports individual pipe identification, four alarm levels, VESDAnet communication, AutoLearn functionality, and an event log for system monitoring and commissioning. Its sampling network supports up to 100 m per pipe and 200 m aggregate pipe length, allowing deployment across large fire-detection areas.
Key Features:
- Laser-Based Detection: Uses VESDA laser detection technology for aspirating smoke monitoring.
- Individual Pipe Identification: Determines which sampling pipe is associated with the detected smoke condition.
- Scanner Display Module: Provides local visual indication of detector and scanning information.
- Seven Programmable Relays: Supports configurable alarm, maintenance, fault, and isolation signaling.
- Four Alarm Levels: Supports Alert, Action, Fire 1, and Fire 2 alarm thresholds.
- Four-Pipe Sampling: Accommodates multiple sampling sectors with a maximum recommended length of 100 m per pipe.
- AutoLearn Technology: Monitors environmental conditions to assist with appropriate alarm threshold configuration.
- VESDAnet Communication: Supports integration and communication with compatible VESDA system equipment.
The VLS-204 delivers the reliability and precision required for early aspirating smoke detection and pipe-specific alarm identification in critical fire protection applications.
