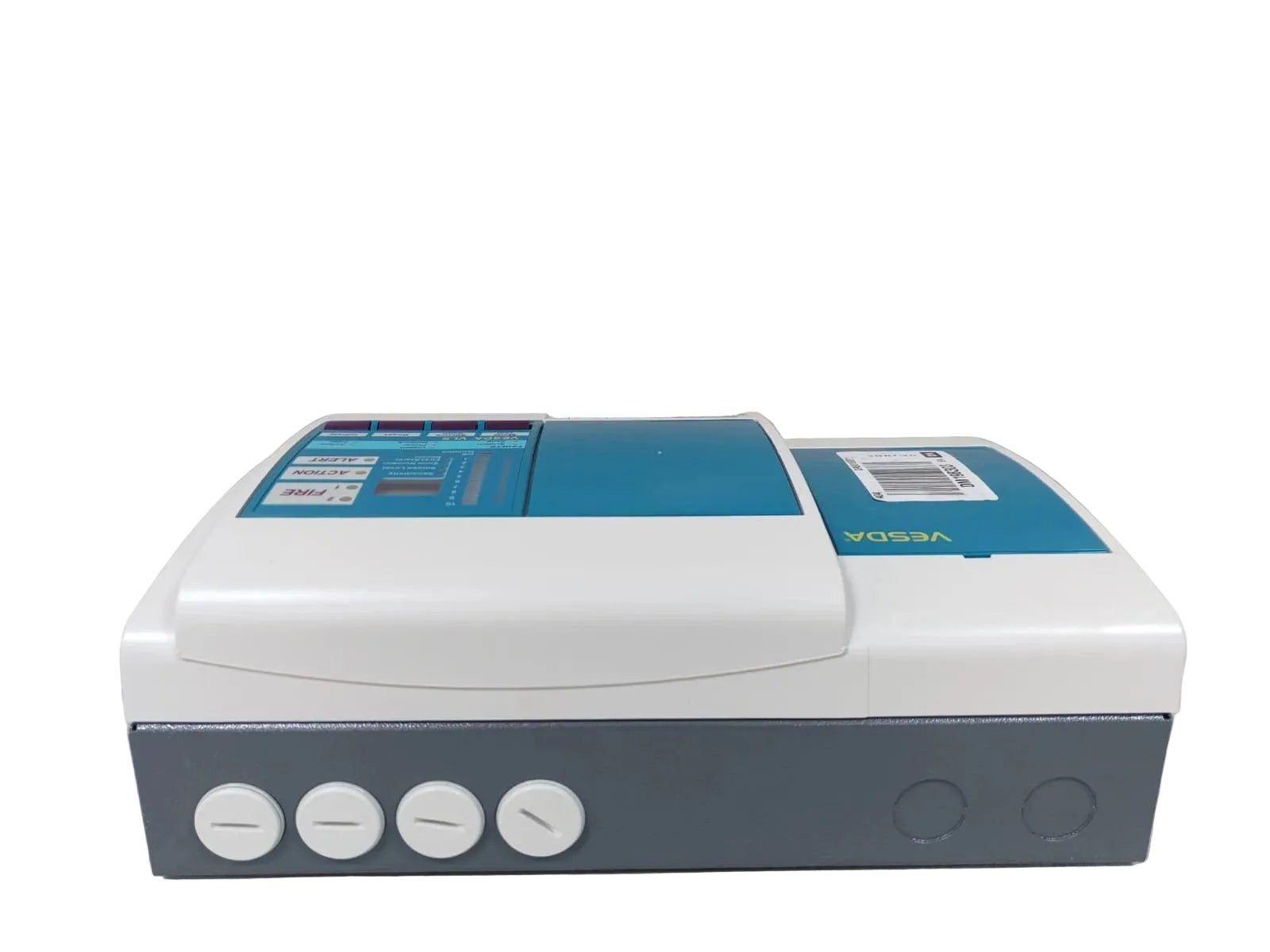

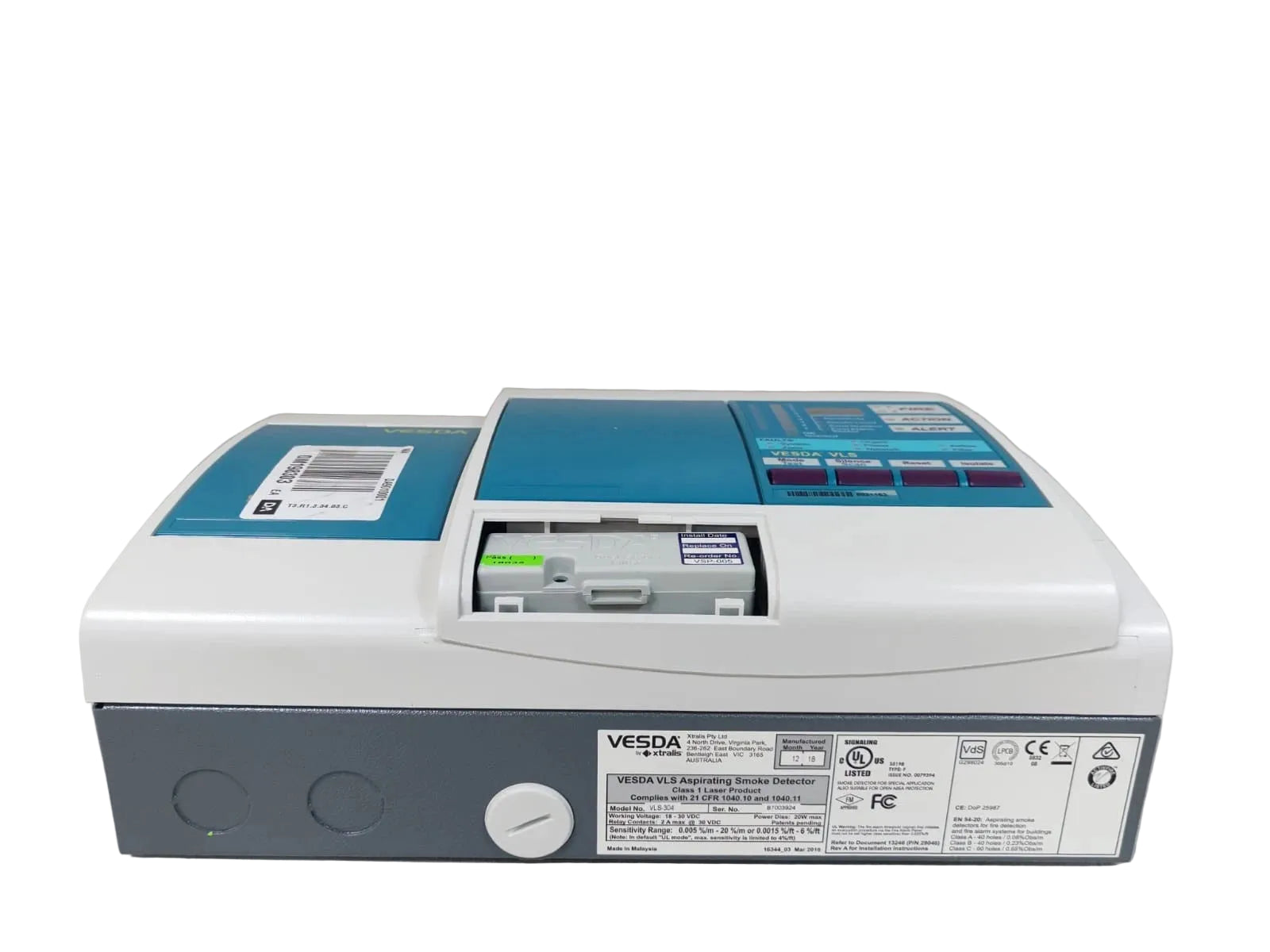

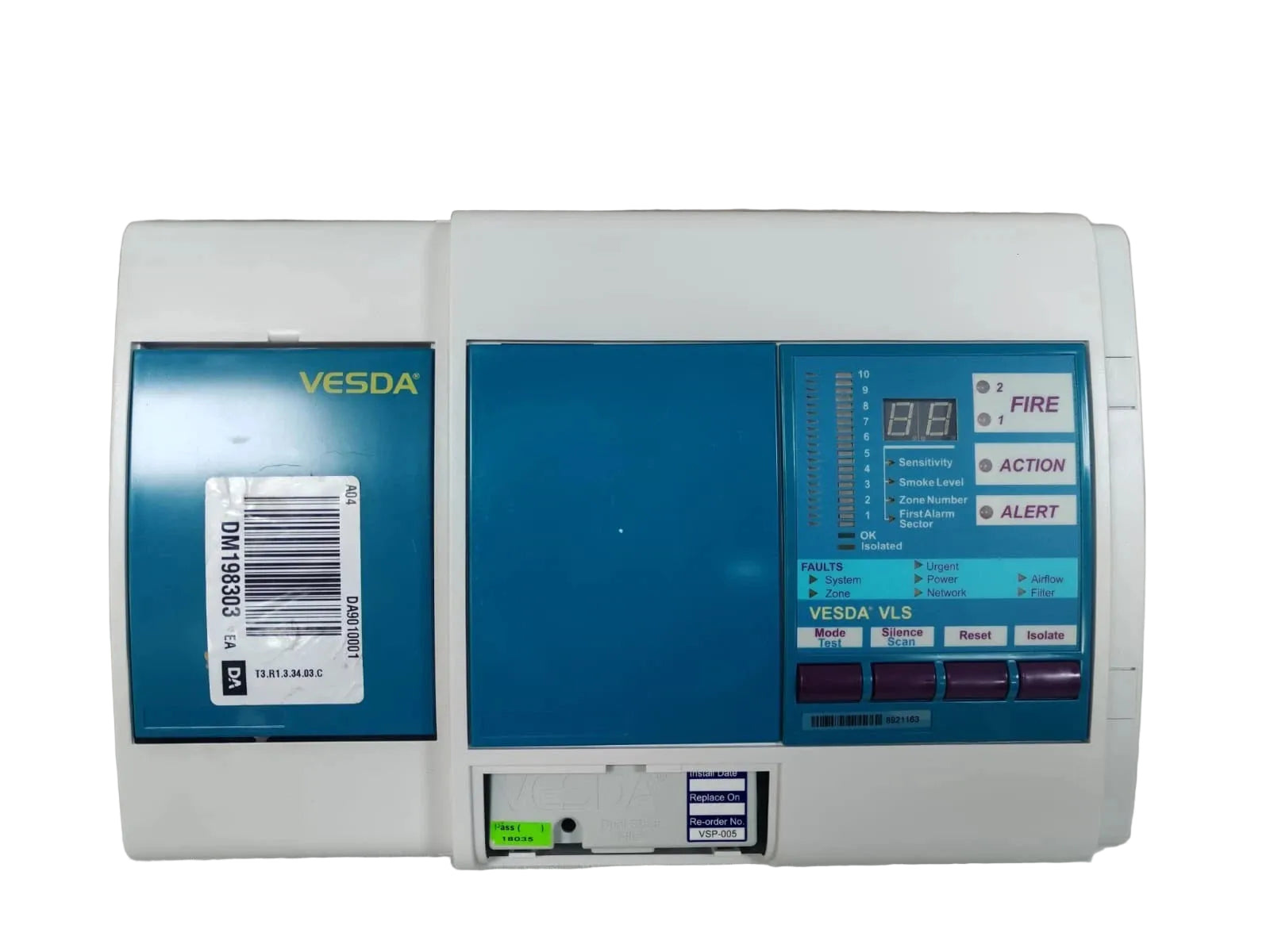

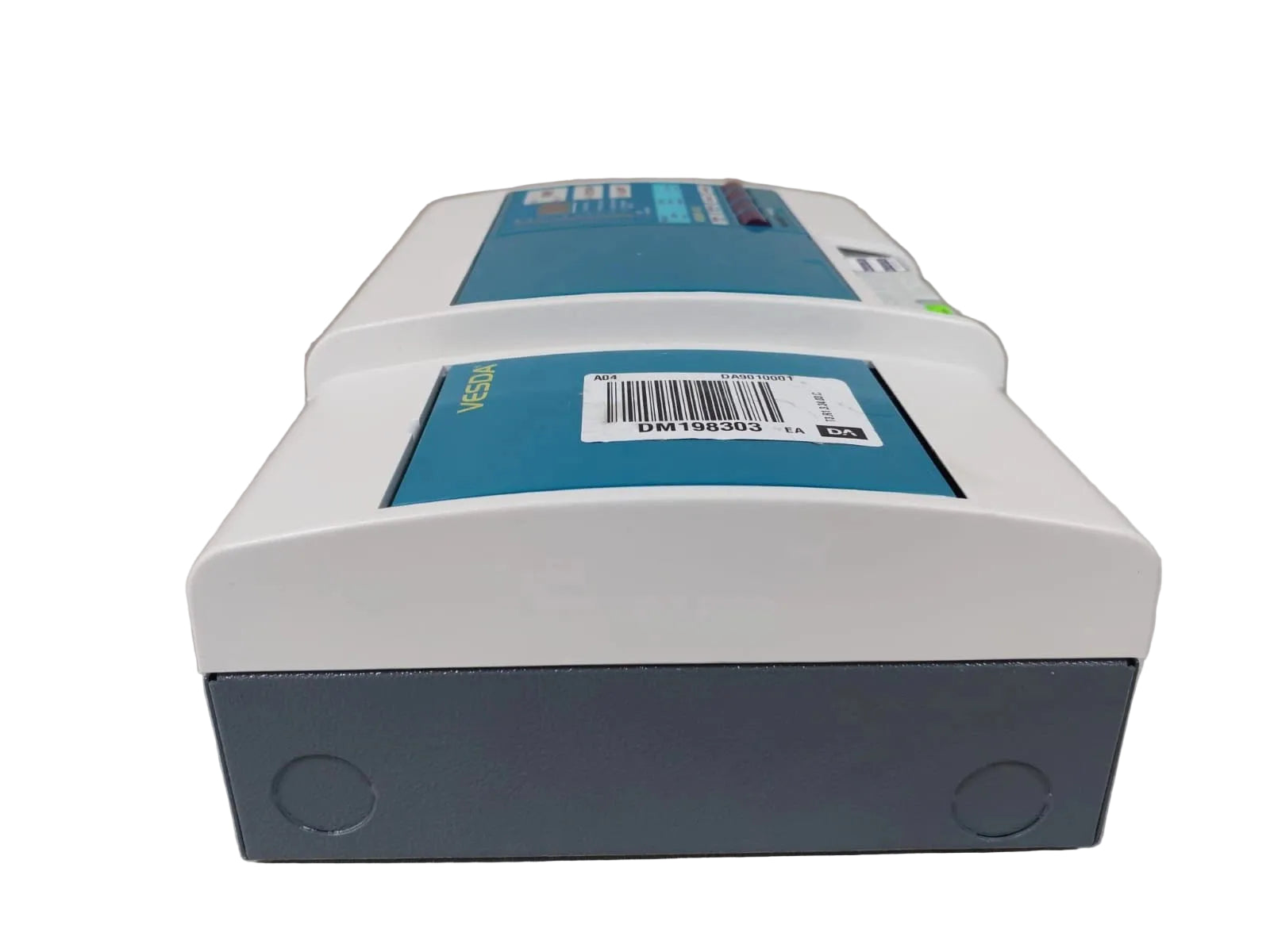

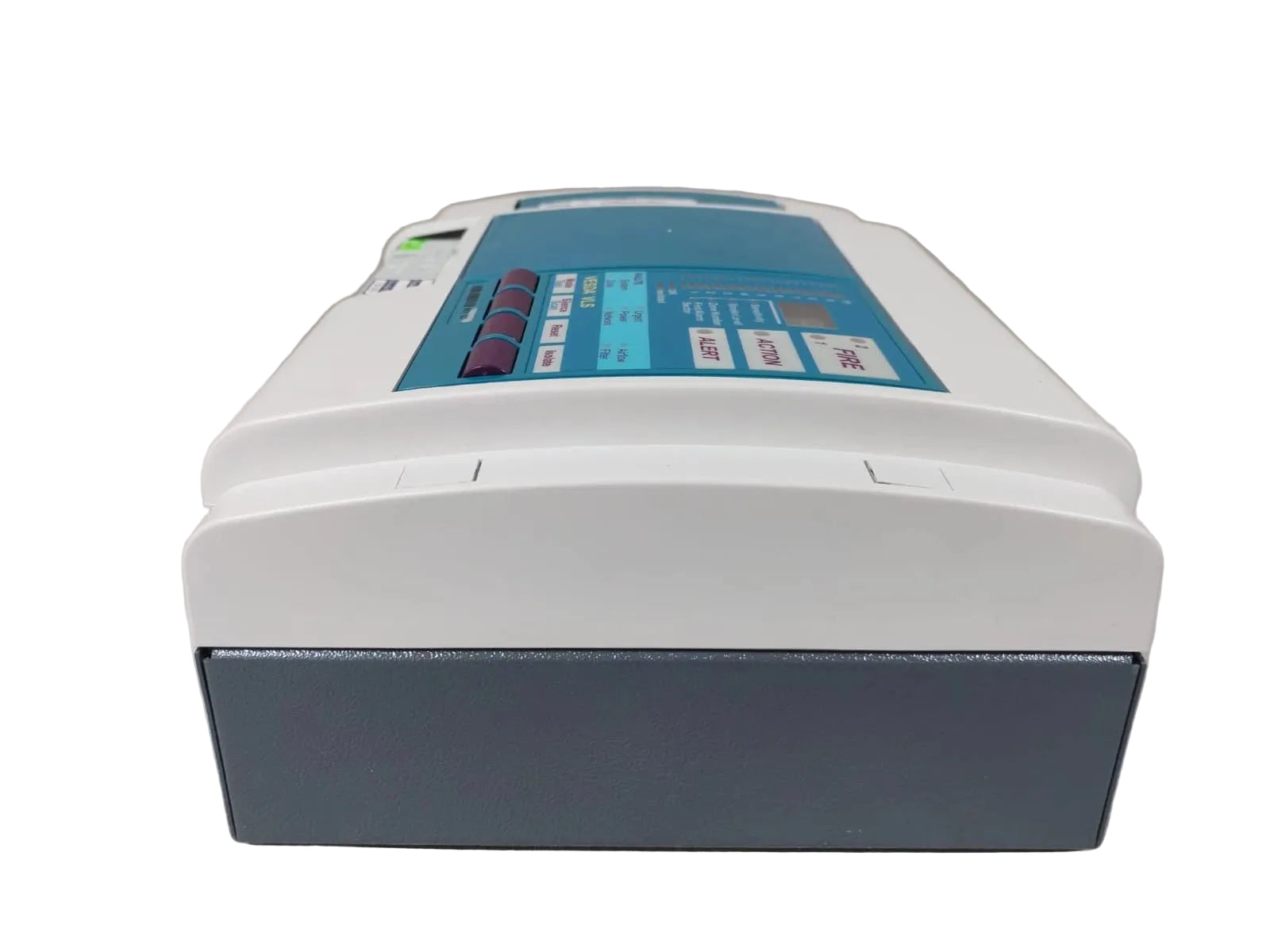

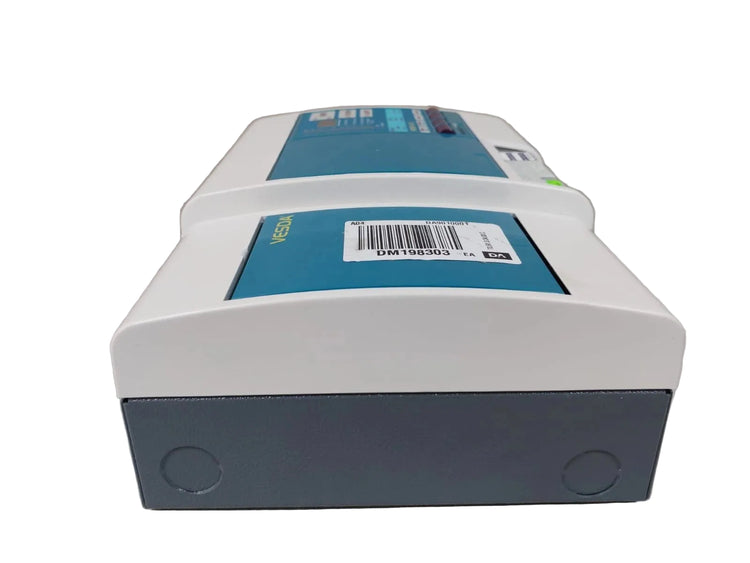

Xtralis VLS-304 LaserSCANNER Aspirating Smoke Detector with Display and 12 Relays
- Regular price
- $7,199.00
- Sale price
- $7,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VLS-304
Description
The Xtralis VLS-304 is a LaserSCANNER aspirating smoke detector with an integrated display and 12 programmable relays, engineered for very early smoke detection in large and high-value protected areas. Using advanced laser-based air sampling technology, the Xtralis VLS-304 continuously analyzes airborne particles to provide rapid and reliable fire detection for mission-critical commercial and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xtralis |
| Category | Fire Alarm Systems |
| Part Number | VLS-304 |
| Subcategory | Aspirating Smoke Detectors |
| Detection Technology | VESDA LaserSCANNER aspirating laser smoke detection |
| Display | Integrated display and programmer |
| Supply Voltage | 18–30 VDC |
| Power Consumption | 5.8–11.28 W (depending on operating mode) |
| Current Consumption | 240–470 mA @ 24 VDC |
| Sampling Pipe Length | Up to 200 m (650 ft) aggregate |
| Pipe Diameter | 25 mm (1 in) OD, 15–21 mm ID |
| Programmable Relays | 12 programmable relays |
| Relay Contact Rating | 2 A @ 30 VDC |
| Sensitivity Range | 0.005–20% obs/m |
| Ingress Protection | IP30 |
| Operating Temperature | Detector: 0°C to 39°C (32°F to 103°F); Sampled air: -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10–95% RH, non-condensing |
| Event Log Capacity | Up to 18,000 events (FIFO) |
| Communication | VESDAnet event reporting |
| Dimensions | 350 × 225 × 125 mm (13.8 × 8.9 × 4.9 in) |
| Weight | 4.0 kg (9 lb) |
Information About VLS-304
The VLS-304 is part of the Xtralis VESDA LaserSCANNER series, designed to deliver high-sensitivity smoke detection across extensive sampling pipe networks. It combines laser detection technology with intelligent airflow supervision, programmable alarm thresholds, and event logging to simplify system monitoring and maintenance. The detector supports aggregate pipe lengths of up to 200 meters and integrates with VESDAnet for centralized communication and event reporting. Its built-in display, AutoLearn functionality, and configurable relay outputs provide flexible installation and efficient operation in complex fire protection systems.
Key Features:
- Laser Air-Sampling Detection: Continuously analyzes sampled air for very early smoke detection using precision laser technology.
- Integrated Display: Includes a built-in display and programmer for convenient local configuration and status monitoring.
- Twelve Programmable Relays: Provides configurable outputs for alarms, maintenance, faults, isolation, sector alarms, and scan functions.
- Extended Pipe Network Support: Accommodates aggregate sampling pipe lengths up to 200 m (650 ft).
- Wide Sensitivity Range: Adjustable detection sensitivity from 0.005 to 20% obscuration per meter for diverse applications.
- Intelligent AutoLearn Function: Optimizes detector performance while compensating for changing environmental conditions.
- Comprehensive Event Logging: Stores up to 18,000 events with detailed reporting through VESDAnet and internal event logs.
- Airflow and Filter Monitoring: Continuously supervises sampling pipe airflow and filter condition to ensure reliable operation.
The VLS-304 delivers the reliability and precision required for very early smoke detection in data centers, telecommunications facilities, industrial plants, clean rooms, museums, and other mission-critical environments.
Description
The Xtralis VLS-304 is a LaserSCANNER aspirating smoke detector with an integrated display and 12 programmable relays, engineered for very early smoke detection in large and high-value protected areas. Using advanced laser-based air sampling technology, the Xtralis VLS-304 continuously analyzes airborne particles to provide rapid and reliable fire detection for mission-critical commercial and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xtralis |
| Category | Fire Alarm Systems |
| Part Number | VLS-304 |
| Subcategory | Aspirating Smoke Detectors |
| Detection Technology | VESDA LaserSCANNER aspirating laser smoke detection |
| Display | Integrated display and programmer |
| Supply Voltage | 18–30 VDC |
| Power Consumption | 5.8–11.28 W (depending on operating mode) |
| Current Consumption | 240–470 mA @ 24 VDC |
| Sampling Pipe Length | Up to 200 m (650 ft) aggregate |
| Pipe Diameter | 25 mm (1 in) OD, 15–21 mm ID |
| Programmable Relays | 12 programmable relays |
| Relay Contact Rating | 2 A @ 30 VDC |
| Sensitivity Range | 0.005–20% obs/m |
| Ingress Protection | IP30 |
| Operating Temperature | Detector: 0°C to 39°C (32°F to 103°F); Sampled air: -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10–95% RH, non-condensing |
| Event Log Capacity | Up to 18,000 events (FIFO) |
| Communication | VESDAnet event reporting |
| Dimensions | 350 × 225 × 125 mm (13.8 × 8.9 × 4.9 in) |
| Weight | 4.0 kg (9 lb) |
Information About VLS-304
The VLS-304 is part of the Xtralis VESDA LaserSCANNER series, designed to deliver high-sensitivity smoke detection across extensive sampling pipe networks. It combines laser detection technology with intelligent airflow supervision, programmable alarm thresholds, and event logging to simplify system monitoring and maintenance. The detector supports aggregate pipe lengths of up to 200 meters and integrates with VESDAnet for centralized communication and event reporting. Its built-in display, AutoLearn functionality, and configurable relay outputs provide flexible installation and efficient operation in complex fire protection systems.
Key Features:
- Laser Air-Sampling Detection: Continuously analyzes sampled air for very early smoke detection using precision laser technology.
- Integrated Display: Includes a built-in display and programmer for convenient local configuration and status monitoring.
- Twelve Programmable Relays: Provides configurable outputs for alarms, maintenance, faults, isolation, sector alarms, and scan functions.
- Extended Pipe Network Support: Accommodates aggregate sampling pipe lengths up to 200 m (650 ft).
- Wide Sensitivity Range: Adjustable detection sensitivity from 0.005 to 20% obscuration per meter for diverse applications.
- Intelligent AutoLearn Function: Optimizes detector performance while compensating for changing environmental conditions.
- Comprehensive Event Logging: Stores up to 18,000 events with detailed reporting through VESDAnet and internal event logs.
- Airflow and Filter Monitoring: Continuously supervises sampling pipe airflow and filter condition to ensure reliable operation.
The VLS-304 delivers the reliability and precision required for very early smoke detection in data centers, telecommunications facilities, industrial plants, clean rooms, museums, and other mission-critical environments.
