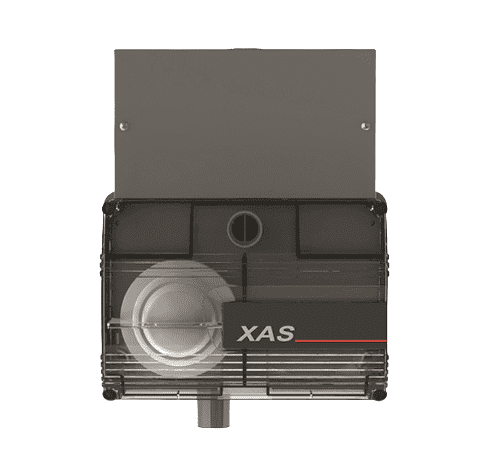

Xtralis XAS-1-US-SIE Single-Zone Air Sampling Smoke Detector
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XAS-1-US-SIE
Description
The Xtralis XAS-1-US-SIE is a single-zone air sampling smoke detector designed to provide reliable early warning fire detection in commercial and industrial environments. Using aspirating detection technology, it continuously draws air through a sampling pipe network and analyzes it with compatible spot detectors to identify smoke at an early stage.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xtralis |
| Category | Fire Alarm Systems |
| Part Number | XAS-1-US-SIE |
| Subcategory | Aspirating Smoke Detectors |
| Product Type | Single-Zone Air Sampling Smoke Detector |
| Detection Method | Aspirating (Air Sampling) |
| Detection Zones | Single Zone |
| Supported Detectors | 1 or 2 Analog Addressable or Conventional Spot Detectors |
| Power Supply | 24 VDC Nominal |
| Maximum Current | 350 mA |
| Inrush Current | 680 mA |
| Sampling Pipe Length | Up to 164 ft (50 m) |
| Flexible Tube Length | Up to 50 ft (15 m) |
| Aspirator Pressure | 250 Pa |
| Airflow Monitoring | High and Low Programmable Flow Limits |
| Relay Outputs | 1 Fault Relay |
| Communication | Integral Display and Programmer |
| Operating Temperature | 14°F to 131°F (-10°C to 55°C) |
| Sampled Air Temperature | 4°F to 140°F (-20°C to 60°C) |
| Humidity | 10–95% RH, Non-Condensing |
| Protection Rating | IP30 (Wiring Enclosure), IP65 (Detector Enclosure) |
| Dimensions (W × H × D) | 10.2 × 12.6 × 6.5 in. (259 × 321 × 166 mm) |
| Weight | 7.27 lb (3.3 kg) |
Information About XAS-1-US-SIE
The XAS-1-US-SIE is part of the Xtralis XAS Series of aspirating smoke detection systems developed for challenging fire protection applications. It supports a single air sampling inlet and accommodates one or two compatible analog addressable or conventional spot detectors, enabling multiple detection strategies including single-area, redundant, and coincident detection. The detector features a microprocessor-controlled aspirator with adjustable airflow monitoring, an integral display, and a serviceable air filter for simplified maintenance. Its compact design allows installation outside the protected area while continuously sampling air through a dedicated pipe network.
Key Features:
- Single-Zone Air Sampling: Continuously monitors one protected area using aspirating detection.
- Early Warning Detection: Detects smoke before conventional spot detectors in many applications.
- Flexible Detector Support: Compatible with one or two analog addressable or conventional spot detectors.
- Adjustable Aspirator: Microprocessor-controlled aspirator with programmable airflow monitoring.
- Multiple Detection Strategies: Supports single-area, redundant, and double-knock configurations.
- Pipe Network Support: Accommodates sampling pipe lengths up to 50 m (164 ft).
- Integral Display: Built-in display and programmer simplify commissioning and diagnostics.
- Serviceable Air Filter: Designed for easy maintenance and long-term reliability.
The XAS-1-US-SIE delivers the reliability and precision required for early warning smoke detection in commercial and industrial fire protection systems.
