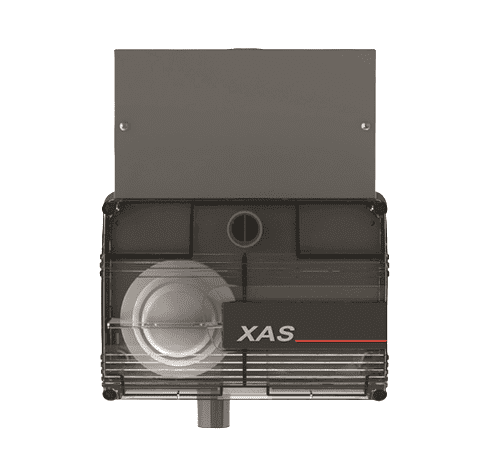

Xtralis XAS-2-US Dual-Inlet Air-Sampling Smoke Detection System
- Regular price
- $1,295.00
- Sale price
- $1,295.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XAS-2-US
Description
The Xtralis XAS-2-US is an advanced air-sampling smoke detection system designed for early fire detection in critical environments where conventional spot detectors may not provide sufficient coverage. Utilizing aspirating technology, the Xtralis XAS-2-US continuously draws air through a pipe network to compatible intelligent smoke detectors, enabling rapid detection while supporting reliable operation in demanding industrial, commercial, and infrastructure applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xtralis |
| Category | Fire Alarm Systems |
| Part Number | XAS-2-US |
| Subcategory | Aspirating Smoke Detectors |
| Detection Method | Air-sampling (aspirating) smoke detection |
| Supply Voltage | 24 VDC nominal |
| Maximum Current Draw | 300 mA |
| Fan Control | 10 programmable speeds |
| Fan Pressure | 250 Pa (0.0363 psi) |
| Supported Detectors | One or two compatible Siemens intelligent smoke detectors |
| Relay Outputs | Two fault relay outputs |
| Flow Monitoring | Adjustable high and low airflow monitoring |
| Filtration | Serviceable internal filter; optional external filter |
| Maximum Pipe Length | 164 ft (50 m) per inlet |
| Pipe Size | 0.9 in ID / 1.1 in OD |
| Ingress Protection | IP65 |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Relative Humidity | 10–95% RH, non-condensing |
| Dimensions (W × H × D) | 10.2 × 12.6 × 6.5 in (25.9 × 32.1 × 16.6 cm) |
| Field Wiring | Screw terminals; 10–18 AWG solid, 12–20 AWG stranded |
| Weight | 8.8 lb (4.0 kg) |
Information About XAS-2-US
The XAS-2-US is an aspirating smoke detection unit engineered for use with one or two compatible Siemens intelligent smoke detectors. It features a dual-inlet design with programmable fan control, adjustable airflow monitoring, and serviceable filtration to maintain stable sampling performance. The enclosure is rated IP65 for protection against dust and water ingress, making it suitable for challenging indoor and semi-protected environments. The system integrates with Signaling Line Circuit (SLC) or Initiating Device Circuit (IDC) architectures while providing configurable fault monitoring and dependable air-sampling technology.
Key Features:
- Dual-Inlet Air Sampling: Supports two independent sampling inlets for expanded monitoring coverage.
- Programmable Fan Control: Features ten selectable fan speeds to optimize airflow for different pipe configurations.
- Adjustable Flow Monitoring: Continuously supervises high and low airflow conditions with configurable thresholds.
- Compatible Detector Support: Accommodates one or two Siemens intelligent smoke detectors for flexible installation.
- IP65 Enclosure: Protects internal components from dust and water ingress in demanding environments.
- Serviceable Filtration: Includes a replaceable internal filter with optional external filtration for contaminated locations.
- Long Pipe Capability: Supports sampling pipe lengths up to 164 ft (50 m) per inlet, subject to local installation requirements.
- Dual Fault Relay Outputs: Provides two dedicated fault relay outputs for system diagnostics and monitoring.
The XAS-2-US delivers the reliability and precision required for early smoke detection in mission-critical facilities, industrial plants, commercial buildings, and specialized protected spaces.
