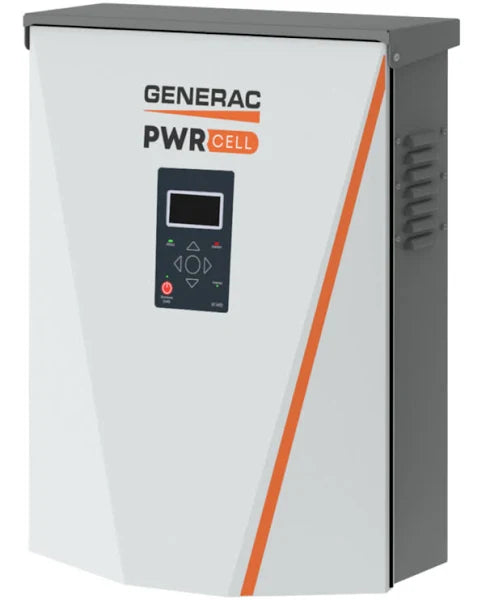

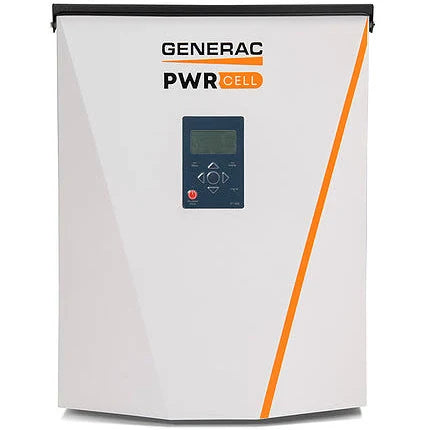

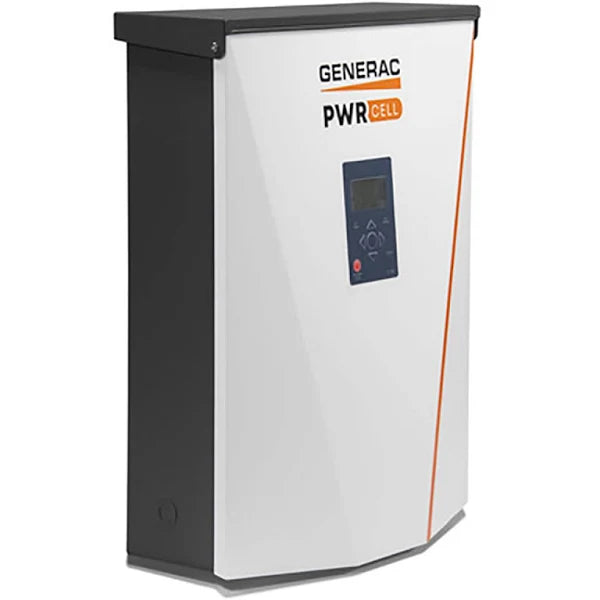

XVT076A03 | Generac Generators PWRcell 7.6kW 1Ph Inverter with CTs
- Regular price
- $2,799.00
- Sale price
- $2,799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XVT076A03
Description
The Generac XVT076A03 PWRcell™ 7.6kW single phase inverter is a modern inverter that runs all your home appliances and air-conditioning in the event of a utility power failure. Storms, tornadoes, hurricanes and floods often cause power outages. With a backup source of power, you will not be left in the dark. Continue to run heating in the winter and air conditioners in summer when grid power fails, so your family remains comfortable indoors during power outages.
This Generac XVT076A03 inverter requires no fuel and runs on the solar energy you save in battery modules. Each module offers 3kWh of capacity and you can add as many as six modules to your battery cabinet to run a large house or shop. The inverter supplies ample energy to run your AC, sump pump, furnace, refrigerator, computers and kitchen appliances. The energy storage and supply system is designed for durability and efficiency. Homeowners can now save significantly on their utility bills.
Technical Specifications
| Brand | Generac Generators |
| Rated AC Output: Grid-Tie | 7.6 kW |
| Part Number | XVT076A03 |
| AC Output Voltage: Backup | 120/240, 1Ø VAC |
| AC Circuit Breaker: Backup | 50 Amps |
| DC Input Voltage Range | 360 - 420 VDC |
| Nominal DC Bus Voltage | 380 VDC |
| Supported Battery Types | PWRcell Battery |
| Batteries Per Inverter | Up to 2 |
| Supported PV Optimizers | PV Link |
| Maximum Recommended DC Power from PV | 10 kW |
| Internal DC Distribution Breakers | 4x 2P30A |
| DC Fuses on Plus and Minus | 40 A |
| 2-Pole Disconnect | Yes |
| Protections | Ground-fault, Arc-fault (Type 1 AFCI, Integrated) AC Topology: Transformerless |
| Peak Efficiency | 97% |
| CEC Weighted Efficiency | 96.5% |
| Operating Temperature | -20 to 50 °C (-4 to 122 °F) |
| Dimensions | 622 x 489 x 203 mm (24.5" x 19.25" x 8") |
| Compliance | UL 1741 SA, CSA 22.2, IEEE 1547, Rule 21 |
| Compliance (Cont.) | Rule 14H |
| Peak Motor Starting Current (2 Sec.) | 50 A, RMS |
| Max. Cont. AC Power w/Single PWRcell Battery | 9,000 W |
| Max. Cont. AC Power w/Two PWRcell Batteries | 11,000 W |
Information About XVT076A03
Features
Generac PWRcell™ XVT076A03 7.6kW 1Ph is a single-phase inverter with CTS. The design is simplistic and efficient.
The 60Hz model is the most feature-rich inverter on the market today. It operates without an autotransformer or battery inverter.
This modern 120/240V inverter has a bi-directional, REbus™ powered design. Store and use as much solar power you need.
This unit is suitable for a large or medium-sized home, or a commercial business. Battery modules export stored solar energy to the inverter.
This Generac model connects to the PV Link and Generac PWRcell battery to form the PWRcell system for grid-interactive solar plus storage.
Homeowners enjoy the benefit of using battery power instead of grid power anytime they choose. This power can be sold to the grid as well.
The PWRcell™ inverter can operate in various modes, such as islanding, grid sell, self-consumption, grid support-zero expert, and so forth.
The control panel has LED indicators: The REbus status LED communicates the REbus nano-grid status, while the Inverter LED shows the status of the utility grid and inverter.
This unit is ideal for use as a backup source of power for the whole home or business. It runs quietly at < 40% THD and provides reliable performance in climates where the temperature ranges from -4 to 122 °F (-20 to 50 °C).
The Generac PWRcell™ inverter supports REbus™, CANbus and Ethernet communication interfaces.
A web portal or a mobile app can be used to view the Free System Monitoring using the PWRview™ to check how much energy your house is using. Separate dashboards display solar and battery usage.
The Generac inverter is housed in a Type 3R enclosure for optimal durability.
This unit is ETL, cETL certified, and UL 1741 SA, CSA 22.2 and UL 1998 compliant.
Manufacturer information
Generac, a leading generator manufacturer, specializes in power solutions for residential, commercial, and industrial use. Renowned for reliability and innovation, Generac generators ensure backup power during outages, reflecting a commitment to quality and advanced engineering.
