Y7L623E57 | Broad-Ocean Three-Speed PSC Blower Motor 115 V 1 HP
- Regular price
- $487.00
- Sale price
- $487.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: Y7L623E57
Description

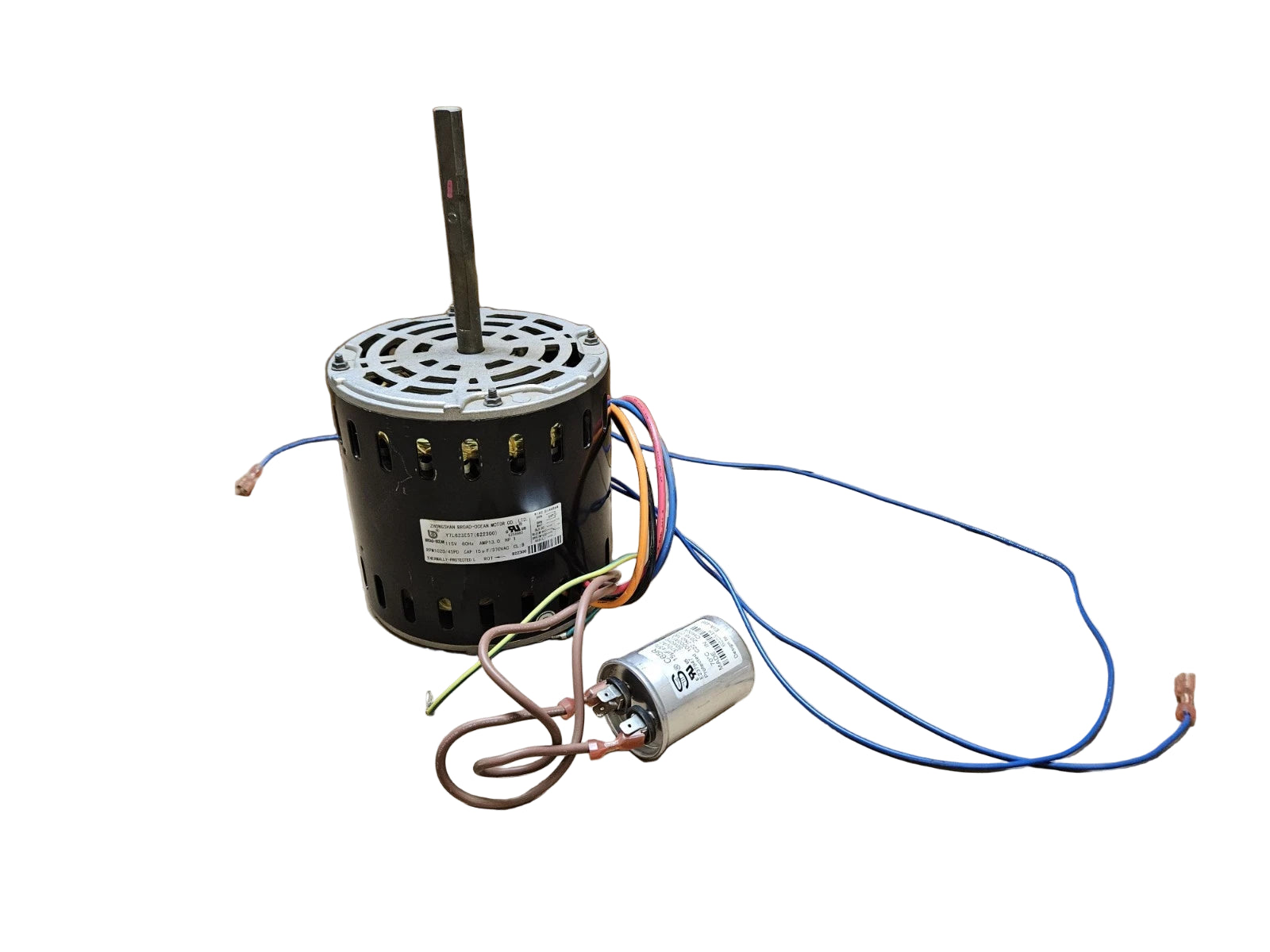

Zhongshan Broad‑Ocean Y7L623E57 is a three‑speed permanent‑split‑capacitor (PSC) blower motor, typically used in Nordyne/Kelvinator and Carrier residential furnace systems. It operates on 115 VAC at 60 Hz, delivering approximately 1 horsepower, with a compact open‑drip‑proof (ODP) design and reversible rotation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Broad-Ocean (OEM for Nordyne/Carrier systems) |
| Category | HVAC Motors / Blower Motors |
| Part Number | Y7L623E57 |
| Subcategory | Three-Speed PSC Blower Motor |
| Voltage | 115 V AC |
| Frequency | 60 Hz |
| Horsepower | 1 HP |
| Amperage | 12.30 A |
| RPM | 1075 RPM |
| Speeds | 3 speeds |
| Enclosure | Open / ODP (open drip proof) |
| Shaft Dimension | ½″ double-flat × 5-15/16″ |
| Frame Size | 48Y |
| Diameter | 5-5/8″ |
| Length | 6.00″ |
| Bearings | Ball, RACGE3595 |
| Rotation | Reversible |
| Protector | Automatic thermal overload protector |
| Service Factor | 1.00 |
| Insulation Class | Class B |
| Ambient Temperature Rating | Up to 40 °C |
| Capacitor Requirement | 20 µF – 370 V (not included) |
| Features | Class B insulation, resilient mounting rings, PSC type |
| Weight | Approximately 10.3 lb (≈ 4.7 kg) |
Information About Y7L623E57
The Y7L623E57, also referenced as Carrier part number 622300, is designed for use in Nordyne/Kelvinator/Kelvinator furnace and air‑handler systems as a replacement blower motor. It supports three-speed operation with PSC design, includes automatic overload protection, and features a reversible shaft orientation for versatile installation. The motor has a robust construction with Class B insulation and comes equipped with resilient mounting rings and a double-flat shaft. Rated for ambient temperatures up to 40 °C, it requires an external 20 µF‑370 V run capacitor (not included). It typically replaces older four‑speed, higher‑amp models while maintaining reliable airflow control and durability.
Key Features:
- Three-speed PSC operation: Provides flexible airflow control and energy efficiency.
- Reversible rotation: Suitable for various installation configurations.
- Durable build: Class B insulation, ball bearings RACGE3595, and resilient mounting rings for long service life.
- Automatic protection: Built-in thermal overload protector prevents damage from overheating or overload.
- Compact design: Open enclosure, ½″ double-flat shaft, 6″ body length.
- OEM compatibility: Direct replacement for various Nordyne and Carrier furnace applications.
- Winding protection: Coated windings resist moisture, aluminum housing aids in heat dissipation.
The Y7L623E57 delivers the performance and reliability needed for consistent HVAC blower operation.
