Y8610U4001 | Honeywell Intermittent Pilot Retrofit Kit (Natural/LP Gas, 24VAC, 150k BTU)
- Regular price
- $494.00
- Sale price
- $494.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: Y8610U4001
Description
The Honeywell Y8610U4001 Intermittent Pilot Retrofit Kit is a universal conversion kit that replaces standing pilot ignition systems with an energy-efficient intermittent pilot ignition. Designed for natural or LP gas applications up to 150,000 BTU/hr, it ensures safe, reliable ignition sequencing and automatic flame monitoring for furnaces, boilers, and other gas-fired heating appliances.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell / Resideo |
| Category | Controls & Indicators |
| Part Number | Y8610U4001 |
| Subcategory | Control Accessory |
| System Type | Intermittent Pilot Retrofit Kit |
| Application | Standing-to-intermittent pilot conversion for gas heating appliances |
| Gas Type | Natural Gas or LP (Propane) |
| Input Capacity | 150,000 BTU/hr |
| Control Voltage | 24 VAC, 60 Hz |
| Ignition Source | Internal high-voltage spark generator |
| Ignition Sequence | Continuous retry with 6-minute delay between trials |
| Ignition Trial Time | 15 or 90 seconds (selectable) |
| Lockout Timing | 15 or 90 seconds |
| Pre-Purge Time | 0 or 30 seconds |
| Flame Sense | Single or dual rod |
| Flame Failure Response | 2 seconds maximum |
| Gas Valve Model | VR8204A2142 dual valve (1/2" x 1/2" NPT) |
| Max Valve Load | 1A pilot, 2A main @ 24 VAC |
| Typical Pressure Setting | 3.5" W.C. outlet pressure |
| Ambient Temperature Range | –40°F to +165°F (–40°C to +74°C) |
| Safety Standard Compliance | ANSI Z21.71, CSA Certified |
| Typical Use | Furnaces, boilers, unit heaters, and gas-fired atmospheric appliances |
| Included Components | Gas valve, ignition module, pilot burner assembly, wiring harness, LP conversion kit |
| Dimensions | 3.9" H × 5.4" W × 2.6" D |
| Weight | 3.20 lbs |
Information About Y8610U4001

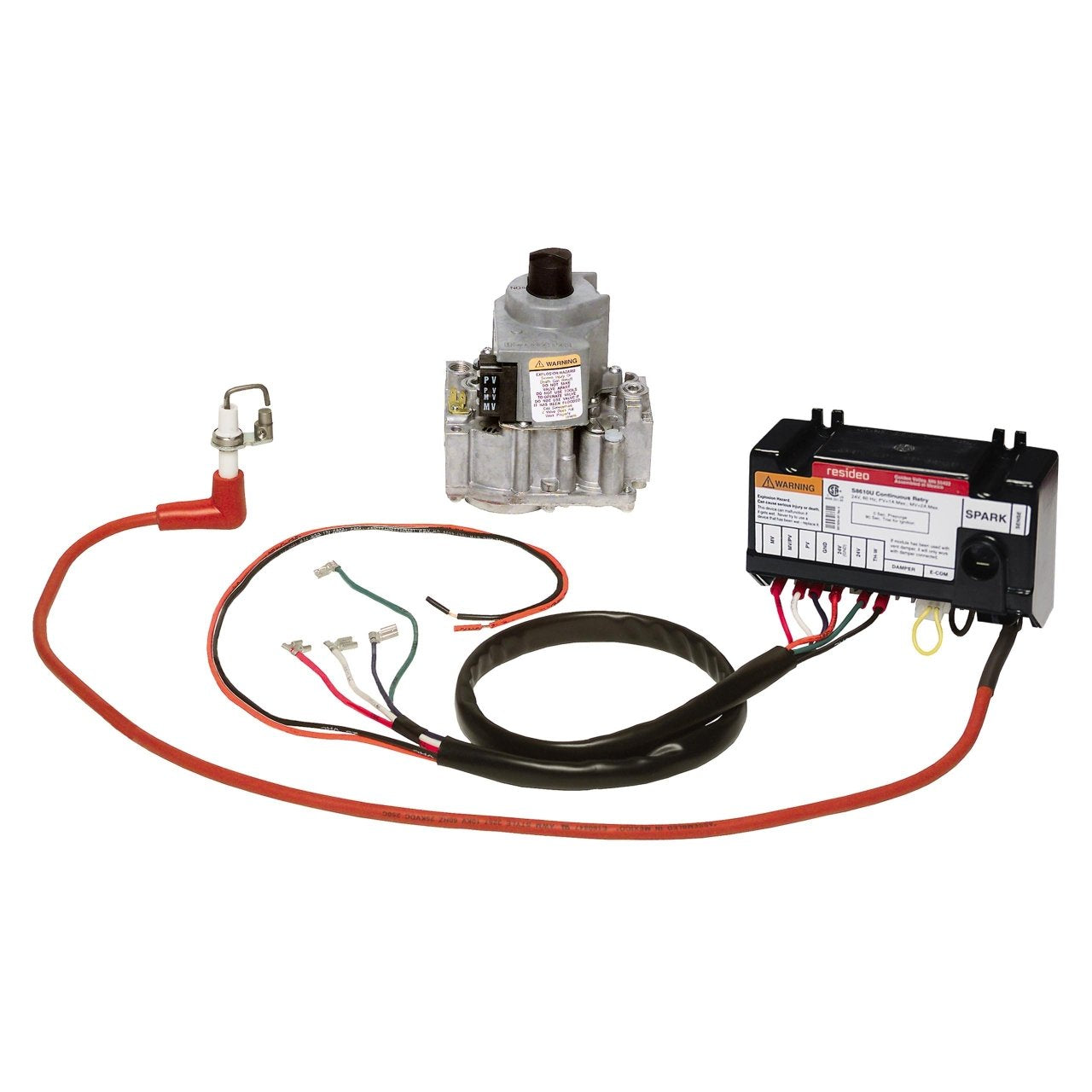

The Y8610U4001 kit includes all components required to convert conventional standing pilot systems into modern intermittent pilot systems, improving energy efficiency and reliability. It features the S8610U3009 ignition module and VR8204A2142 dual gas valve, providing electronic control of ignition, flame sense, and safety shutoff. The module operates on 24 VAC power and supports both single-rod and dual-rod flame sensing. Designed for retrofit use, it continuously retries ignition after failed attempts, shutting off gas safely between trials. This kit meets ANSI Z21.71 standards for automatic intermittent pilot ignition systems used in central furnaces and boilers.
Key Features:
- Universal Retrofit Kit: Converts standing pilot systems to intermittent pilot operation.
- Dual Gas Compatibility: Works with natural gas or LP (propane) systems up to 150,000 BTU/hr.
- Complete Assembly: Includes ignition module, gas valve, pilot burner, wiring harness, and hardware.
- Continuous Retry Ignition: Automatically repeats ignition attempts every 6 minutes until flame established.
- Integrated Safety Shutoff: Provides 100% pilot gas shutoff if ignition fails.
- Smart Ignition Control: S8610U3009 module manages sequencing, pre-purge, and flame sensing.
- Fast Flame Response: Detects flame failure within 2 seconds for rapid safety shutdown.
- Selectable Trial Times: Offers 15 or 90-second ignition trial settings with lockout options.
- 24 VAC Operation: Standard low-voltage control compatible with most thermostats.
- LED Status Indicators: Dual LEDs show flame strength and system diagnostics.
- Rugged Reliability: Designed for furnaces, boilers, unit heaters, and other atmospheric appliances.
The Y8610U4001 delivers modern electronic ignition performance and enhanced safety for retrofit heating systems.
