Y8610U6006 | Honeywell Intermittent Pilot Conversion Kit (270,000 BTU, Natural/LP Gas, 24VAC)
- Regular price
- $452.00
- Sale price
- $452.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: Y8610U6006
Description
The Honeywell Y8610U6006 Intermittent Pilot Control Conversion Kit is a complete retrofit system that converts conventional standing pilot gas appliances into modern intermittent pilot ignition systems. Designed for natural or LP gas applications up to 270,000 BTU/hr, it ensures safe, efficient ignition sequencing and automatic flame monitoring for furnaces, boilers, and heating appliances.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell / Resideo |
| Category | Machine Parts |
| Part Number | Y8610U6006 |
| Subcategory | Assembly for Machine |
| Type | Intermittent Pilot Control Conversion Kit |
| System Type | Retrofit ignition control system |
| Input Capacity | 270,000 BTU/hr |
| Control Voltage | 24 VAC, 60 Hz |
| Current Load | 1A Pilot, 2A Main @ 24 VAC |
| Ignition System | Intermittent Pilot, continuous retry sequence |
| Ignition Source | Internal high-voltage spark generator |
| Ignition Trial Time | 15 or 90 seconds (selectable) |
| Lockout Timing | 15 or 90 seconds |
| Pre-Purge Time | 0 or 30 seconds |
| Flame Sense | Single or dual rod sensing |
| Flame Failure Response | ≤2 seconds |
| Gas Compatibility | Natural Gas or LP (propane) |
| Included Gas Valve | VR8304M3558 (½" x ¾", 3.5" W.C. outlet, 270k BTU/hr) |
| Ignition Hardware | Q345 / Q3451 pilot assemblies |
| Operating Temperature | –40°F to +165°F (–40°C to +74°C) |
| Safety Compliance | ANSI Z21.71 / CSA Certified |
| Dimensions | 3.9" H × 5.4" W × 2.6" D (100 × 138 × 67 mm) |
| Installation | Retrofit for atmospheric furnaces, boilers, heaters |
| Typical Applications | Gas-fired atmospheric furnaces and boilers |
| Weight | 3.20 lbs |
Information About Y8610U6006

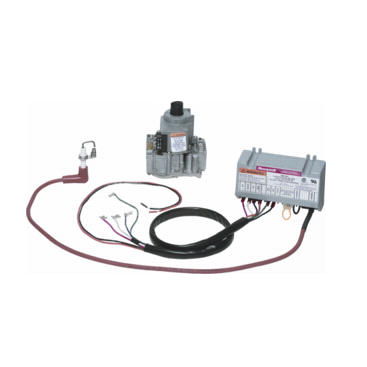

The Y8610U6006 is part of Honeywell’s Y8610U universal retrofit series, providing a simple and energy-efficient upgrade for older gas-fired systems. This model includes the VR8304M3558 dual gas valve (½" × ¾", 3.5" W.C. outlet pressure), an S8610U ignition control module, pilot burner hardware, ignition cable, and wiring harness. It supports both natural and LP gas, using an internal high-voltage spark generator and continuous retry ignition sequence to ensure reliable lighting. The system provides 100% pilot gas shutoff on flame failure and automatic reattempt after a 6-minute delay. Built to meet ANSI Z21.71 safety standards, the kit offers selectable pre-purge, ignition trial time, and lockout timing for flexible configuration.
Key Features:
- Complete Retrofit Kit: Converts standing pilot systems to modern intermittent pilot operation.
- High Capacity Design: Rated for gas appliances up to 270,000 BTU/hr.
- Universal Gas Compatibility: Works with both natural gas and LP (propane).
- Integrated Safety Shutoff: 100% pilot gas shutoff in case of ignition failure.
- Automatic Retry Function: Repeats ignition attempts every 6 minutes until flame is established.
- Adjustable Trial Settings: Selectable 15 or 90-second ignition and lockout timings.
- Internal Spark Generator: High-voltage ignition source eliminates need for external modules.
- Dual Gas Valve Included: Comes with VR8304M3558 ½" × ¾" dual combination gas valve.
- Wide Temperature Range: Operates reliably from –40°F to +165°F (–40°C to +74°C).
- LED Diagnostics: Provides flame signal and system status indication for quick troubleshooting.
- Energy Efficient Retrofit: Reduces pilot gas consumption by eliminating standing flame.
The Y8610U6006 provides safe, efficient, and easy conversion for atmospheric gas-fired furnaces, boilers, and unit heaters requiring intermittent ignition control.
