Yaskawa CIMR-AU4A0362AAA A1000 AC Variable Frequency Drive for Industrial Motor Control
- Regular price
- $14,999.00
- Sale price
- $14,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CIMR-AU4A0362AAA
Description

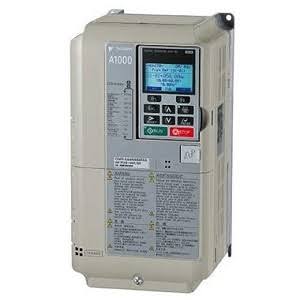

The Yaskawa CIMR-AU4A0362AAA is an A1000 AC drive for controlling motor speed and torque in industrial equipment. This 480 V class model provides 362 A and 300 HP in normal duty operation, or 304 A and 250 HP in heavy duty operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Motor Control |
| Part Number | CIMR-AU4A0362AAA |
| Subcategory | AC Variable Frequency Drives |
| Product Line | A1000 |
| Drive Type | Industrial AC variable frequency drive |
| Voltage Class | 480 VAC |
| Input Phase | Three-phase |
| Normal Duty Output Current | 362 A |
| Heavy Duty Output Current | 304 A |
| Normal Duty Motor Rating | 300 HP |
| Heavy Duty Motor Rating | 250 HP |
| Control Methods | Open-loop and closed-loop vector; V/f control |
| Output Frequency Range | 0–400 Hz |
| Standard Enclosure | Protected chassis, IP00 |
| Built-In Communication | MEMOBUS/Modbus RTU over RS-422/485 |
| Operating Temperature | −10 to +50°C for chassis installation; −10 to +40°C with zero side clearance or Type 1 configuration |
| Dimensions | 31.50 × 19.69 × 13.78 in (H × W × D), standard chassis |
| Weight | 235.9 lb (107 kg) |
Information About CIMR-AU4A0362AAA
The CIMR-AU4A0362AAA is part of Yaskawa’s A1000 family of industrial variable frequency drives. Its standard protected chassis construction is intended for installation inside a suitable electrical enclosure. The platform supports V/f and vector control, with encoder feedback operation available through compatible option hardware. Built-in serial communication and configurable I/O allow integration with machine controllers and automation systems.
Key Features:
- Selectable Duty Ratings: Supports normal duty or heavy duty operation according to the connected load.
- Normal Duty Capacity: Provides a rated output of 362 A for applications up to 300 HP.
- Heavy Duty Capacity: Provides a rated output of 304 A for applications up to 250 HP.
- Vector Control: Supports motor speed and torque regulation using open-loop or compatible feedback-based control.
- Motor Auto-Tuning: Adjusts motor-related parameters during commissioning to support the selected control mode.
- Built-In Communication: Provides MEMOBUS/Modbus RTU communication for connection to compatible control equipment.
- Configurable I/O: Supports external commands, speed references, and operating status signals.
- Protected Chassis: Provides an IP00 configuration for installation within an appropriate cabinet.
The CIMR-AU4A0362AAA delivers the reliability and precision required for motor speed and torque control in industrial machinery and automation systems.
