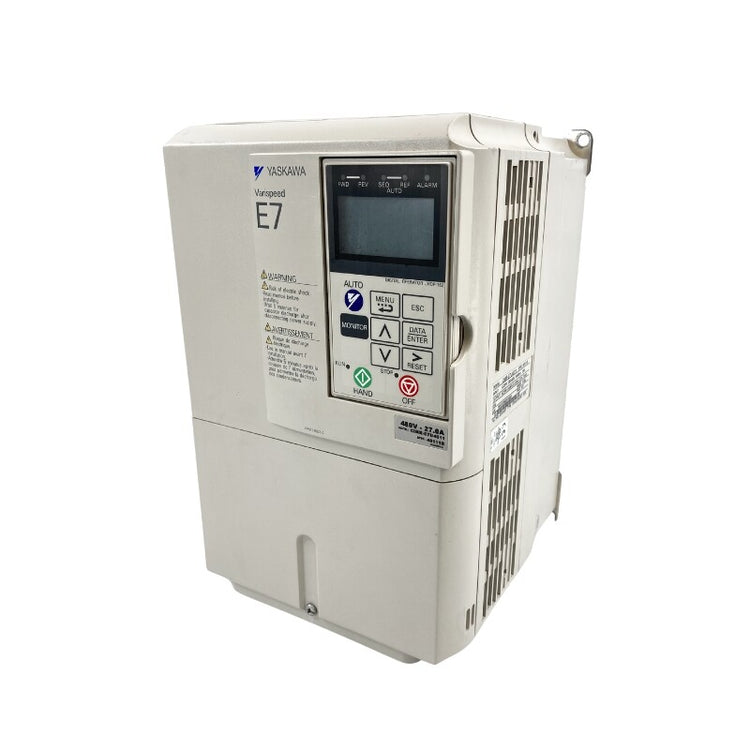

Yaskawa CIMR-E7U4011 Varispeed E7 Variable Frequency Drive
- Regular price
- $4,999.00
- Sale price
- $4,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CIMR-E7U4011
Description
The Yaskawa CIMR-E7U4011 is an E7 series variable frequency drive designed for variable-torque applications such as HVAC fans and centrifugal pumps. It accepts a 380–480 V AC three-phase supply and provides a rated output current of 27 A for compatible motor installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Drives |
| Part Number | CIMR-E7U4011 |
| Subcategory | Drive |
| Series | Varispeed E7 |
| Product Type | Variable-Torque Variable Frequency Drive |
| Input Voltage | 380–480 V AC |
| Input Phase | Three-phase |
| Input Frequency | 50/60 Hz |
| Rated Input Current | 33 A |
| Rated Output Current | 27 A |
| Rated Apparent Power | 21 kVA |
| Output Voltage | 0–480 V AC; maximum depends on input voltage |
| Output Frequency | 0–120 Hz |
| Enclosure Rating | NEMA Type 1 / IP20 |
| Ambient Operating Temperature | −10 to +40°C |
| Storage Temperature | −20 to +60°C |
| Maximum Relative Humidity | 95%, non-condensing |
| Installation Altitude | Up to 1000 m / 3280 ft under standard rating conditions |
| Weight | 13.00 lbs |
Information About CIMR-E7U4011
The CIMR-E7U4011 is part of Yaskawa’s Varispeed E7 inverter family for building services and industrial motor control. Its power conversion stage supplies adjustable voltage and frequency to regulate the speed of a connected AC motor. The standard enclosure is rated NEMA Type 1 / IP20 for installation in suitable indoor environments. Drive selection requires matching the motor current, supply voltage, load characteristics, and installation conditions to the application.
Key Features:
- Variable-Torque Applications: Designed for motor speed regulation in HVAC fans and centrifugal pumps.
- Three-Phase Input: Operates from a 380–480 V AC three-phase power supply.
- Rated Output Current: Provides 27 A of rated motor output current.
- Input Current Rating: Specifies a rated input current of 33 A.
- Adjustable Output Frequency: Supports an output frequency range of 0–120 Hz, subject to motor operating limits.
- Variable Output Voltage: Supplies controlled output voltage up to the available input voltage.
- NEMA Type 1 Enclosure: Provides an IP20 enclosure for suitable indoor installations.
The CIMR-E7U4011 delivers the reliability and precision required for variable-speed control of compatible fan and pump systems.
