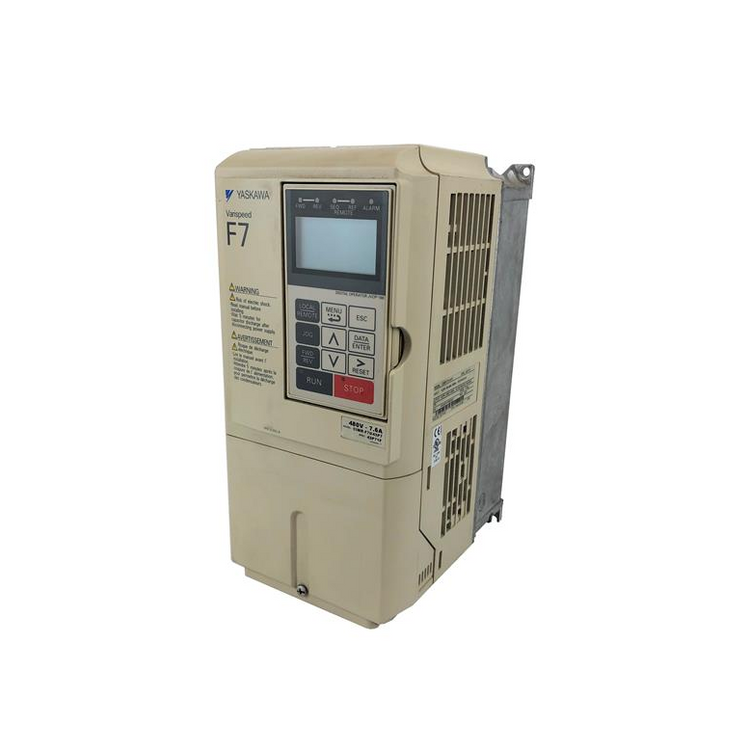

Yaskawa CIMR-F7U43P7 Varispeed F7 Variable Frequency Drive
- Regular price
- $2,499.00
- Sale price
- $2,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CIMR-F7U43P7
Description
The Yaskawa CIMR-F7U43P7 is a Varispeed F7 variable frequency drive for speed and torque control of compatible industrial AC motors. It operates from a 380–480 V AC three-phase supply and provides a rated output current of 7.6 A with a listed motor rating of 5 HP.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Drives |
| Part Number | CIMR-F7U43P7 |
| Subcategory | Drive |
| Series | Varispeed F7 |
| Product Type | Variable Frequency Drive / AC Inverter |
| Input Voltage | 380–480 V AC |
| Input Phase | Three-phase |
| Input Frequency | 50/60 Hz |
| Listed Input Current | 9.0 A, HD and ND |
| Rated Output Current | 7.6 A, HD and ND |
| Rated Output Capacity | 5.8 kVA |
| Nominal Motor Rating | 5 HP |
| Output Voltage | 0–480 V AC; maximum depends on input voltage |
| Output Phase | Three-phase |
| Maximum Output Frequency | 300 Hz in HD; 400 Hz in normal-duty modes |
| Control Methods | V/f, V/f with PG feedback, open-loop vector, and closed-loop flux vector |
| Feedback Control Requirements | Compatible encoder and PG interface hardware |
| Standard Enclosure Rating | NEMA Type 1 / IP20 |
| Weight | 8.8 lbs |
Information About CIMR-F7U43P7
The CIMR-F7U43P7 is part of Yaskawa’s F7 series of general-purpose industrial inverters. It supports V/f and open-loop vector control, with feedback-based control available when the required encoder interface is installed. Heavy-duty and normal-duty selections determine overload capability, carrier frequency, and maximum output frequency. Yaskawa lists the standard model with a NEMA Type 1 / IP20 enclosure.
Key Features:
- Three-Phase Supply: Accepts a 380–480 V AC input at 50/60 Hz.
- Rated Output Current: Provides 7.6 A for compatible motor installations.
- Motor Capacity: Lists a nominal motor rating of 5 HP.
- Output Capacity: Specifies an apparent output power rating of 5.8 kVA.
- Selectable Control Methods: Supports V/f and open-loop vector operation, plus feedback-based modes with appropriate hardware.
- Duty Configuration: Offers heavy-duty and normal-duty settings to match application requirements.
- Adjustable Output Frequency: Supports up to 300 Hz in heavy-duty mode or 400 Hz in normal-duty modes.
- Standard Enclosure: Uses a NEMA Type 1 / IP20 housing for suitable indoor installations.
The CIMR-F7U43P7 delivers the reliability and precision required for configurable motor speed and torque control in industrial machinery.
