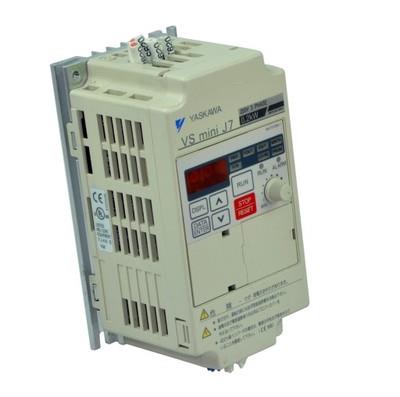

Yaskawa CIMR-J7AA20P7 VS Mini J7 AC Variable Frequency Drive for Motor Speed Control
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CIMR-J7AA20P7
Description
The Yaskawa CIMR-J7AA20P7 is a compact AC drive that adjusts motor speed by varying output frequency and voltage. It operates from a three-phase 200–230 VAC supply and is suitable for general-purpose motor applications such as conveyors, fans, and small machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Motor Control |
| Part Number | CIMR-J7AA20P7 |
| Subcategory | AC Variable Frequency Drives |
| Series | VS mini J7 |
| Product Type | AC frequency inverter |
| Applicable Motor Power | 0.75 kW / approximately 1 HP |
| Input Voltage | 200–230 VAC |
| Input Phase | Three-phase |
| Input Frequency | 50/60 Hz |
| Rated Input Current | 6.4 A |
| Rated Output Current | 5.0 A |
| Output Phase | Three-phase |
| Output Voltage | Variable; maximum corresponds to input voltage |
| Control Method | V/f control |
| Modulation Method | Pulse-width modulation |
| Operator Interface | Local digital operator with LED display |
| Acceleration/Deceleration | Programmable |
| Weight | 1.70 lb (0.77 kg) |
Information About CIMR-J7AA20P7
The CIMR-J7AA20P7 is part of Yaskawa’s VS mini J7 series of general-purpose frequency inverters. Its compact construction combines power conversion electronics with a local digital operator for setup and monitoring. The series uses V/f control and pulse-width modulation to operate compatible AC induction motors. Programmable inputs and adjustable operating parameters allow integration with the machine’s control requirements.
Key Features:
- Adjustable Motor Speed: Changes output frequency to match the motor speed required by the application.
- V/f Control: Coordinates voltage and frequency for general-purpose induction motor operation.
- PWM Technology: Uses pulse-width modulation to generate the motor output.
- Three-Phase Supply: Accepts 200–230 VAC input at 50/60 Hz.
- Programmable Ramps: Allows acceleration and deceleration settings to suit the connected equipment.
- Local Digital Operator: Provides access to parameter settings and operating information.
- Control Inputs: Supports external commands through digital and analog input connections.
- Compact Construction: Suits installations where control cabinet space is limited.
The CIMR-J7AA20P7 delivers the reliability and precision required for adjustable motor speed control in general-purpose industrial equipment.
