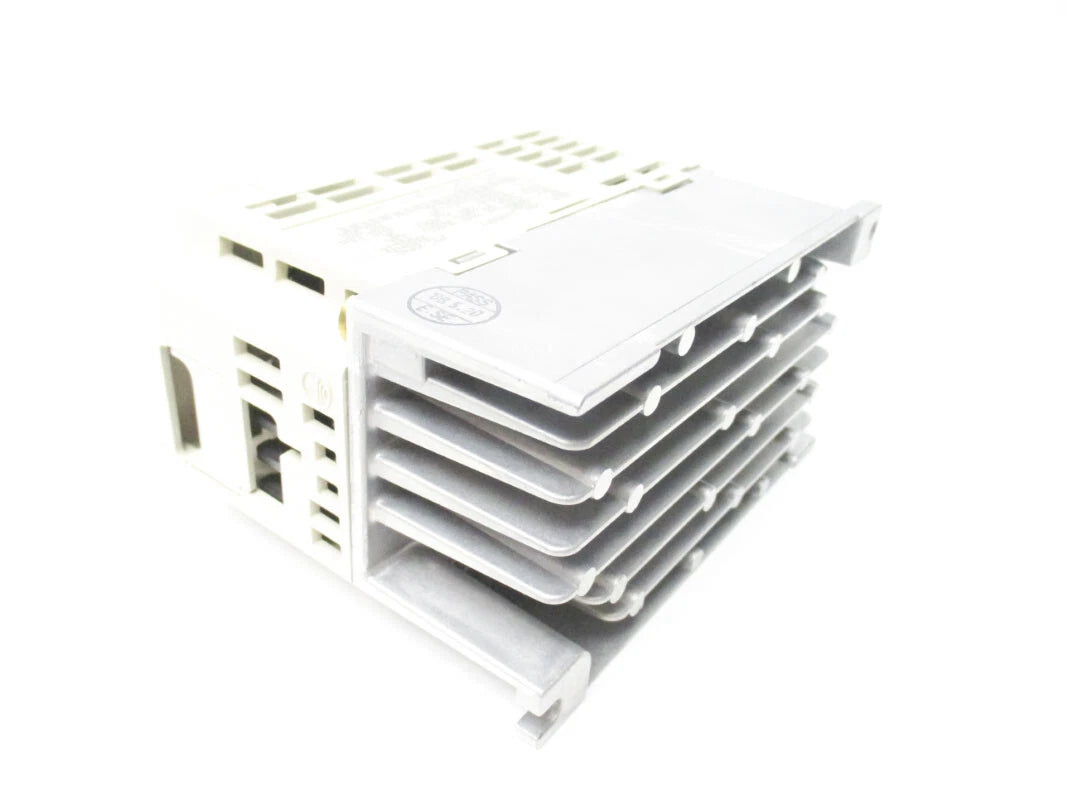

Yaskawa CIMR-J7AM20P4 VS mini J7 Variable Frequency Drive
- Regular price
- $1,232.00
- Sale price
- $1,232.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CIMR-J7AM20P4
Description
The Yaskawa CIMR-J7AM20P4 is a compact 0.4 kW variable frequency drive designed to regulate the speed of three-phase AC motors. Part of the VS mini J7 family, it uses V/f control for general-purpose applications such as conveyors, pumps, and fans.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Drives |
| Part Number | CIMR-J7AM20P4 |
| Subcategory | Drive |
| Series | VS mini J7 |
| Product Type | Variable Frequency Drive (VFD) |
| Nominal Motor Power | 0.4 kW / 0.5 HP |
| Input Voltage | 200–230 V AC |
| Input Phase | Three-phase |
| Input Frequency | 50/60 Hz |
| Rated Input Current | 3.9 A |
| Rated Output Current | 3.0 A |
| Drive Capacity | 1.1 kVA |
| Maximum Output Voltage | Proportional to input voltage, 200–230 V AC |
| Output Phase | Three-phase |
| Frequency Control Range | 0.1–400 Hz |
| Control Method | Sine-wave PWM with V/f control |
| Enclosure Type | Protected chassis |
| Weight | 0.70 kg |
Information About CIMR-J7AM20P4
The CIMR-J7AM20P4 is a VS mini J7 series microdrive for low-power industrial motor applications. Its compact chassis supports installation in equipment where panel space is limited. Sine-wave PWM technology controls motor voltage and frequency through an adjustable V/f pattern. It is intended for compatible three-phase AC motors, with selection based on motor current, supply voltage, and load requirements.
Key Features:
- Motor Power Rating: Supports a nominal motor power of 0.4 kW, equivalent to approximately 0.5 HP.
- V/f Control: Adjusts motor voltage relative to frequency for general-purpose speed regulation.
- Three-Phase Supply: Operates from a 200–230 V AC three-phase input.
- Rated Output Current: Provides 3.0 A of rated current for compatible motors.
- Adjustable Frequency: Offers a frequency control range of 0.1–400 Hz, subject to motor operating limits.
- Configurable V/f Pattern: Allows voltage and frequency settings to be tailored to motor and load characteristics.
- Acceleration and Deceleration: Provides programmable ramp settings for controlled speed changes.
- Compact Construction: Fits low-power machinery and control panels with limited installation space.
The CIMR-J7AM20P4 delivers the reliability and precision required for routine speed control of small industrial AC motors.
