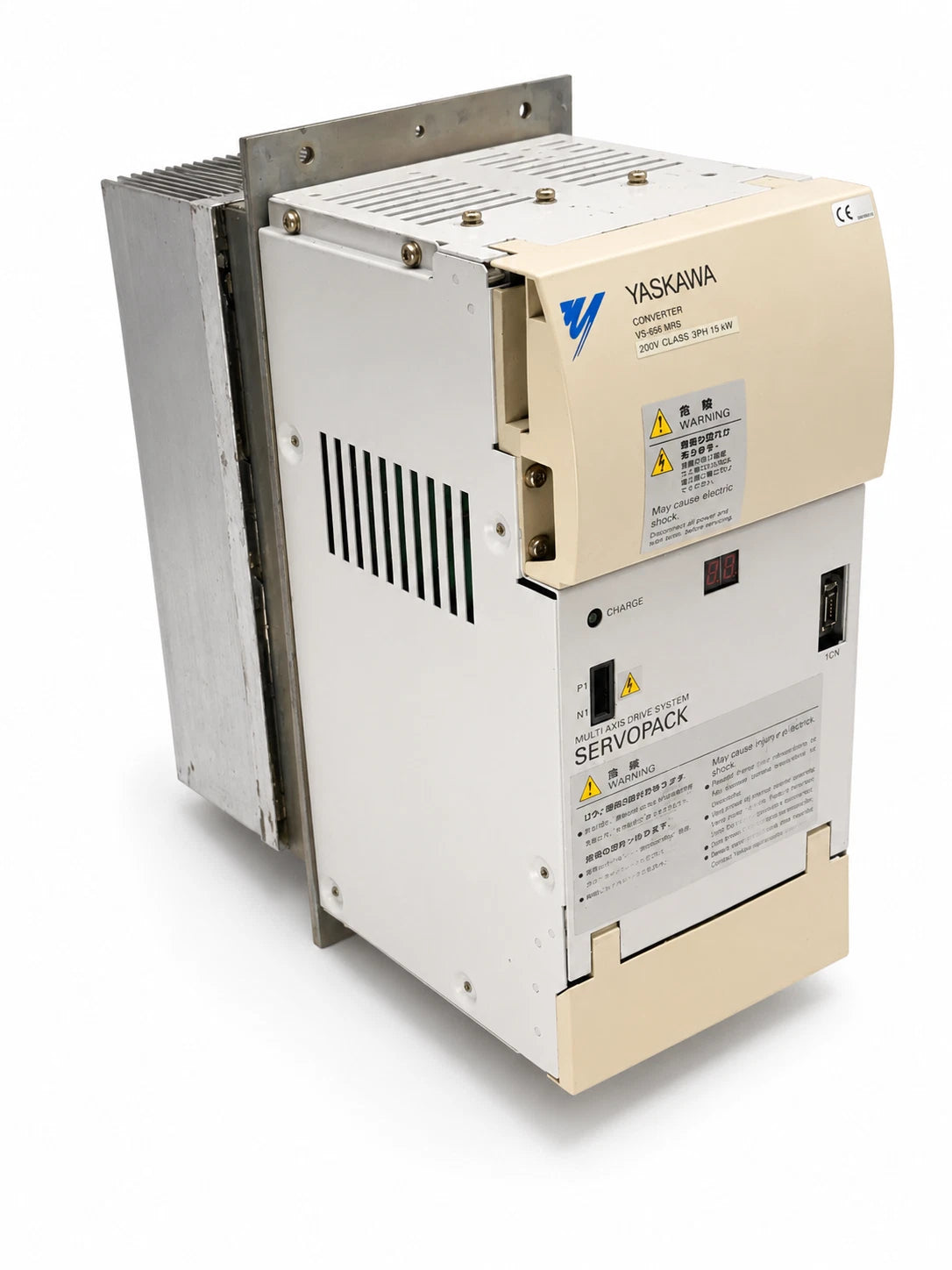

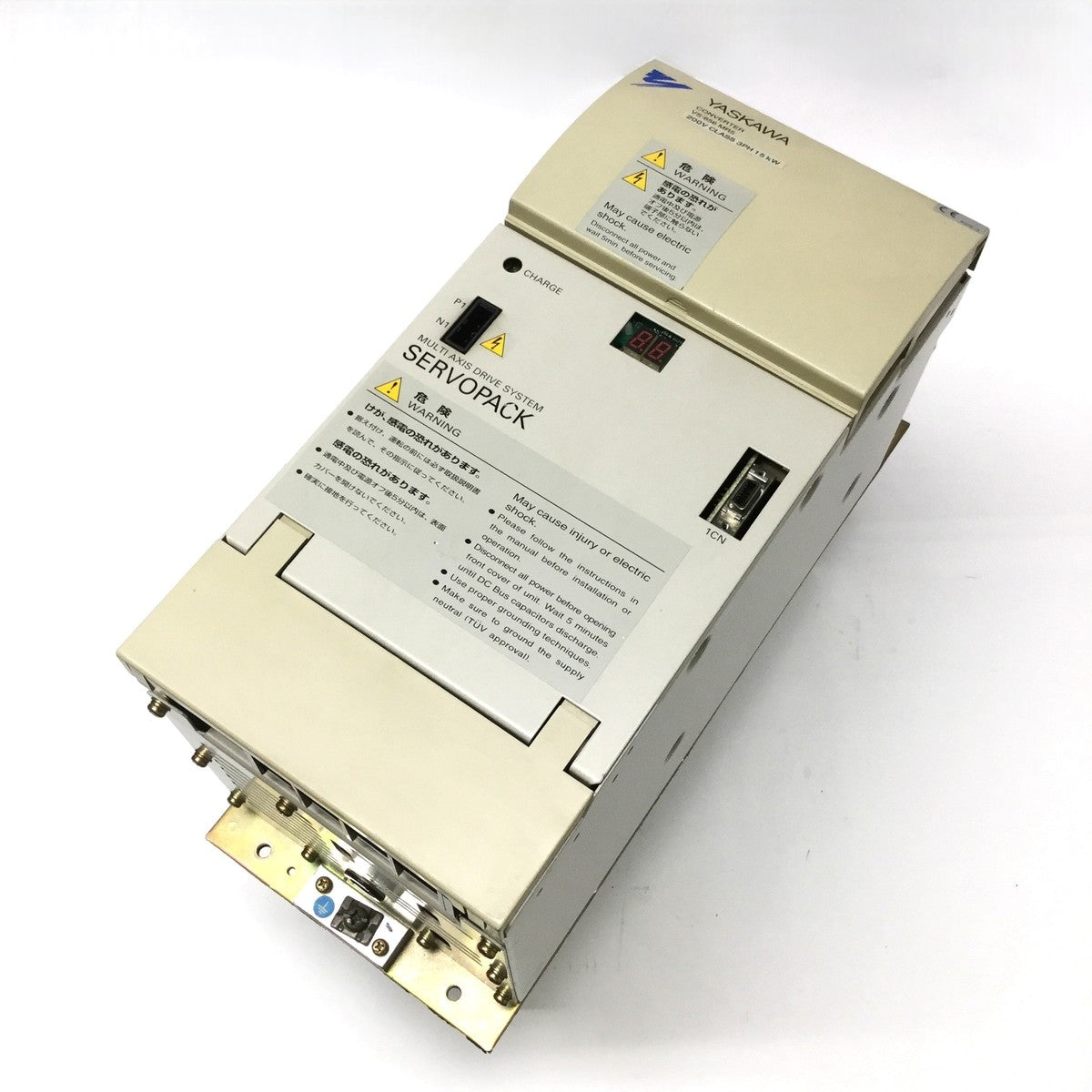

Yaskawa CIMR-MR5N2015 Varispeed Regenerative Power Converter for CNC Spindle Drive Systems
- Regular price
- $6,657.00
- Sale price
- $6,657.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CIMR-MR5N2015
Description
The Yaskawa CIMR-MR5N2015 is a regenerative power converter that supplies DC power to compatible CNC spindle drive systems. It accepts three-phase 200–230 VAC input and provides 270–325 VDC output, with an output capacity of 18.6 kW for the 15 kW application class.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Servo Products |
| Part Number | CIMR-MR5N2015 |
| Subcategory | CNC Converters |
| Series | Varispeed VS-656MR5 |
| Product Type | Regenerative AC-to-DC power converter |
| System Version | MR5N; NC system application |
| Main Input Voltage | 200/220/230 VAC |
| Main Input Phase | Three-phase |
| Input Frequency | 50/60 Hz at 200/220 V; 60 Hz at 230 V |
| Required Power Source Capacity | 24 kVA |
| Output Voltage | 270–325 VDC |
| Applicable Capacity | 15 kW |
| Converter Output Capacity | 18.6 kW |
| Control Method | Power regenerative control; 120° current conduction |
| Overload Capacity | 120% for 60 seconds; 200% for 1 second |
| Specified AC Reactor Code | X010061 |
| Weight | 37.50 lb (17.01 kg), supplier-listed weight |
Information About CIMR-MR5N2015
The CIMR-MR5N2015 is part of the Yaskawa Varispeed VS-656MR5 converter family used with M5 spindle drive equipment. The N designation identifies the version intended for NC system integration. Its power regenerative control allows energy from deceleration to return to the AC supply. Installation requires the appropriate power supply circuit, AC reactor, and matching inverter configuration.
Key Features:
- AC-to-DC Conversion: Supplies the DC link required by compatible spindle inverter equipment.
- Regenerative Operation: Returns braking energy to the AC power source during supported operating conditions.
- Three-Phase Input: Operates from the specified 200–230 VAC supply.
- DC Output Range: Provides 270–325 VDC for the connected drive power stage.
- Application Capacity: Designed for the 15 kW application class, with 18.6 kW converter output capacity.
- NC System Version: Uses the MR5N configuration intended for numerical control installations.
- Power Source Requirement: Specifies a required supply capacity of 24 kVA.
- Overload Capability: Supports 120% overload for 60 seconds and 200% for 1 second under manufacturer-defined conditions.
The CIMR-MR5N2015 delivers the reliability and precision required for DC power conversion and regenerative operation in compatible CNC spindle drive systems.
