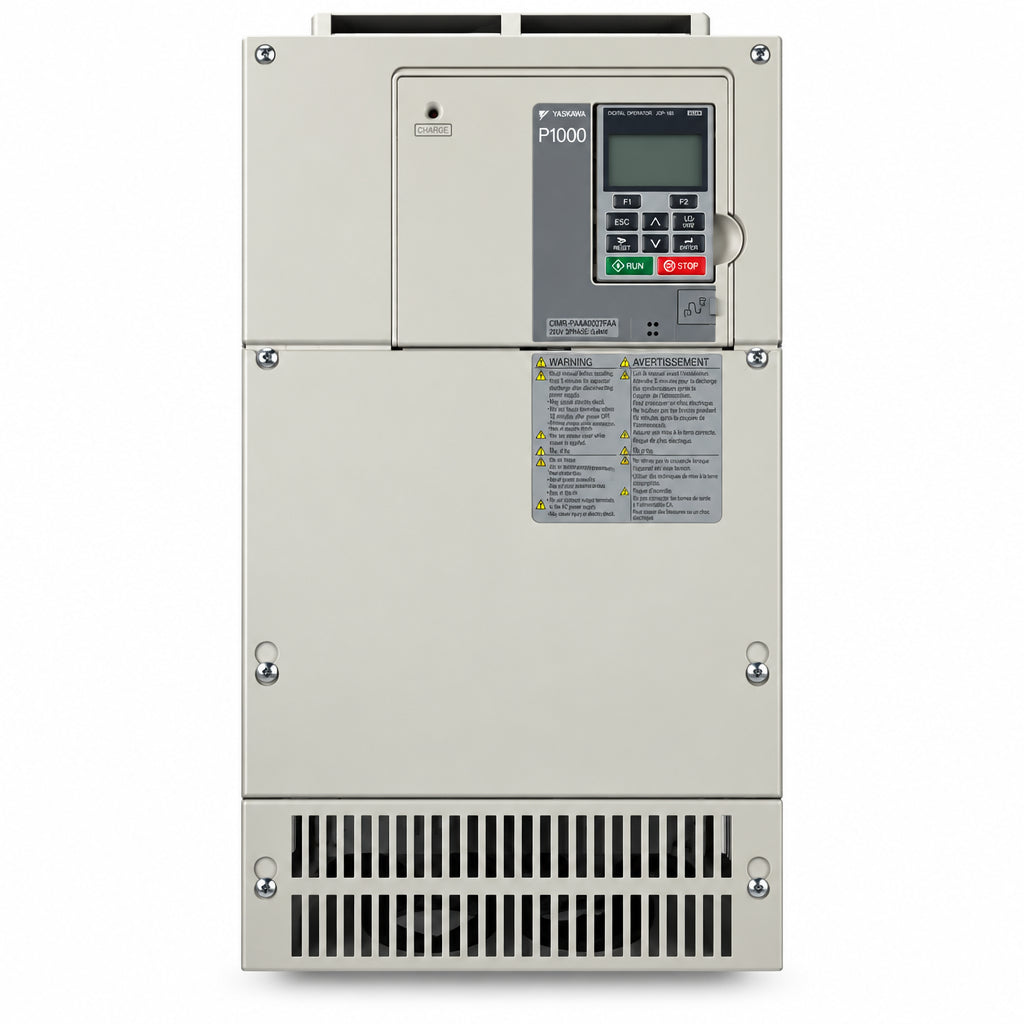

Yaskawa CIMR-PU4A0072FAA P1000 Variable Frequency Drive
- Regular price
- $7,999.00
- Sale price
- $7,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CIMR-PU4A0072FAA
Description
Yaskawa CIMR-PU4A0072FAA is a P1000 Series variable frequency drive designed for speed and frequency control of three-phase AC motors. It operates from a 380–480 VAC supply and provides a 72 A rated output with 50 HP normal-duty capacity for industrial motor-driven equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Drives |
| Part Number | CIMR-PU4A0072FAA |
| Subcategory | Variable Frequency Drives |
| Series | P1000 |
| Product Type | AC Variable Frequency Drive |
| Drive Type | Standard Drive |
| Voltage Class | 400 V Class |
| Input Voltage | 380–480 VAC |
| Input Phase | 3-Phase |
| Rated Power | 50 HP, Normal Duty |
| Rated Output Current | 72 A, Normal Duty |
| Output Frequency | 0.01–400 Hz |
| Communication | RS-422, RS-485 |
| Enclosure Type | NEMA 1 / IP20 |
| Cooling Method | Forced Ventilation / Fan Cooling |
| DC Choke | Integrated |
| Mounting | Wall Mount |
| Weight | 59.5 lb |
Information About CIMR-PU4A0072FAA
The CIMR-PU4A0072FAA is a Yaskawa P1000 Series standard AC drive built for variable-speed motor control in commercial and industrial systems. Its 400 V class design supports three-phase 380–480 VAC input power and an adjustable output frequency range from 0.01 to 400 Hz. The drive uses a NEMA 1/IP20 enclosure with forced-air cooling and an integrated DC choke for compatible indoor installations. RS-422 and RS-485 communication capabilities provide connectivity for integration with supported automation and supervisory control systems.
Key Features:
- P1000 Series Platform: Part of Yaskawa's P1000 family of variable frequency drives for AC motor control.
- 50 HP Normal Duty: Provides a rated 50 HP capacity for compatible normal-duty motor applications.
- 72 A Output Current: Delivers a rated output current of 72 A under normal-duty operating conditions.
- 380–480 VAC Input: Designed for three-phase 400 V class industrial electrical systems.
- Variable Frequency Output: Provides an adjustable output frequency range from 0.01 to 400 Hz for motor speed control.
- Integrated Communications: Supports RS-422 and RS-485 communication for compatible automation system integration.
- Integrated DC Choke: Incorporates a DC choke as part of the drive's power configuration.
- Forced-Air Cooling: Uses fan-assisted ventilation to manage operating temperature during drive operation.
The CIMR-PU4A0072FAA delivers the reliability and precision required for variable-speed AC motor control in industrial and commercial equipment applications.
Description
Yaskawa CIMR-PU4A0072FAA is a P1000 Series variable frequency drive designed for speed and frequency control of three-phase AC motors. It operates from a 380–480 VAC supply and provides a 72 A rated output with 50 HP normal-duty capacity for industrial motor-driven equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Drives |
| Part Number | CIMR-PU4A0072FAA |
| Subcategory | Variable Frequency Drives |
| Series | P1000 |
| Product Type | AC Variable Frequency Drive |
| Drive Type | Standard Drive |
| Voltage Class | 400 V Class |
| Input Voltage | 380–480 VAC |
| Input Phase | 3-Phase |
| Rated Power | 50 HP, Normal Duty |
| Rated Output Current | 72 A, Normal Duty |
| Output Frequency | 0.01–400 Hz |
| Communication | RS-422, RS-485 |
| Enclosure Type | NEMA 1 / IP20 |
| Cooling Method | Forced Ventilation / Fan Cooling |
| DC Choke | Integrated |
| Mounting | Wall Mount |
| Weight | 59.5 lb |
Information About CIMR-PU4A0072FAA
The CIMR-PU4A0072FAA is a Yaskawa P1000 Series standard AC drive built for variable-speed motor control in commercial and industrial systems. Its 400 V class design supports three-phase 380–480 VAC input power and an adjustable output frequency range from 0.01 to 400 Hz. The drive uses a NEMA 1/IP20 enclosure with forced-air cooling and an integrated DC choke for compatible indoor installations. RS-422 and RS-485 communication capabilities provide connectivity for integration with supported automation and supervisory control systems.
Key Features:
- P1000 Series Platform: Part of Yaskawa's P1000 family of variable frequency drives for AC motor control.
- 50 HP Normal Duty: Provides a rated 50 HP capacity for compatible normal-duty motor applications.
- 72 A Output Current: Delivers a rated output current of 72 A under normal-duty operating conditions.
- 380–480 VAC Input: Designed for three-phase 400 V class industrial electrical systems.
- Variable Frequency Output: Provides an adjustable output frequency range from 0.01 to 400 Hz for motor speed control.
- Integrated Communications: Supports RS-422 and RS-485 communication for compatible automation system integration.
- Integrated DC Choke: Incorporates a DC choke as part of the drive's power configuration.
- Forced-Air Cooling: Uses fan-assisted ventilation to manage operating temperature during drive operation.
The CIMR-PU4A0072FAA delivers the reliability and precision required for variable-speed AC motor control in industrial and commercial equipment applications.
