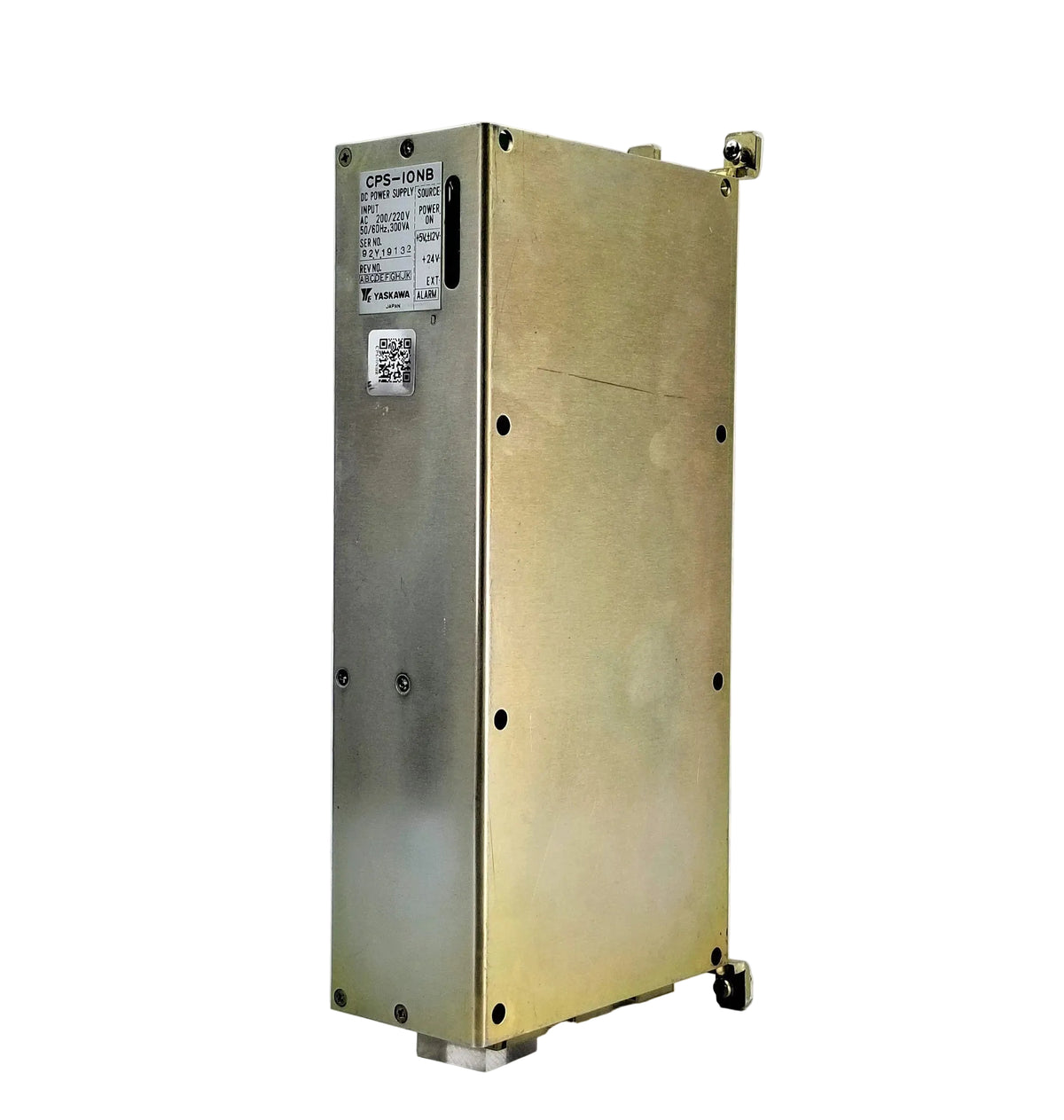

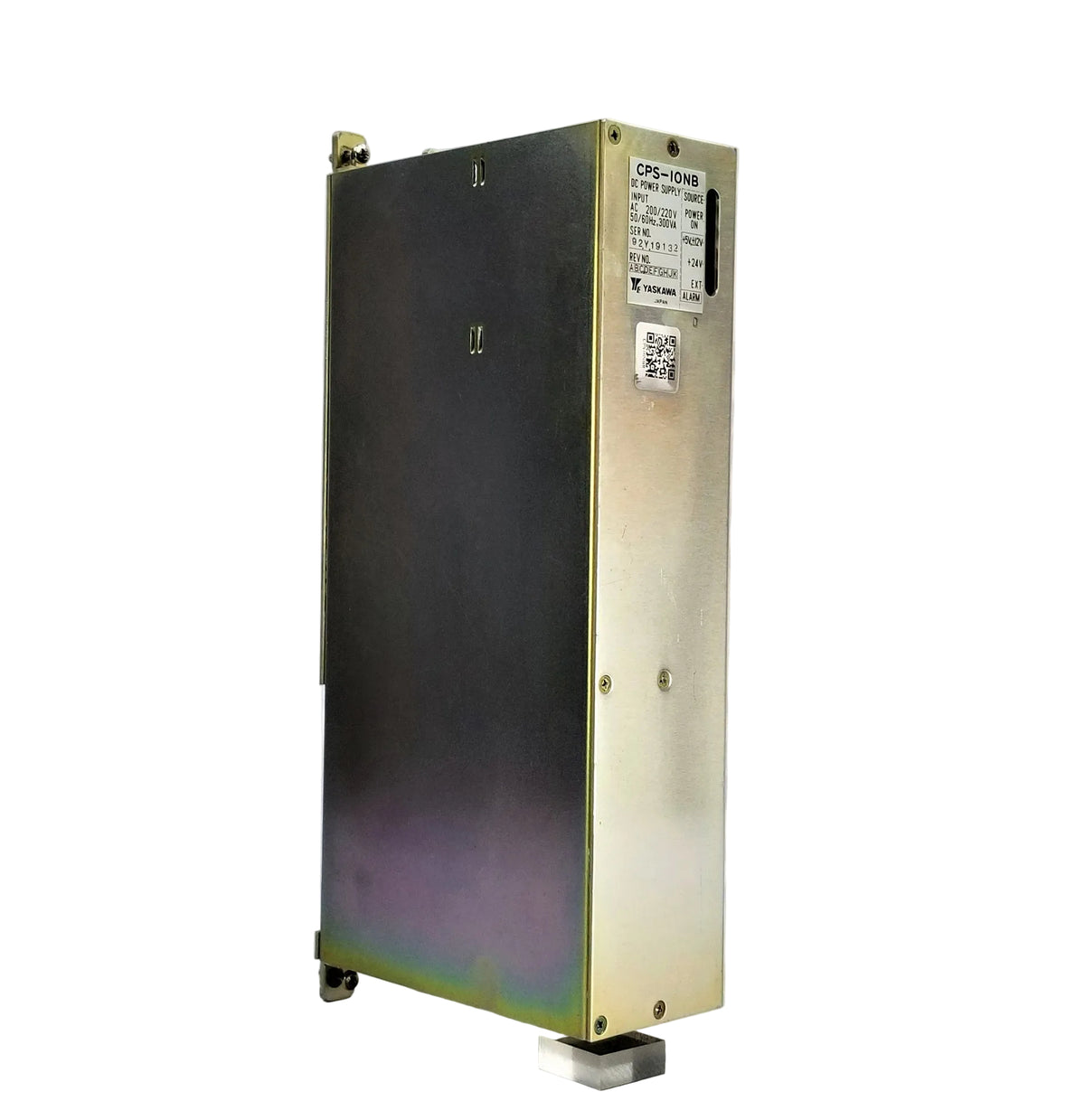

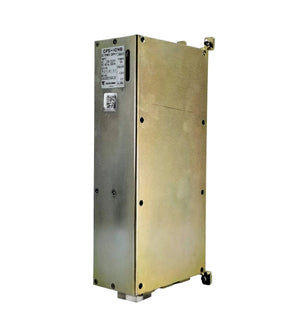

Yaskawa CPS-10NB Industrial CNC Machine DC Power Supply Unit 300 VA
- Regular price
- $2,699.00
- Sale price
- $2,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CPS-10NB
Description
The Yaskawa CPS-10NB is a DC power supply unit designed for CNC machine tools and industrial automation systems. It accepts a 200/220 VAC input at 50/60 Hz and supplies multiple DC voltage rails for compatible control equipment.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Yaskawa |
|
Category |
Power Supplies |
|
Part Number |
CPS-10NB |
|
Subcategory |
DC Power Supplies |
|
Input Voltage |
200/220 VAC |
|
Input Frequency |
50/60 Hz |
|
Input Power Rating |
300 VA |
|
Output Voltage |
+5 V, +12 V, -12 V, +24 V DC |
|
System Application |
CNC machine tools and industrial automation |
|
Product Range |
CPS / YASNAC |
|
Connector References |
CN11, CN12, CN13 |
|
Power Supply Type |
AC-to-DC |
|
Manufacturer Status |
Discontinued, according to supplied information |
|
Weight |
4.75 lbs |
Information About CPS-10NB
The CPS-10NB belongs to the Yaskawa CPS power supply range used in YASNAC CNC control systems. It is designed for installation on a compatible Yaskawa JZNC-RK22 backplane and connects to control equipment through CN11, CN12, and CN13 connectors. The unit provides +5 V, ±12 V, and +24 V DC outputs to support the electrical requirements of connected control components. Its 300 VA input rating and dual-frequency compatibility make it suitable as a replacement power supply when the machine configuration and electrical specifications match.
Key Features:
-
DC Power Supply: Converts AC input power into regulated DC power for CNC control equipment.
-
200/220 VAC Input: Operates with the specified AC supply voltage.
-
50/60 Hz Frequency: Supports both standard power frequencies.
-
300 VA Rating: Provides the specified apparent power input capacity.
-
Multiple DC Outputs: Supplies +5 V, +12 V, -12 V, and +24 V for compatible control circuits.
-
CNC System Compatibility: Designed for use in compatible Yaskawa YASNAC machine control systems.
-
Backplane Installation: Fits the specified Yaskawa JZNC-RK22 backplane configuration.
-
Dedicated Connectors: Uses CN11, CN12, and CN13 for connections to compatible system components.
The CPS-10NB delivers the stable DC power required for CNC control systems and industrial machine automation.
