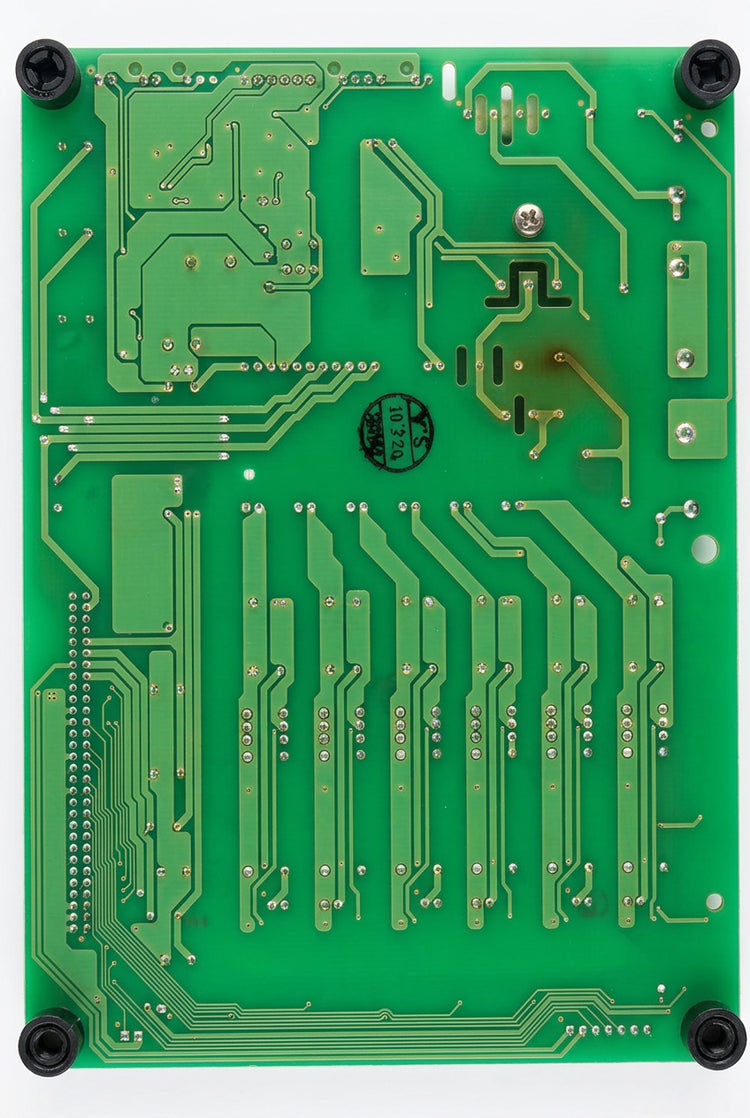

Yaskawa ETC617183 Inverter Gate Driver Board for Compatible E7 and P7 Drives

Yaskawa ETC617183 Inverter Gate Driver Board for Compatible E7 and P7 Drives

Part #: ETC617183 Manufactured by: Yaskawa

Regular price: $1,099.00
Sale price: $1,099.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The ETC617183 is a service replacement board for the gate drive section of specified Yaskawa inverters. Its documented par... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: ETC617183

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for Yaskawa

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: ETC617183

Description / Specifications

Description

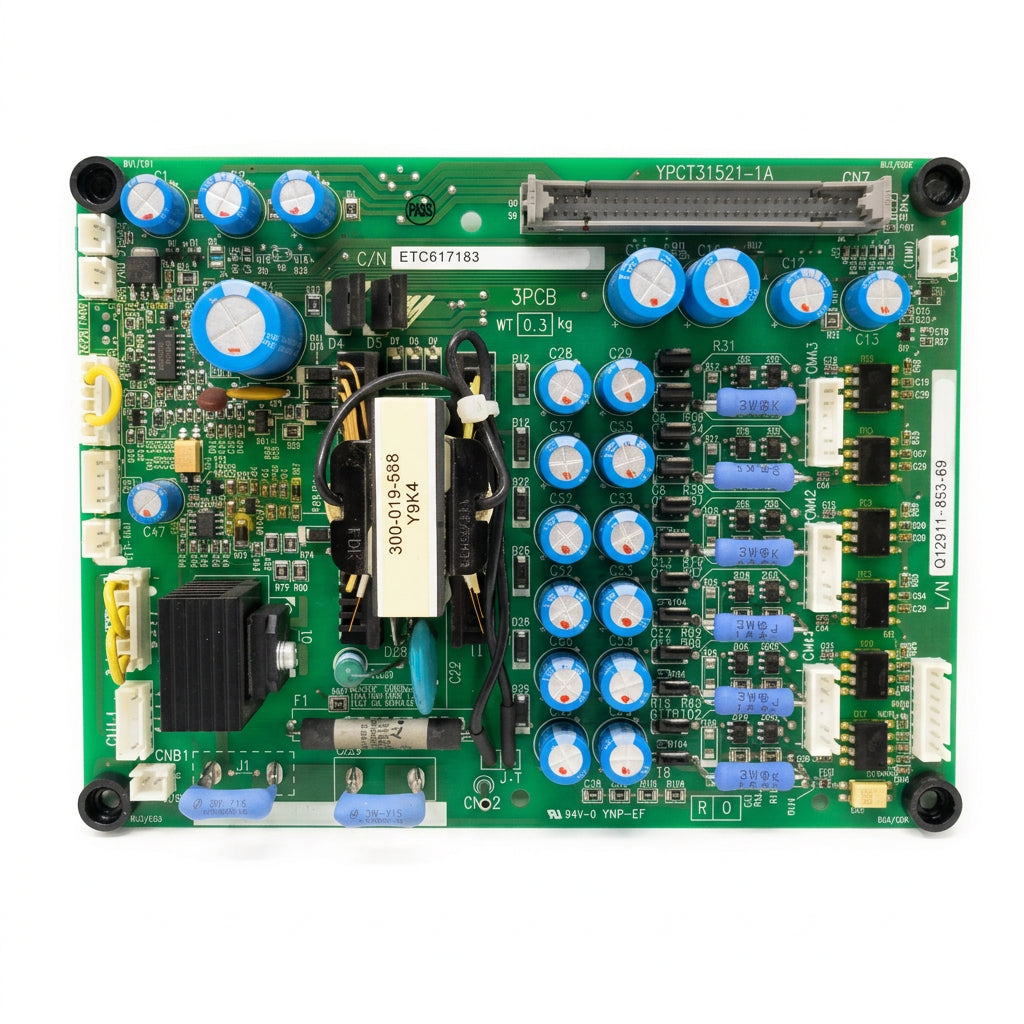

The Yaskawa ETC617183 is a gate driver board used in compatible inverter power stages to control power semiconductor switching. Yaskawa identifies it as a replacement PCB for 460 V, 55 kW drive applications, including the E7 model CIMR-E7U40551A.

Technical Specifications

Condition	New/Never Used Surplus
Brand	Yaskawa
Category	Industrial Automation
Part Number	ETC617183
Subcategory	Inverter Gate Driver Boards
Product Type	Gate drive printed circuit board
Function	Inverter power semiconductor gate control
Applicable Drive Series	Selected E7 and P7 configurations
Applicable Power Stage Voltage	460 V, per manufacturer board description
Applicable Drive Power	55 kW
Diagram Reference	3PCB
Installation Location	Internal inverter power electronics assembly
Compatibility Requirement	Match complete drive model and specification number
Weight	0.75 lb (0.34 kg)

Information About ETC617183

The ETC617183 is an internal printed circuit board associated with selected Yaskawa E7 and P7 inverter configurations. It forms part of the gate drive circuitry within the drive’s power electronics assembly. Yaskawa cross-references the board with number 500-023-988 and diagram designation 3PCB. Replacement compatibility depends on both the complete drive model and specification number shown on the drive nameplate.

Key Features:

Gate Drive Function: Provides circuitry for controlling power semiconductor switching within the inverter.
E7 Application: Listed for the Yaskawa CIMR-E7U40551A drive configuration.
Additional Compatibility: Also appears in the spare parts list for the P7 model CIMR-P7U40551A.
Power Stage Matching: Identified for 460 V, 55 kW inverter applications.
PCB Construction: Integrates gate drive components and electrical connections on a replaceable circuit board.
Service Cross-Reference: Associated with Yaskawa reference number 500-023-988.
Diagram Identification: Designated 3PCB in the applicable manufacturer spare parts lists.

The ETC617183 delivers the reliability and precision required for gate signal control in compatible inverter power stages.
