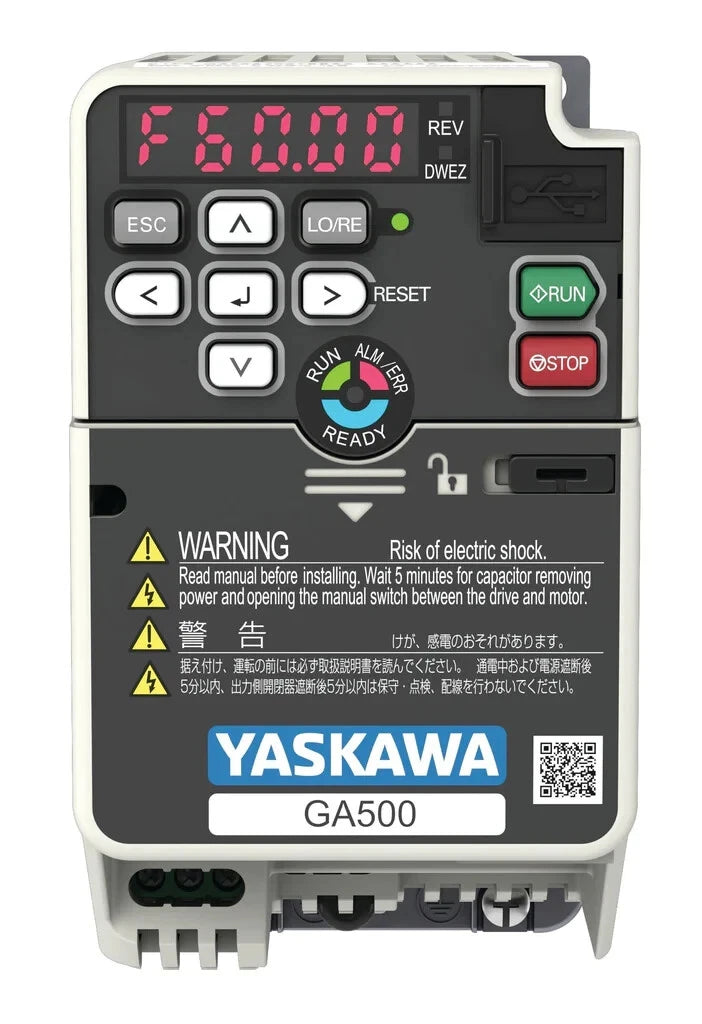

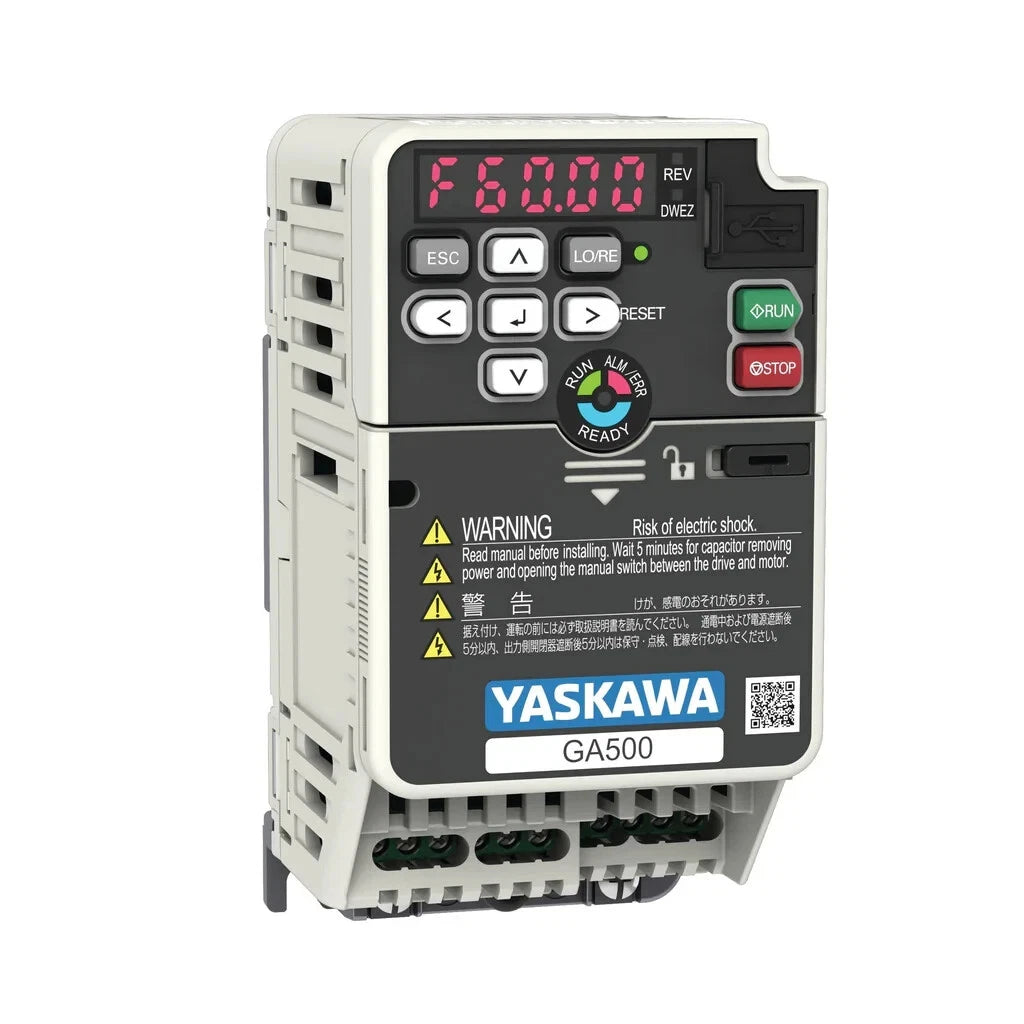

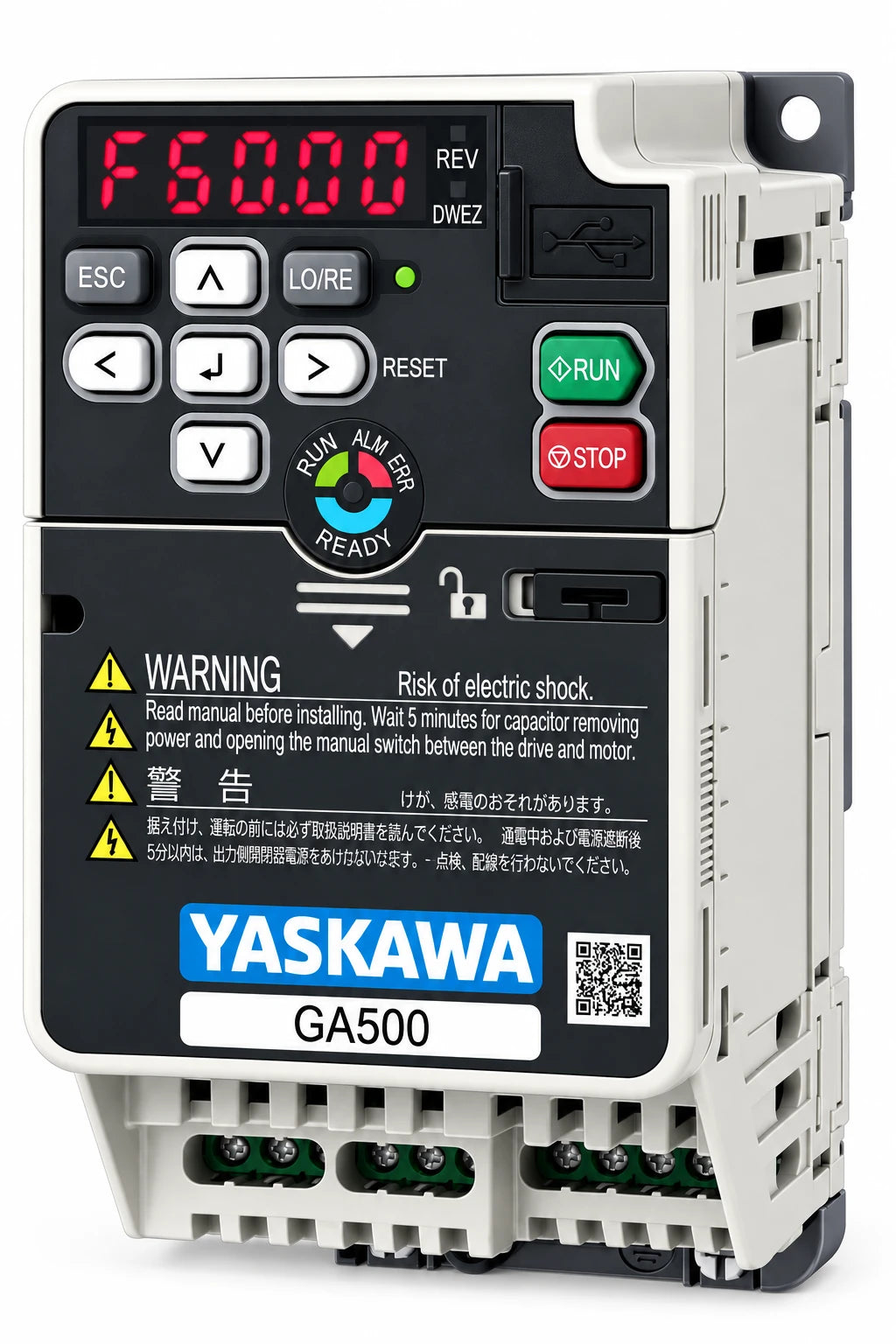

Yaskawa GA50U2021ABA GA500 5 HP AC Drive, 240V Three-Phase
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GA50U2021ABA
Description
The Yaskawa GA50U2021ABA is a GA500 AC drive designed for motor control applications with a 5 HP power rating. It operates from a 200–240 VAC three-phase input and provides up to 17.6 A output current, with heavy-duty operation at 5 HP.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Drives |
| Part Number | GA50U2021ABA |
| Subcategory | Drive |
| Product Series | GA500 |
| Family Series | Yaskawa Drives, GA500 Series |
| Phase | 3 |
| Constant Torque Rating | 5 HP / 17.6 A |
| Variable Torque Rating | 7.5 HP / 21 A |
| Input Voltage | 200–240 VAC |
| Brake | DC Injection, Dynamic Braking |
| Operator Controls | Keypad Included |
| Motor Control | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Protection Rating | IP20 |
| Frequency | 590 Hz |
| Dimensions (H × W × D) | 5.04 × 5.51 × 5.63 in. |
| Dynamic Braking | Included |
| Weight | 6.305 lbs |
Information About GA50U2021ABA
The GA50U2021ABA belongs to the Yaskawa GA500 series of AC drives for industrial motor control. This standard drive is configured without EMC and is suitable for three-phase power applications. Its 240 V class design supports a 5 HP heavy-duty rating and capacity up to 7.5 HP. The drive provides adjustable motor control through its AC drive output and supports an output current rating of up to 17.6 A.
Key Features:
- GA500 AC Drive: Part of the Yaskawa GA500 series for AC motor control.
- 5 HP Rating: Provides a 5 HP (3.7 kW) heavy-duty power rating.
- Extended Capacity: Supports applications with capacity up to 7.5 HP.
- Input Voltage: Designed for 200–240 VAC three-phase power.
- Output Current: Provides up to 17.6 A output current.
- Non-EMC Configuration: Supplied without EMC functionality.
- Standard Drive: Configured as a standard GA500 drive for compatible motor applications.
The GA50U2021ABA delivers the reliability and precision required for industrial AC motor control and variable-speed drive applications.
