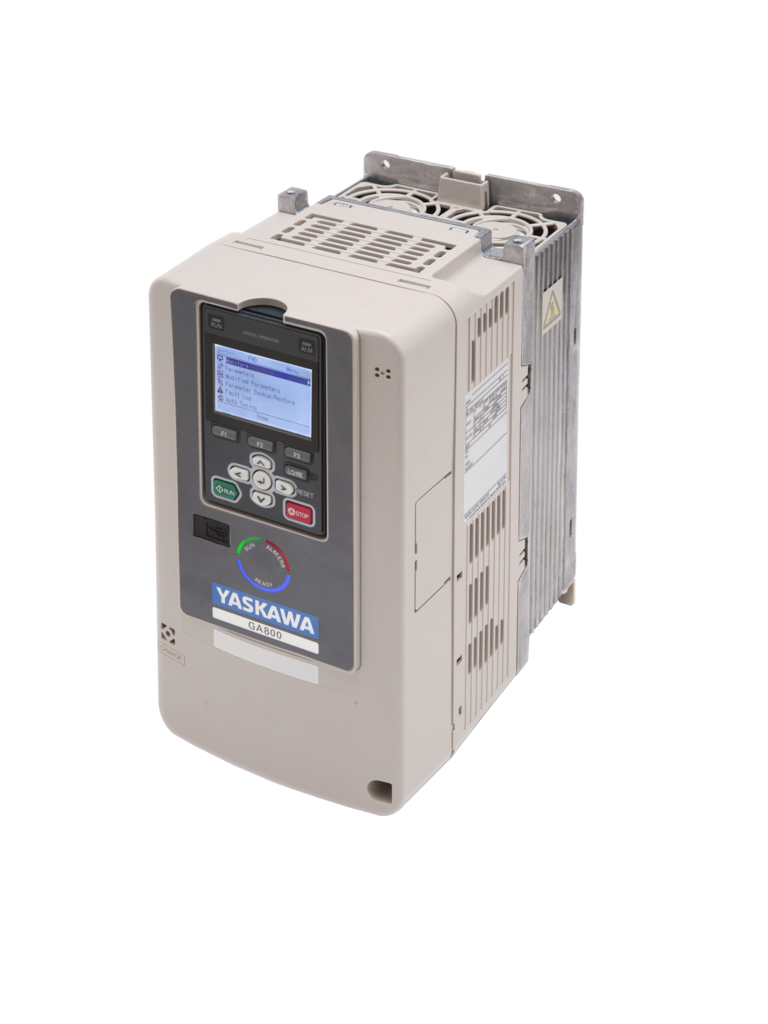

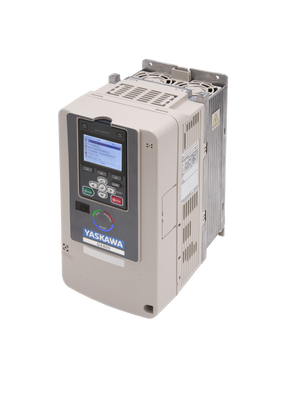

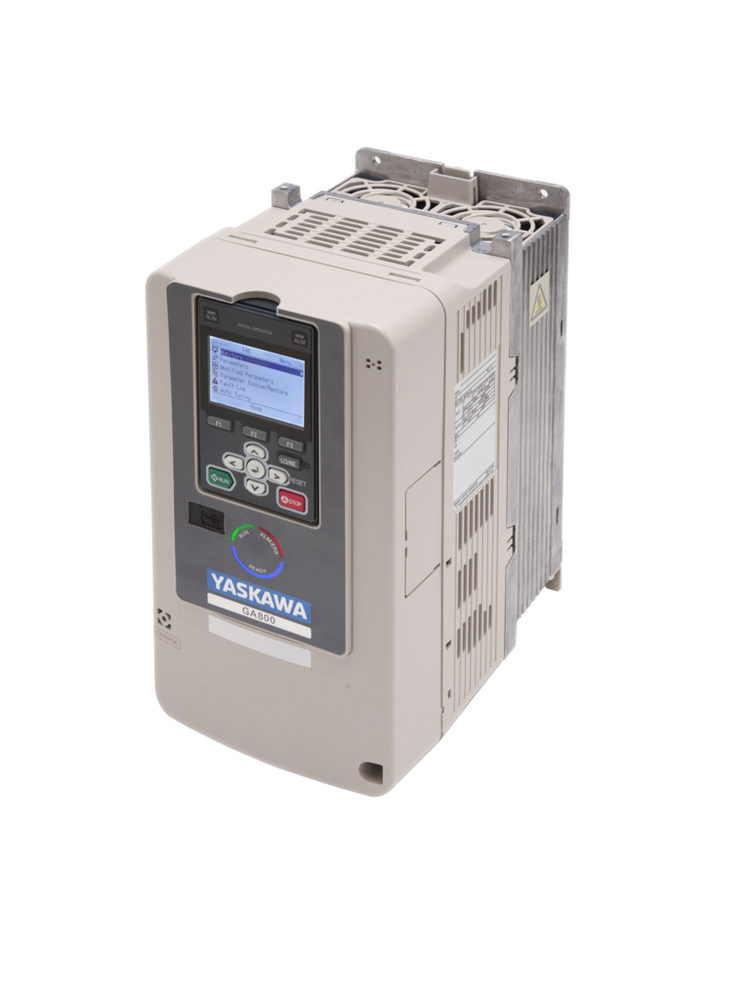

Yaskawa GA80U2004ABM 1 HP GA800 Variable Frequency Drive
- Regular price
- $1,025.00
- Sale price
- $1,025.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GA80U2004ABM
Description
The Yaskawa GA80U2004ABM is a GA800 series variable frequency drive designed to control AC motor speed in industrial applications. It supports 1 HP normal-duty operation, with a rated output current of 4.2 A and a 240 V three-phase supply, making it suitable for compact motor-driven equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Variable Frequency Drives |
| Part Number | GA80U2004ABM |
| Subcategory | AC Motor Drives |
| Product Series | GA800 |
| Product Type | Variable Frequency Drive |
| Normal-Duty Motor Rating | 1 HP |
| Normal-Duty Output Current | 4.2 A |
| Heavy-Duty Motor Rating | 0.75 HP |
| Heavy-Duty Output Current | 3.5 A |
| Input Voltage Class | 200–240 V AC |
| Input Phase | Three-phase |
| Enclosure Type | IP20 protected chassis |
| Frame Size | Frame 1 |
| Dimensions (H × W × D) | 10.24 × 5.51 × 6.93 in (260 × 140 × 176 mm) |
| Weight | 7.7 lb |
Information About GA80U2004ABM
The GA80U2004ABM belongs to Yaskawa’s GA800 general-purpose industrial AC drive series. It varies the output frequency and voltage to regulate compatible AC motor speed according to the requirements of the connected equipment. The model is rated for 240 V three-phase systems, with a 4.2 A normal-duty rating and a 3.5 A heavy-duty rating. Its IP20 protected-chassis design is intended for installation in a suitable electrical enclosure, with optional enclosure configurations available for the GA800 family.
Key Features:
-
Motor Power Rating: Supports 1 HP normal-duty motor applications.
-
Normal-Duty Output Current: Rated at 4.2 A.
-
Heavy-Duty Output Current: Rated at 3.5 A for applicable heavy-duty loads.
-
Power Supply: Designed for 240 V three-phase AC systems.
-
Variable Frequency Control: Adjusts output frequency to regulate AC motor speed.
-
Product Series: Part of Yaskawa’s GA800 general-purpose drive family.
-
Enclosure Protection: IP20 protected-chassis configuration for installation in an electrical cabinet.
-
Industrial Integration: Suitable for compatible motor-driven machinery and automation equipment.
The GA80U2004ABM delivers the motor speed regulation required for industrial machinery, compact drive systems, and general-purpose AC motor applications.
Description
The Yaskawa GA80U2004ABM is a GA800 series variable frequency drive designed to control AC motor speed in industrial applications. It supports 1 HP normal-duty operation, with a rated output current of 4.2 A and a 240 V three-phase supply, making it suitable for compact motor-driven equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Variable Frequency Drives |
| Part Number | GA80U2004ABM |
| Subcategory | AC Motor Drives |
| Product Series | GA800 |
| Product Type | Variable Frequency Drive |
| Normal-Duty Motor Rating | 1 HP |
| Normal-Duty Output Current | 4.2 A |
| Heavy-Duty Motor Rating | 0.75 HP |
| Heavy-Duty Output Current | 3.5 A |
| Input Voltage Class | 200–240 V AC |
| Input Phase | Three-phase |
| Enclosure Type | IP20 protected chassis |
| Frame Size | Frame 1 |
| Dimensions (H × W × D) | 10.24 × 5.51 × 6.93 in (260 × 140 × 176 mm) |
| Weight | 7.7 lb |
Information About GA80U2004ABM
The GA80U2004ABM belongs to Yaskawa’s GA800 general-purpose industrial AC drive series. It varies the output frequency and voltage to regulate compatible AC motor speed according to the requirements of the connected equipment. The model is rated for 240 V three-phase systems, with a 4.2 A normal-duty rating and a 3.5 A heavy-duty rating. Its IP20 protected-chassis design is intended for installation in a suitable electrical enclosure, with optional enclosure configurations available for the GA800 family.
Key Features:
-
Motor Power Rating: Supports 1 HP normal-duty motor applications.
-
Normal-Duty Output Current: Rated at 4.2 A.
-
Heavy-Duty Output Current: Rated at 3.5 A for applicable heavy-duty loads.
-
Power Supply: Designed for 240 V three-phase AC systems.
-
Variable Frequency Control: Adjusts output frequency to regulate AC motor speed.
-
Product Series: Part of Yaskawa’s GA800 general-purpose drive family.
-
Enclosure Protection: IP20 protected-chassis configuration for installation in an electrical cabinet.
-
Industrial Integration: Suitable for compatible motor-driven machinery and automation equipment.
The GA80U2004ABM delivers the motor speed regulation required for industrial machinery, compact drive systems, and general-purpose AC motor applications.
