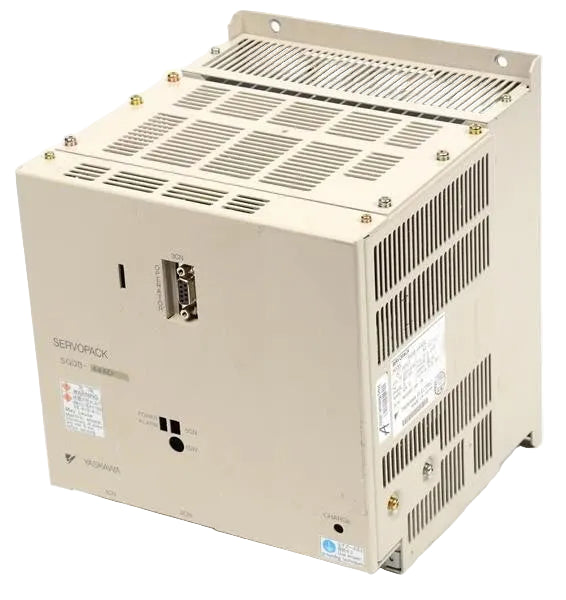

Yaskawa SGDB-44ADG Sigma 5.9HP 24A 200-230VAC 3-Phase SERVOPACK Servo Drive
- Regular price
- $2,092.00
- Sale price
- $2,092.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SGDB-44ADG
Description
The Yaskawa SGDB-44ADG is a Sigma Series SERVOPACK servo amplifier designed for high-performance control of compatible Yaskawa AC servo motors in industrial automation systems. Yaskawa part number SGDB-44ADG operates from 200–230 VAC three-phase power and is rated at approximately 5.9 HP, with 24 A continuous and 32.8 A maximum current capability for demanding machine-axis applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Motors & Motion Control |
| Part Number | SGDB-44ADG |
| Subcategory | Servo Drives |
| Series | Sigma / SGDB Series |
| Product Type | AC SERVOPACK Servo Amplifier |
| Rated Power | Approx. 5.9 HP / 4.4 kW |
| Input Voltage | 200–230 VAC |
| Input Phase | 3-Phase |
| Input Frequency | 50/60 Hz |
| Rated Current | Approx. 24 A |
| Maximum Current | Approx. 32.8 A |
| Control Modes | Position, Speed and Torque Control |
| Speed Command | Analog Voltage Reference / Internally Set Speeds |
| Motor Compatibility | Compatible Yaskawa Sigma Series AC Servo Motors |
| Configuration Interface | Compatible Yaskawa Digital Operator |
| Product Status | Discontinued by Manufacturer / Legacy Series |
| Weight | Approx. 6.5 kg (14.3 lb) |
Information About SGDB-44ADG
The SGDB-44ADG is a Yaskawa Sigma Series SERVOPACK servo drive developed for use with compatible Sigma AC servo motors and multi-axis automation systems. Its control architecture supports speed, torque, and position-control applications, while an analog voltage reference can be used for commanded speed operation. Parameters and operating settings can be configured through a compatible Yaskawa digital operator, simplifying commissioning and machine adjustments. Although the SGDB Series is discontinued by the manufacturer, these drives remain applicable as replacement components for legacy Yaskawa servo systems installed in CNC machinery, robotics, packaging equipment, material handling systems, and automated production lines.
Key Features:
- Sigma Series platform: Designed as a servo amplifier for compatible Yaskawa Sigma Series AC servo systems.
- 5.9 HP power class: Provides approximately 5.9 HP of servo-drive capacity for demanding industrial motion applications.
- Three-phase input: Designed for 200–230 VAC three-phase input power at 50/60 Hz.
- Current capacity: Rated for approximately 24 A continuous current with up to 32.8 A maximum current.
- Multiple control modes: Supports position, speed, and torque-control applications according to system configuration.
- Analog speed reference: Accepts an analog voltage command for external servo speed control.
- Preset speed capability: Supports internally configured speed settings for applications requiring predefined operating speeds.
- Digital operator support: Parameters, operating settings, and diagnostic information can be accessed using a compatible Yaskawa digital operator.
- Closed-loop servo operation: Uses compatible motor feedback to maintain accurate motion and respond to changing machine loads.
- Multi-drive applications: Suitable for equipment incorporating multiple coordinated servo axes.
- Compact SERVOPACK construction: Designed for integration into industrial machine control cabinets and existing automation systems.
- Legacy system support: Useful as a replacement or service component for machinery retaining discontinued Yaskawa SGDB servo architecture.
The SGDB-44ADG delivers the reliability and precision required for industrial positioning, speed regulation, torque control, and coordinated machine-axis applications.
Description
The Yaskawa SGDB-44ADG is a Sigma Series SERVOPACK servo amplifier designed for high-performance control of compatible Yaskawa AC servo motors in industrial automation systems. Yaskawa part number SGDB-44ADG operates from 200–230 VAC three-phase power and is rated at approximately 5.9 HP, with 24 A continuous and 32.8 A maximum current capability for demanding machine-axis applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Motors & Motion Control |
| Part Number | SGDB-44ADG |
| Subcategory | Servo Drives |
| Series | Sigma / SGDB Series |
| Product Type | AC SERVOPACK Servo Amplifier |
| Rated Power | Approx. 5.9 HP / 4.4 kW |
| Input Voltage | 200–230 VAC |
| Input Phase | 3-Phase |
| Input Frequency | 50/60 Hz |
| Rated Current | Approx. 24 A |
| Maximum Current | Approx. 32.8 A |
| Control Modes | Position, Speed and Torque Control |
| Speed Command | Analog Voltage Reference / Internally Set Speeds |
| Motor Compatibility | Compatible Yaskawa Sigma Series AC Servo Motors |
| Configuration Interface | Compatible Yaskawa Digital Operator |
| Product Status | Discontinued by Manufacturer / Legacy Series |
| Weight | Approx. 6.5 kg (14.3 lb) |
Information About SGDB-44ADG
The SGDB-44ADG is a Yaskawa Sigma Series SERVOPACK servo drive developed for use with compatible Sigma AC servo motors and multi-axis automation systems. Its control architecture supports speed, torque, and position-control applications, while an analog voltage reference can be used for commanded speed operation. Parameters and operating settings can be configured through a compatible Yaskawa digital operator, simplifying commissioning and machine adjustments. Although the SGDB Series is discontinued by the manufacturer, these drives remain applicable as replacement components for legacy Yaskawa servo systems installed in CNC machinery, robotics, packaging equipment, material handling systems, and automated production lines.
Key Features:
- Sigma Series platform: Designed as a servo amplifier for compatible Yaskawa Sigma Series AC servo systems.
- 5.9 HP power class: Provides approximately 5.9 HP of servo-drive capacity for demanding industrial motion applications.
- Three-phase input: Designed for 200–230 VAC three-phase input power at 50/60 Hz.
- Current capacity: Rated for approximately 24 A continuous current with up to 32.8 A maximum current.
- Multiple control modes: Supports position, speed, and torque-control applications according to system configuration.
- Analog speed reference: Accepts an analog voltage command for external servo speed control.
- Preset speed capability: Supports internally configured speed settings for applications requiring predefined operating speeds.
- Digital operator support: Parameters, operating settings, and diagnostic information can be accessed using a compatible Yaskawa digital operator.
- Closed-loop servo operation: Uses compatible motor feedback to maintain accurate motion and respond to changing machine loads.
- Multi-drive applications: Suitable for equipment incorporating multiple coordinated servo axes.
- Compact SERVOPACK construction: Designed for integration into industrial machine control cabinets and existing automation systems.
- Legacy system support: Useful as a replacement or service component for machinery retaining discontinued Yaskawa SGDB servo architecture.
The SGDB-44ADG delivers the reliability and precision required for industrial positioning, speed regulation, torque control, and coordinated machine-axis applications.
