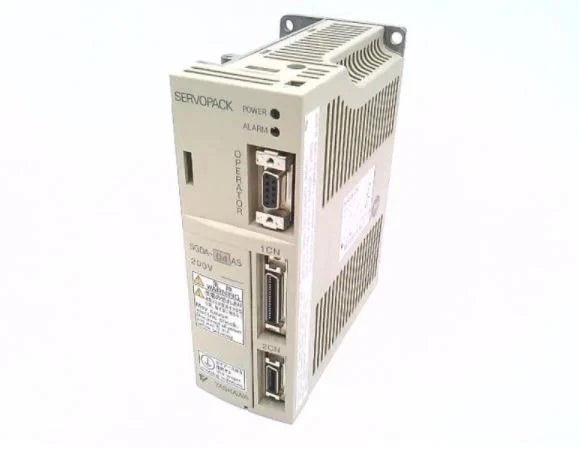

Yaskawa SGDS-01A31AY566 Sigma III 100W 200V AC SERVOPACK Servo Drive
- Regular price
- $1,967.00
- Sale price
- $1,967.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SGDS-01A31AY566
Description
The Yaskawa SGDS-01A31AY566 is a Sigma III Series SERVOPACK servo drive designed for precise closed-loop control of compatible Yaskawa AC servo motors. Yaskawa part number SGDS-01A31AY566 is a 200 V class, 100 W servo amplifier that supports high-response industrial positioning and motion-control applications
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Motors & Motion Control |
| Part Number | SGDS-01A31AY566 |
| Subcategory | Servo Drives |
| Series | Sigma III / SGDS Series |
| Product Type | AC SERVOPACK Servo Drive |
| Applicable Motor Capacity | 100 W / 0.1 kW |
| Voltage Class | 200 V Class |
| Main Circuit Supply | 200–230 VAC, 50/60 Hz |
| Continuous Output Current | Approx. 0.91 Arms |
| Maximum Output Current | Approx. 2.8 Arms |
| Power Control Method | Full-Wave Rectification / IGBT-PWM |
| Feedback System | Serial Encoder Feedback |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Ambient Humidity | 90% RH or Less, Non-Condensing |
| Mounting | Base-Mounted |
| Applied Materials Part Number | 0190-32917 |
| Product Status | Discontinued / Legacy Series |
| Weight | Approx. 0.8 kg (1.8 lb) |
Information About SGDS-01A31AY566
The SGDS-01A31AY566 is a Yaskawa Sigma III Series SGDS SERVOPACK configured for a 100 W applicable servomotor capacity. Its IGBT-PWM power stage provides controlled motor output while serial encoder feedback enables accurate monitoring of motor position and speed. The SGDS platform incorporates dynamic braking, regenerative processing provisions, diagnostic monitoring, and protection against conditions such as overcurrent, overvoltage, overload, overspeed, encoder faults, and overheating. This specific SGDS-01A31AY566 configuration is also found under Applied Materials part number 0190-32917, making it relevant for servicing compatible semiconductor-processing and specialized automation equipment as well as legacy Yaskawa motion systems.
Key Features:
- Sigma III architecture: Part of Yaskawa's SGDS family of high-response AC SERVOPACK servo amplifiers.
- 100 W capacity: Designed for compatible servo motors with a maximum applicable capacity of 0.1 kW.
- 200 V class design: Uses a 200–230 VAC class power supply for compatible industrial servo installations.
- IGBT-PWM control: Uses full-wave rectification and IGBT pulse-width modulation for controlled sinusoidal motor drive.
- Continuous output current: Provides approximately 0.91 Arms continuous output in the standard SGDS-01 200 V configuration.
- Peak output capability: Supports approximately 2.8 Arms maximum output current for transient servo demands.
- Serial encoder feedback: Supports high-resolution serial encoder feedback for closed-loop position and speed monitoring.
- High dynamic response: Designed for rapid acceleration, deceleration, positioning, and repetitive machine cycles.
- Dynamic braking: SGDS architecture provides dynamic braking during applicable servo-off, alarm, or power-off conditions.
- Protective monitoring: Includes protection for overcurrent, overvoltage, undervoltage, overload, overheating, overspeed, and encoder-related faults.
- Compact installation: Base-mounted construction supports integration into industrial machine control cabinets.
- Legacy equipment support: Suitable as a replacement component for compatible machinery retaining Yaskawa Sigma III servo architecture.
The SGDS-01A31AY566 delivers the reliability and precision required for semiconductor equipment, automated positioning, machine-axis control, and industrial servo applications.
