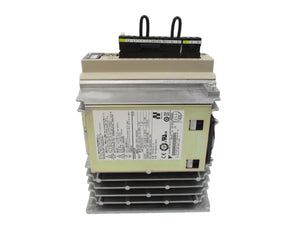

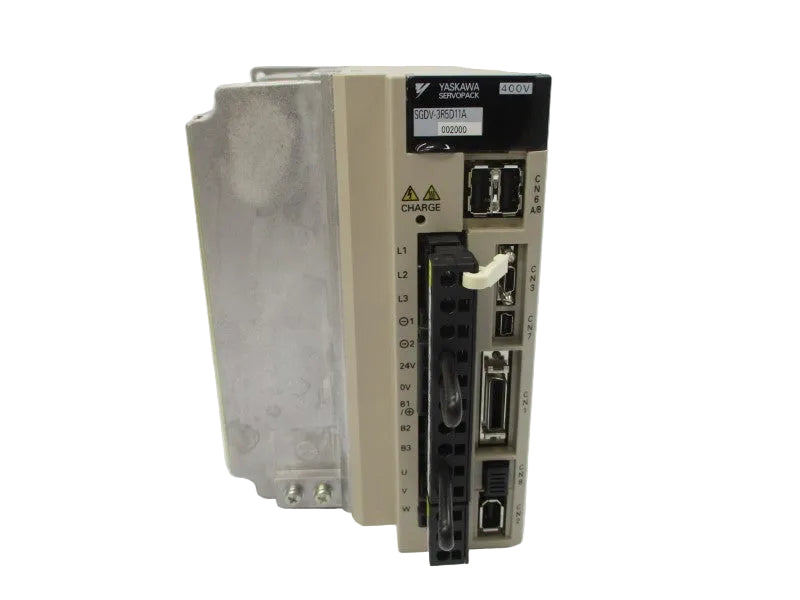

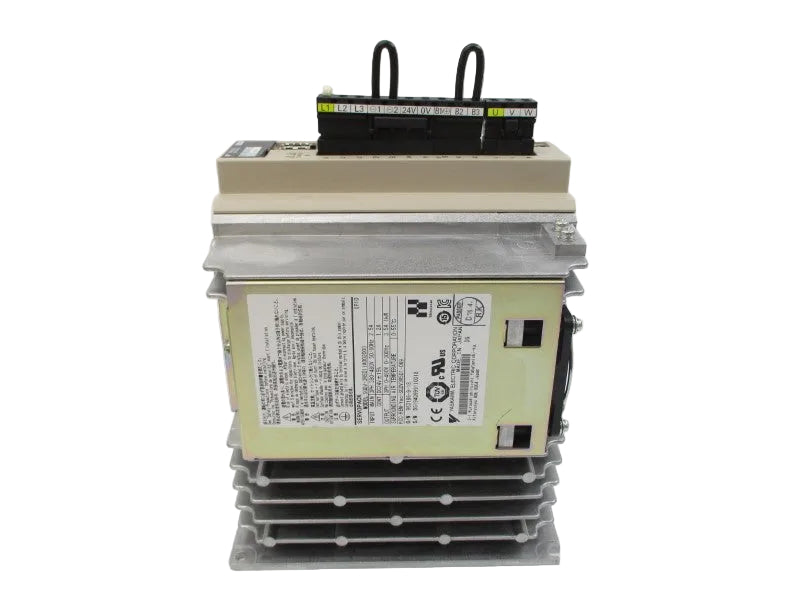

Yaskawa SGDV-3R5D11A002000 Sigma-5 1kW 400V Servo Drive
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SGDV-3R5D11A002000
Description
The Yaskawa SGDV-3R5D11A002000 is a Sigma-5 SERVOPACK servo drive designed for precise motion control in industrial automation systems. Rated at 1.0 kW, it operates with three-phase 380–480 VAC input and uses MECHATROLINK-II communication to control compatible rotary servo motors.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Yaskawa |
|
Category |
Servo Products |
|
Part Number |
SGDV-3R5D11A002000 |
|
Subcategory |
Servo Drive/Servo Control |
|
Product Series |
Sigma-5 |
|
Rated Output Power |
1.0 kW |
|
Main Circuit Input Voltage |
380–480 VAC |
|
Main Circuit Input Phases |
3-phase |
|
Main Circuit Input Frequency |
50/60 Hz |
|
Main Circuit Input Current |
2.5 A |
|
Control Circuit Input |
24 VDC ±15%, 1.2 A |
|
Output Voltage |
0–480 VAC |
|
Output Frequency Range |
0–300 Hz |
|
Continuous Output Current |
3.5 A |
|
Communication Interface |
MECHATROLINK-II |
|
Motor Compatibility |
Rotary servo motors |
|
Mounting Type |
Base-mounted |
|
Finish |
Standard varnish |
|
Enclosure Rating |
IP10 (as supplied; verify installation requirements) |
|
Operating Temperature |
0°C to +55°C |
|
Weight |
6.00 lbs |
Information About SGDV-3R5D11A002000
The SGDV-3R5D11A002000 belongs to Yaskawa’s Sigma-5 series of AC servo amplifiers. It is designed for rotary servo motor applications and supports MECHATROLINK-II communication for integration with compatible motion controllers. The main circuit operates from a three-phase AC supply, while the control circuit uses a separate 24 VDC input according to the supplied specifications. Its standard varnish finish and base-mounted design support installation in compatible industrial control panels.
Key Features:
-
1.0 kW Output Rating: Supports compatible rotary servo motor applications requiring 1.0 kW power.
-
Sigma-5 SERVOPACK: Part of Yaskawa’s Sigma-5 family of servo amplifiers.
-
Three-Phase AC Input: Accepts the specified three-phase industrial power supply.
-
380–480 VAC Supply: Designed for compatible systems operating within the listed input voltage range.
-
3.5 A Continuous Output: Provides the specified continuous output current for compatible servo motors.
-
MECHATROLINK-II Communication: Supports communication with compatible motion controllers and automation systems.
-
Rotary Motor Compatibility: Designed for control of compatible rotary servo motors.
-
Separate Control Circuit Supply: Uses a listed 24 VDC control circuit input for the specified configuration.
The SGDV-3R5D11A002000 delivers precise servo control and communication capabilities required for compatible industrial motion systems.
