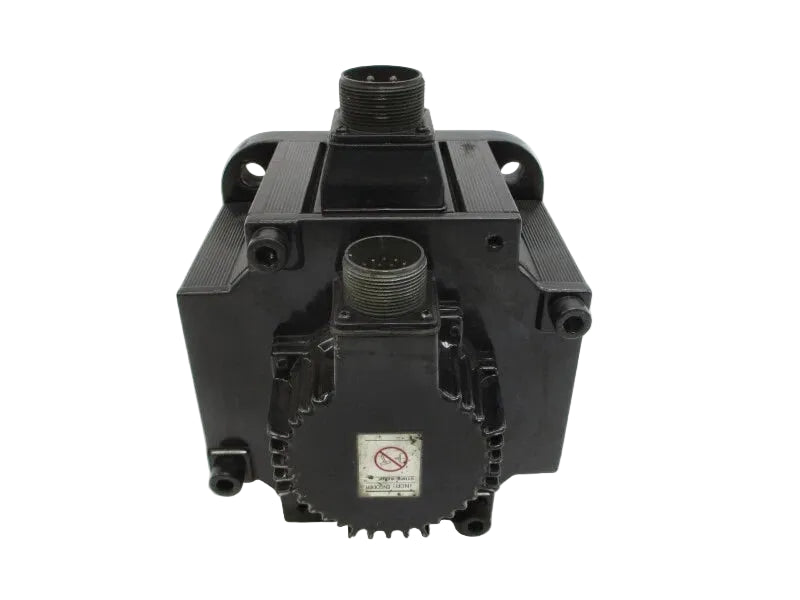

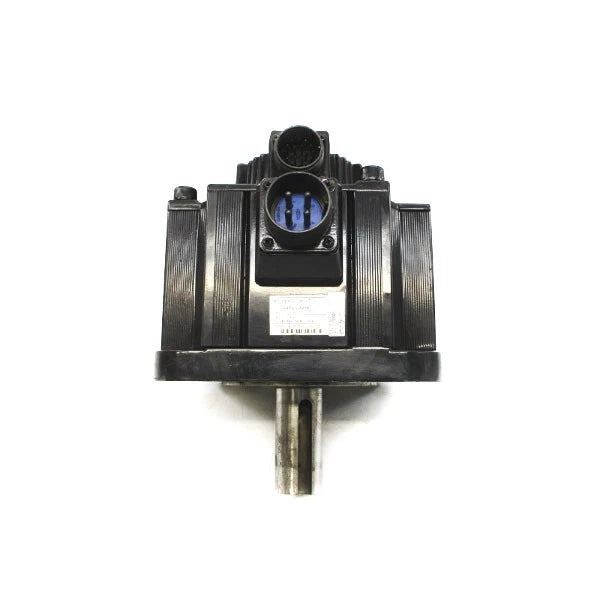

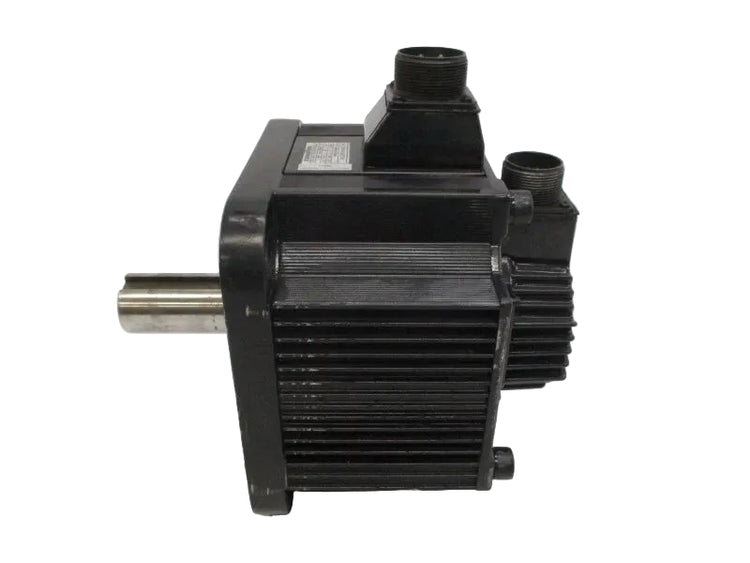

Yaskawa SGMG-20A2AB AC Servo Motor with Encoder and Brake
- Regular price
- $1,222.00
- Sale price
- $1,222.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SGMG-20A2AB
Description
The Yaskawa SGMG-20A2AB is a 1.8 kW AC servo motor for controlled rotary motion in compatible industrial machinery. It has a rated speed of 1500 rpm and encoder feedback for operation with a matching servo amplifier.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Servo Products |
| Part Number | SGMG-20A2AB |
| Subcategory | Servo Motor |
| Series | Sigma |
| Motor Family | SGMG |
| Motor Type | AC Rotary Servo Motor |
| Rated Output Power | 1.8 kW / 1800 W |
| Voltage Class | 200 V class |
| Rated Speed | 1500 rpm |
| Rated Torque | 11.5 N·m |
| Rated Current | 16.7 A RMS |
| Encoder Type | Incremental |
| Encoder Resolution | 8192 P/R |
| Holding Brake Supply | 90 V DC |
| Excitation Type | Permanent magnet |
| Mounting Type | Flange mounted |
| Protection Rating | IP67, excluding shaft-through section |
| Ambient Operating Temperature | 0 to +40°C |
| Weight | 50.00 lbs |
Information About SGMG-20A2AB
The SGMG-20A2AB is part of Yaskawa’s Sigma series SGMG servomotor family. Its permanent-magnet construction uses a 200 V class motor configuration. Yaskawa’s model designation identifies an 8192 P/R incremental encoder and a 90 V DC holding brake for this variant. Installation requires matching the motor’s mechanical interface, feedback connections, brake supply, and servo amplifier requirements.
Key Features:
- Rated Output: Delivers 1.8 kW of mechanical power under manufacturer-specified operating conditions.
- Rated Speed: Operates at a nominal speed of 1500 rpm.
- Continuous Torque: Provides a rated torque of 11.5 N·m.
- Rated Current: Specifies a continuous motor current of 16.7 A RMS.
- Incremental Encoder: Uses an 8192 P/R encoder for position and speed feedback.
- Holding Brake: Includes a 90 V DC brake for holding the motor shaft when appropriately controlled.
- Flange Mounting: Supports installation through the motor’s mounting flange.
- Enclosure Protection: Provides IP67 protection, excluding the shaft-through section.
The SGMG-20A2AB delivers the reliability and precision required for controlled machine axis movement in compatible industrial servo systems.
