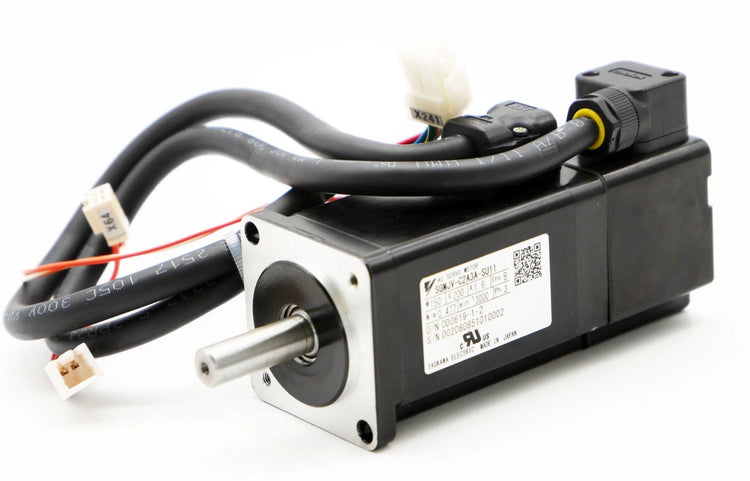

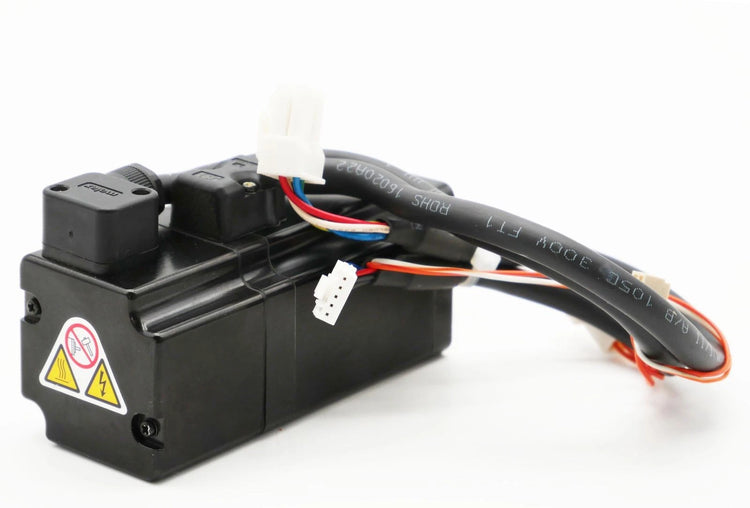

Yaskawa SGMJV-C2A3A-SU11 Sigma-5 AC Servo Motor
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SGMJV-C2A3A-SU11
Description
The Yaskawa SGMJV-C2A3A-SU11 is a 150 W Sigma-5 brushless AC servo motor for positioning and speed control in compatible industrial machinery. Its SGMJV-C2A motor platform has a rated speed of 3000 rpm and a continuous rated torque of 0.477 N·m.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Servo Products |
| Part Number | SGMJV-C2A3A-SU11 |
| Subcategory | Servo Motor |
| Series | Sigma-5 |
| Motor Family | SGMJV |
| Motor Type | Brushless AC Rotary Servo Motor |
| Inertia Classification | Medium inertia |
| Rated Output Power | 150 W / 0.15 kW |
| Voltage Class | 200 V class |
| Rated Speed | 3000 rpm |
| Maximum Speed | 6000 rpm |
| Rated Torque | 0.477 N·m |
| Instantaneous Maximum Torque | 1.67 N·m |
| Rated Current | 1.6 A RMS |
| Instantaneous Maximum Current | 5.7 A RMS |
| Feedback Interface | Serial encoder |
| Standard Enclosure Protection | IP65, excluding shaft opening; verify SU11 configuration |
| Standard Operating Temperature | 0 to +40°C |
| Weight | 1.48 lbs |
Information About SGMJV-C2A3A-SU11
The SGMJV-C2A3A-SU11 is part of Yaskawa’s SGMJV family of medium-inertia, small-capacity rotary servomotors. Its permanent-magnet construction operates with a compatible servo amplifier to provide controlled shaft movement. Serial encoder feedback supplies motor position information to the servo system. The complete SU11 configuration must be matched against the original motor’s mounting, shaft, connector, and option requirements before replacement.
Key Features:
- Rated Output: Provides 150 W of mechanical power for compatible industrial motion applications.
- Medium-Inertia Design: Uses the SGMJV motor platform for small-capacity servo axes.
- Rated Speed: Supports a nominal operating speed of 3000 rpm.
- Maximum Speed: The SGMJV-C2A platform specifies a maximum speed of 6000 rpm.
- Continuous Torque: Provides a rated torque of 0.477 N·m under manufacturer-specified conditions.
- Peak Torque: Supports an instantaneous maximum torque rating of 1.67 N·m.
- Encoder Feedback: Supplies serial position feedback for closed-loop operation with a compatible amplifier.
- Enclosure Protection: The standard SGMJV construction provides IP65 protection, excluding the shaft opening.
The SGMJV-C2A3A-SU11 delivers the reliability and precision required for controlled rotary motion in compatible industrial automation systems.
